A/C Evaporator Temperature Sensor Circuit: Tacoma

For A/C evaporator temperature sensor inspection, see Fig 1.

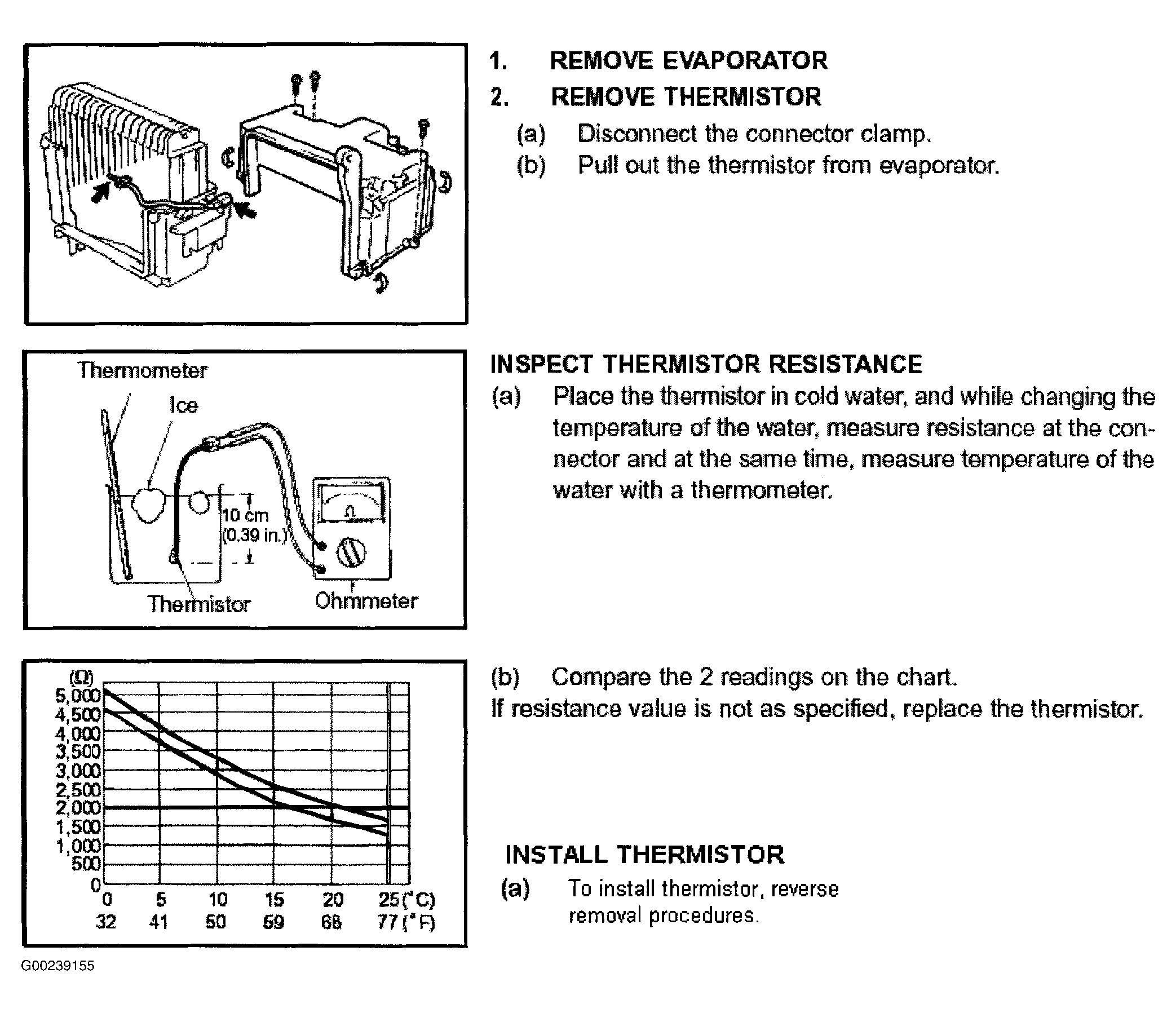

Fig 1: A/C Evaporator Temperature Sensor Inspection (Tacoma)
G00239155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
