Combination Meter - Diagnostics: Location

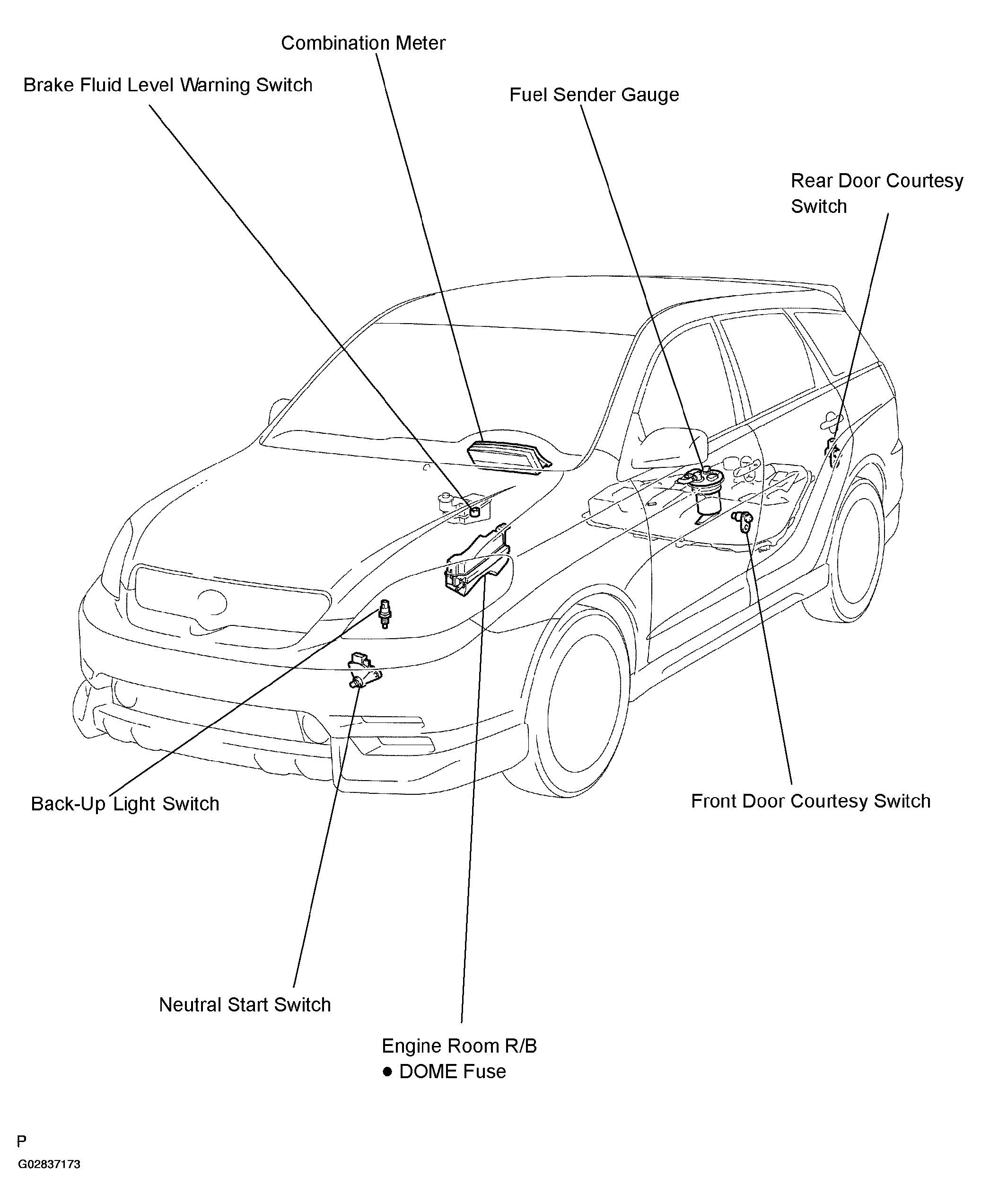

Fig 1: Identifying Combination Meter & Electrical Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

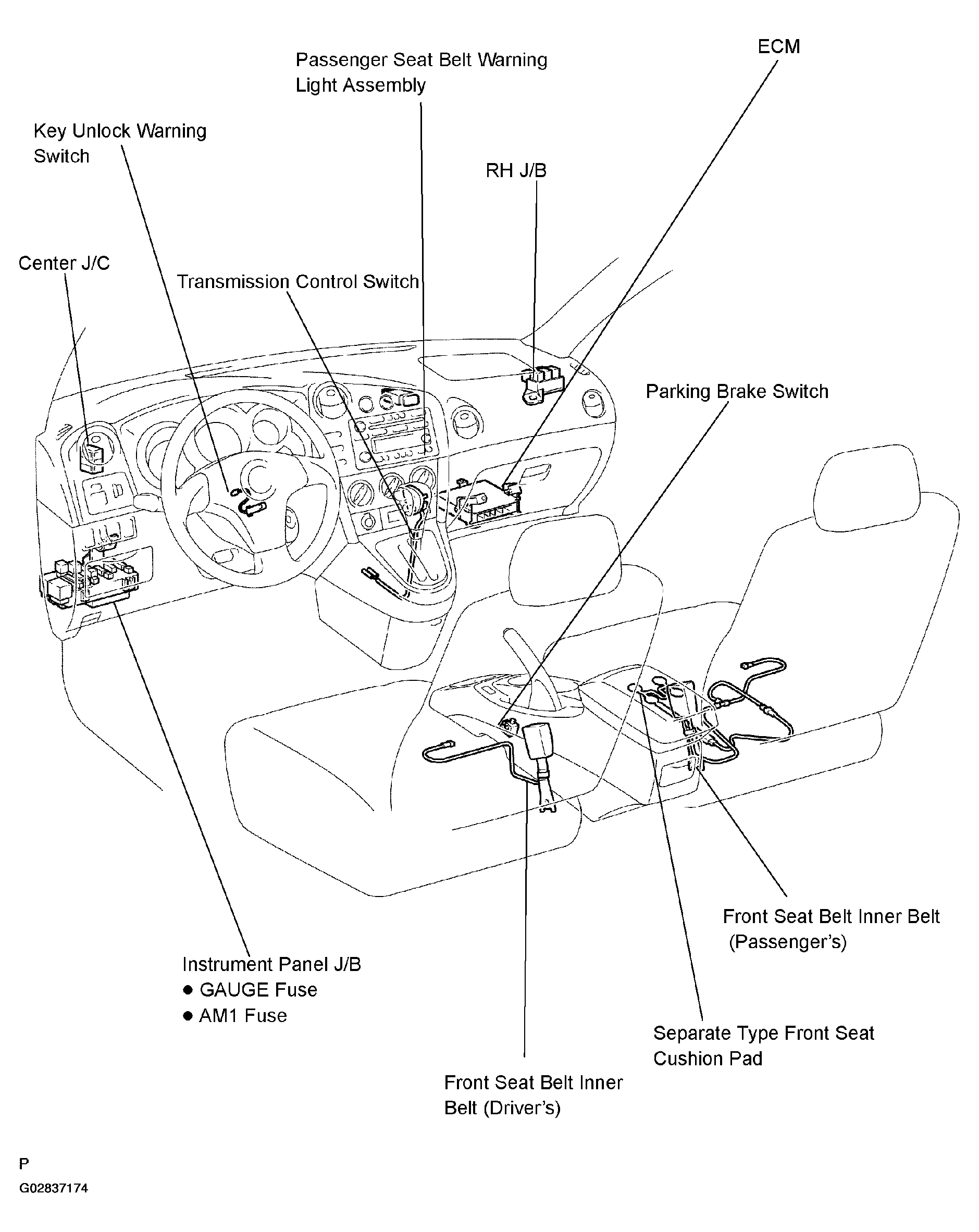

Fig 2: Identifying Combination Meter & Electrical Components Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

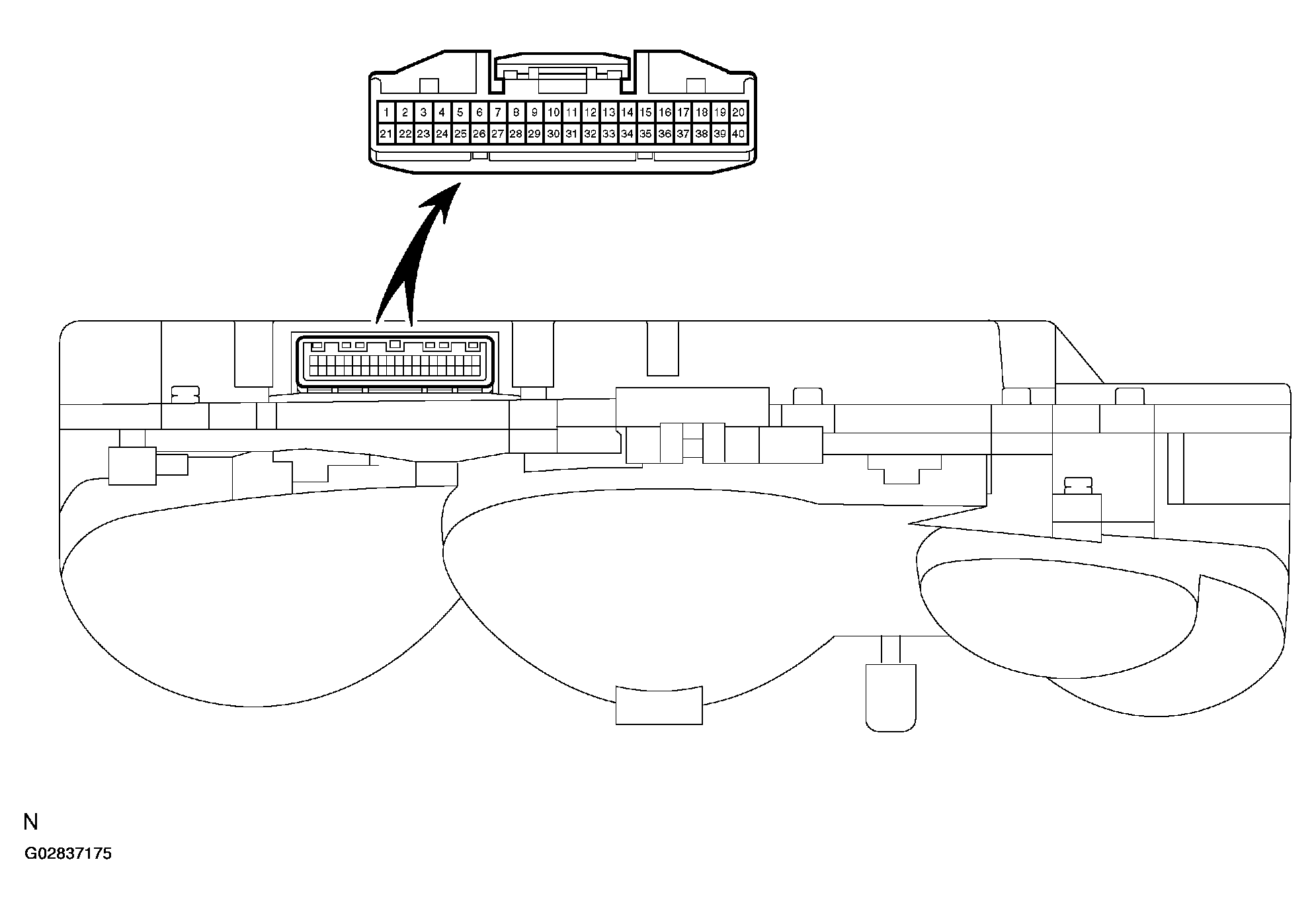

Fig 3: Identifying Combination Meter Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

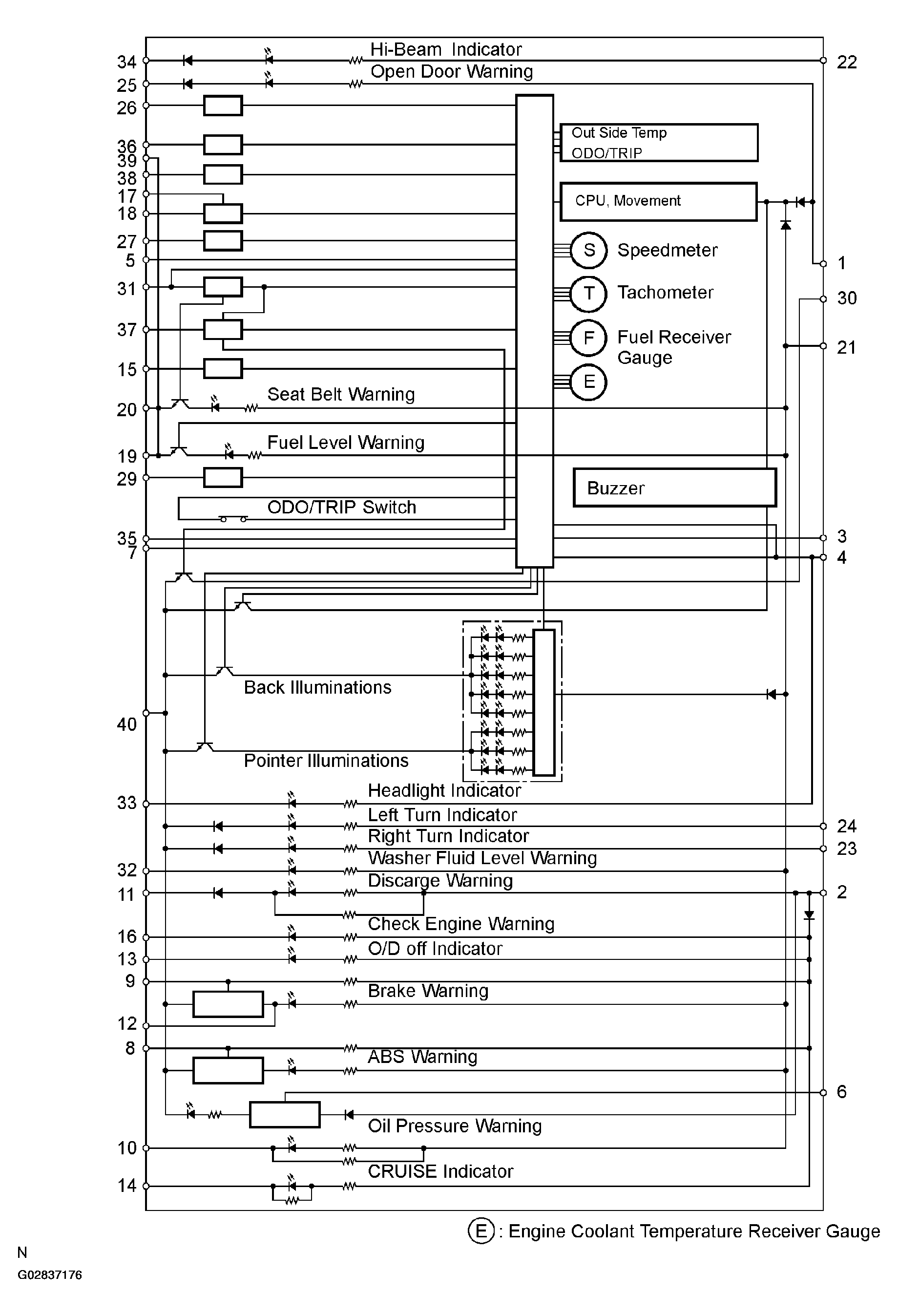

Fig 4: Wiring Diagram - Combination Meter

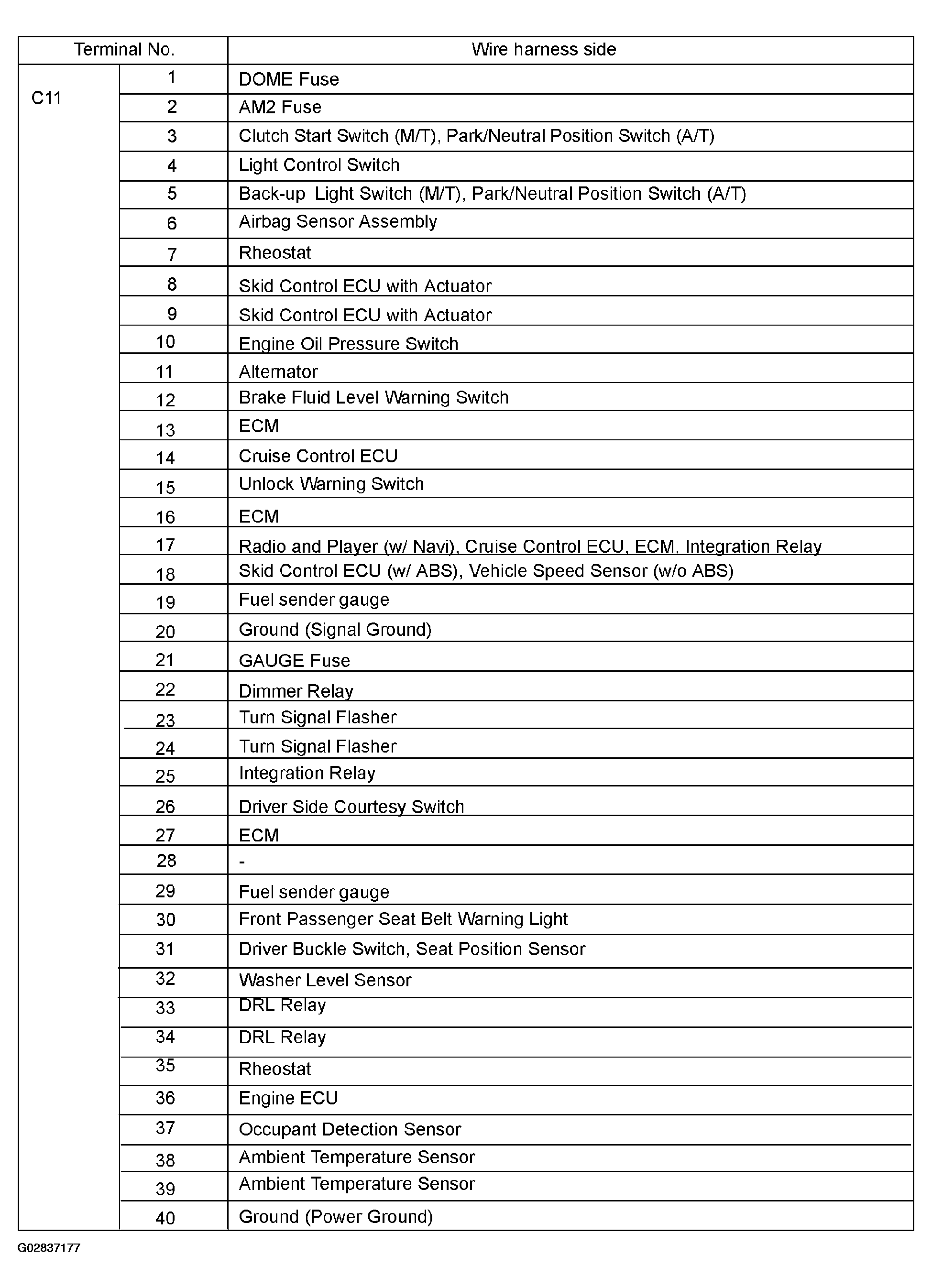

Fig 5: Combination Meter Terminals Description Chart
