Home >> Toyota >> 2003 >> Matrix Base, 4WD >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Sliding Roof/Convertible >> Sliding Roof >> Components

Sliding Roof: Components

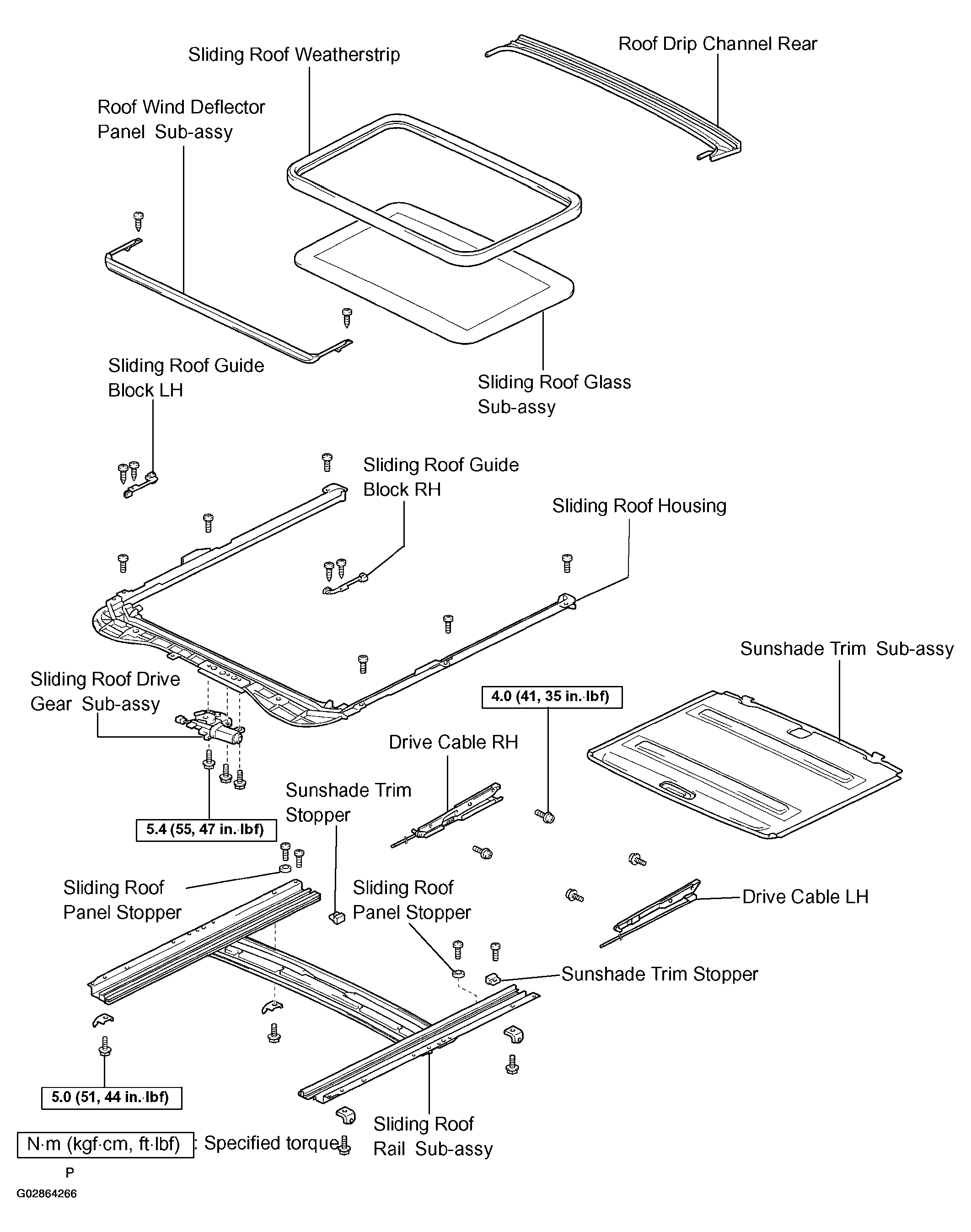

Fig 1: Identifying Sliding Roof Components

G02864266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
