Rear Seat ASSY: Components

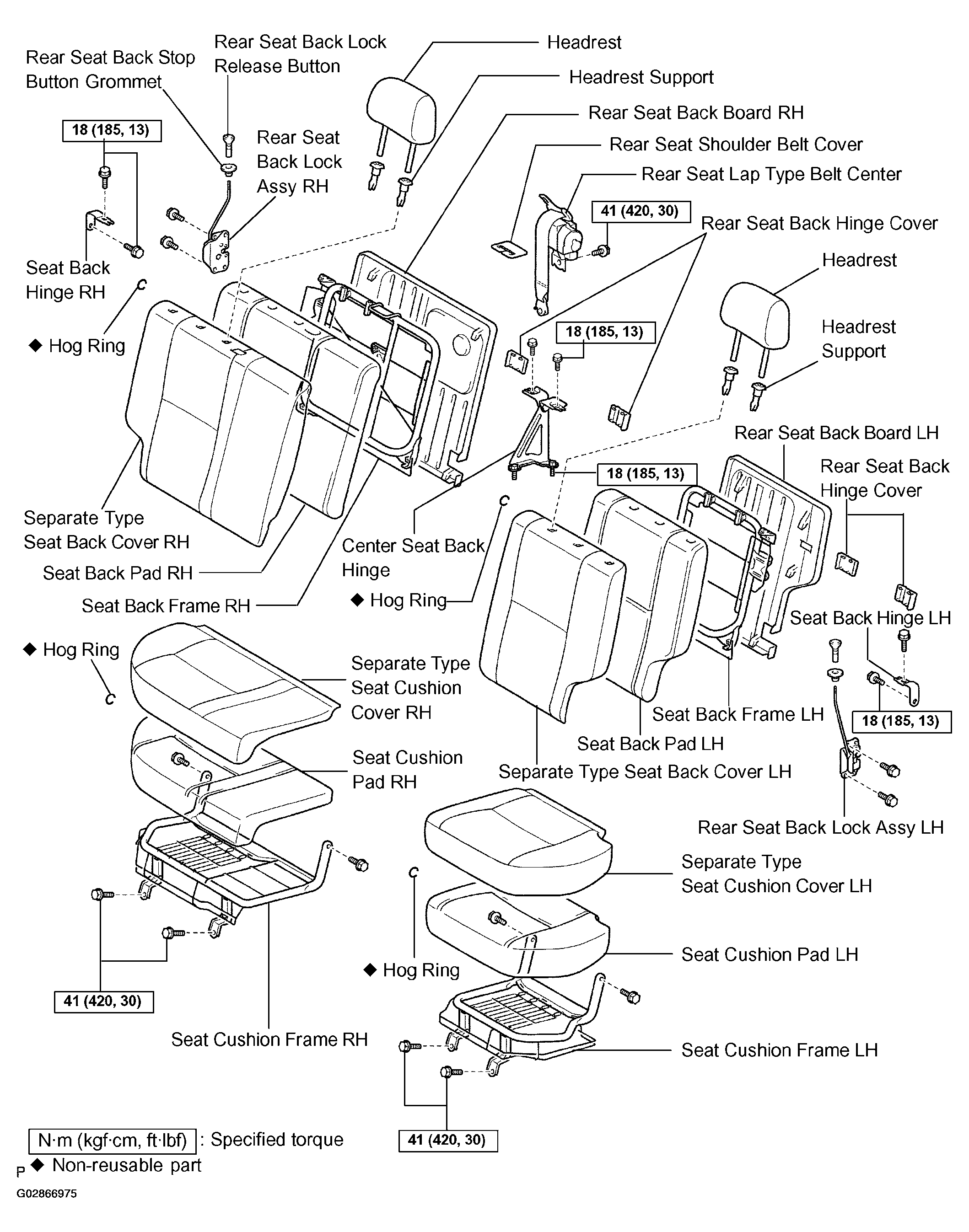

Fig 1: Identifying Rear Seat Assy Components

G02866975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
