Key Unlock Warning Switch Circuit: Wiring Diagram

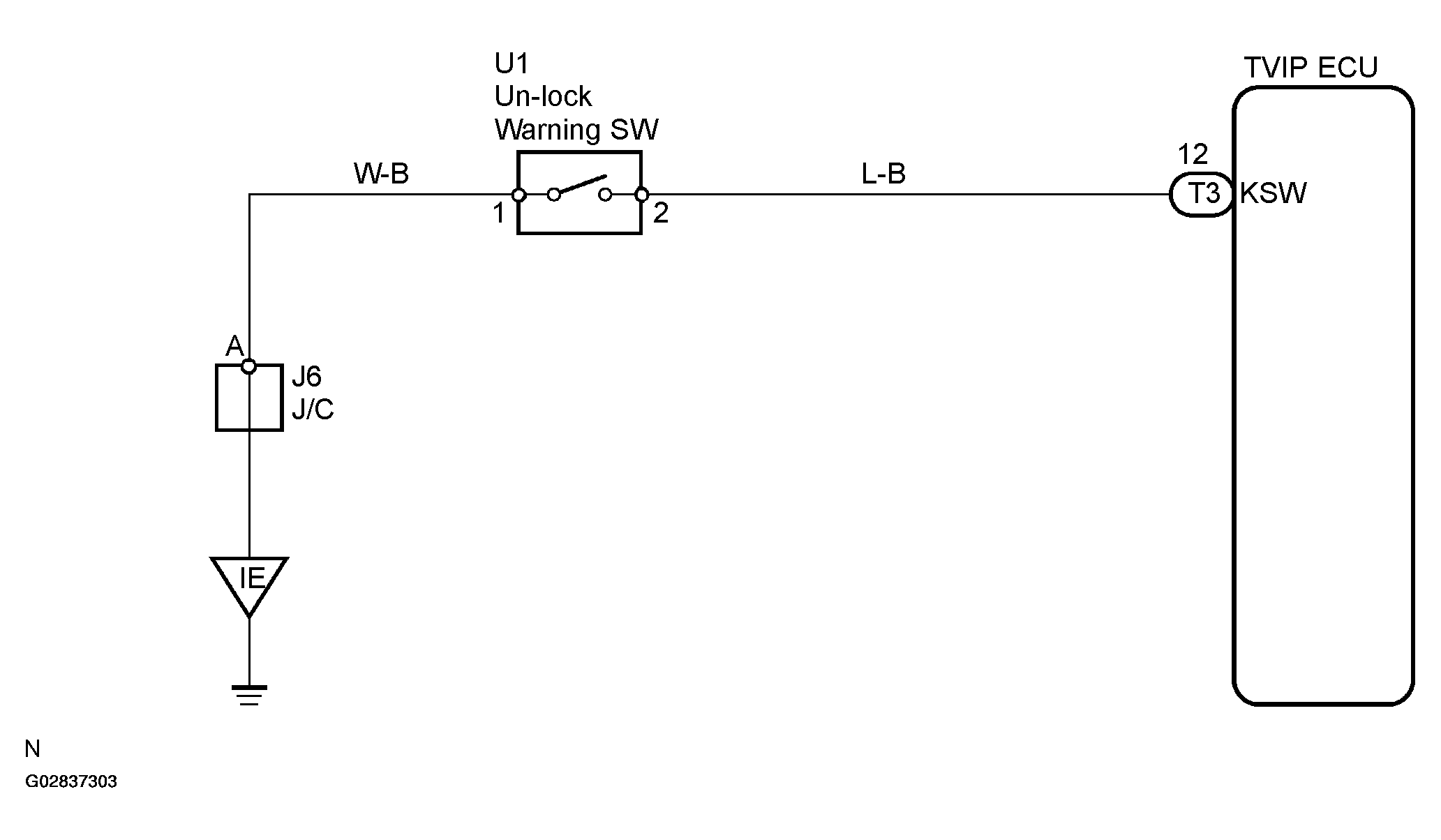

Fig 1: Wiring Diagram - Key Unlock Warning Switch Circuit

G02837303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
