Inspection Procedure

  1. CHECK LOW PITCHED HORN ASSY
    Fig 1: Checking Horn Blows
    G02837279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the positive (+) lead from the battery to the terminal and negative (-) lead to the horn body, and check that the horn blows.

      Standard: Horn blows

    1. NG: REPAIR OR REPLACE LOW PITCHED HORN ASSY
    2. OK: Go To Next Step
  2. CHECK RELAY
    Fig 2: Checking Horn Relay Terminals Continuity
    G02837281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the horn relay from the engine room R/B and J/B.
    2. Check the horn relay continuity, as shown in the illustration and table.

      Standard:

      Fig 3: Horn Relay Terminals Continuity Chart
      G02837280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE RELAY
    2. OK: Go To Next Step
  3. CHECK WIRE HARNESS (TVIP ECU <--> ENGINE ROOM R/B and J/B)

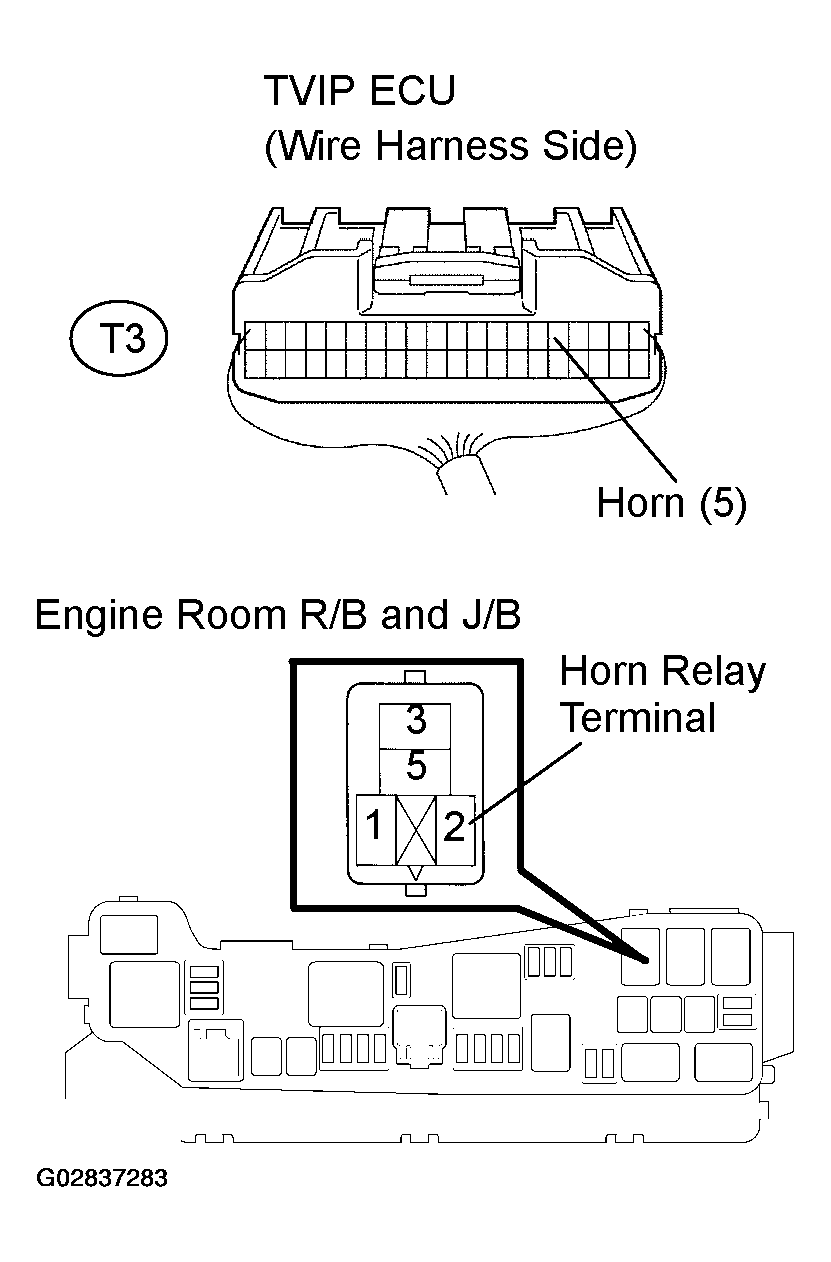

    Fig 4: Identifying TVIP ECU & Engine Room R/B And J/B Connector Terminals
    G02837283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the horn relay from the engine room R/B and J/B.
    2. Disconnect the TVIP ECU connector.
    3. Check the continuity between the terminals of the TVIP ECU connector and engine room R/B and J/B connector, as shown in the illustration and table.

      Standard:

      Fig 5: TVIP ECU Connector & Engine Room R/B And J/B Terminals Continuity Chart
      G02837282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    * : Horn relay terminal.

    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: Go To Next Step
  4. CHECK WIRE HARNESS (ENGINE ROOM R/B and J/B <--> HORN)

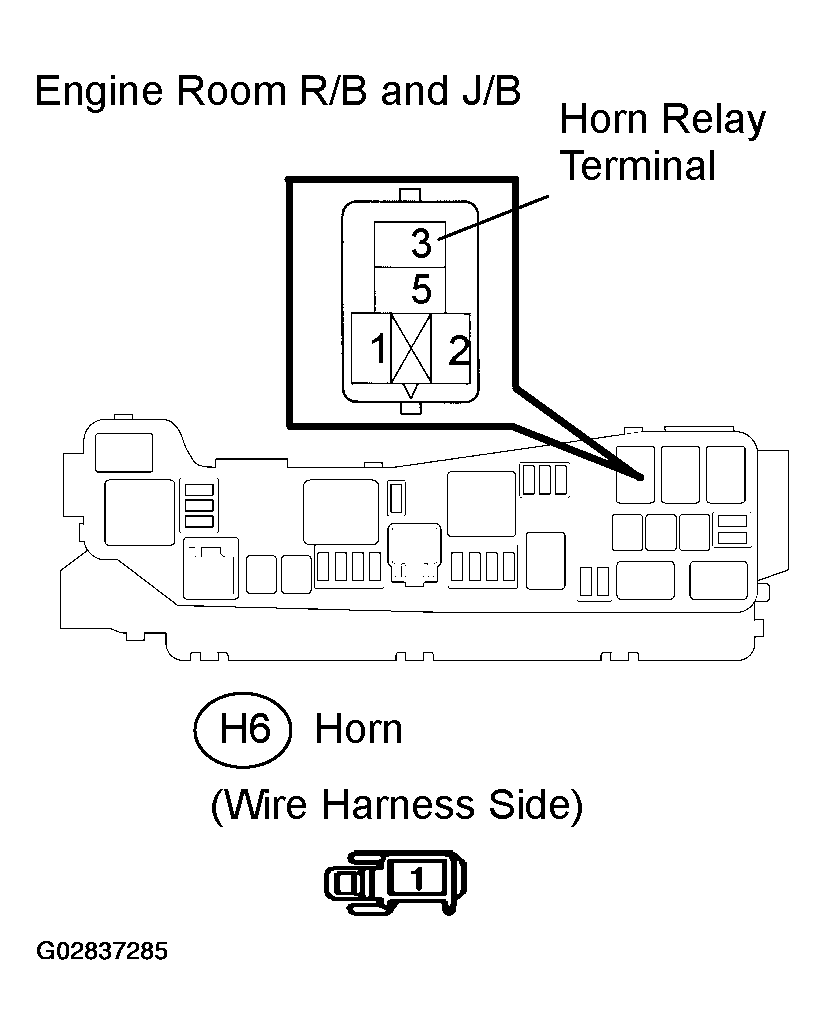

    Fig 6: Identifying Engine Room R/B Or J/B & Horn Connector Terminal
    G02837285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the continuity between the terminals of the engine room R/B and J/B connector and horn connector, as shown in the illustration and table.

      Standard:

    Fig 7: Engine Room R/B Or J/B & Horn Terminal Continuity Chart
    G02837284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    * : Horn relay terminal.

    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: CHECK AND REPLACE TVIP ECU (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
