Inspection Procedure

CHECK COURTESY LAMP SWITCH

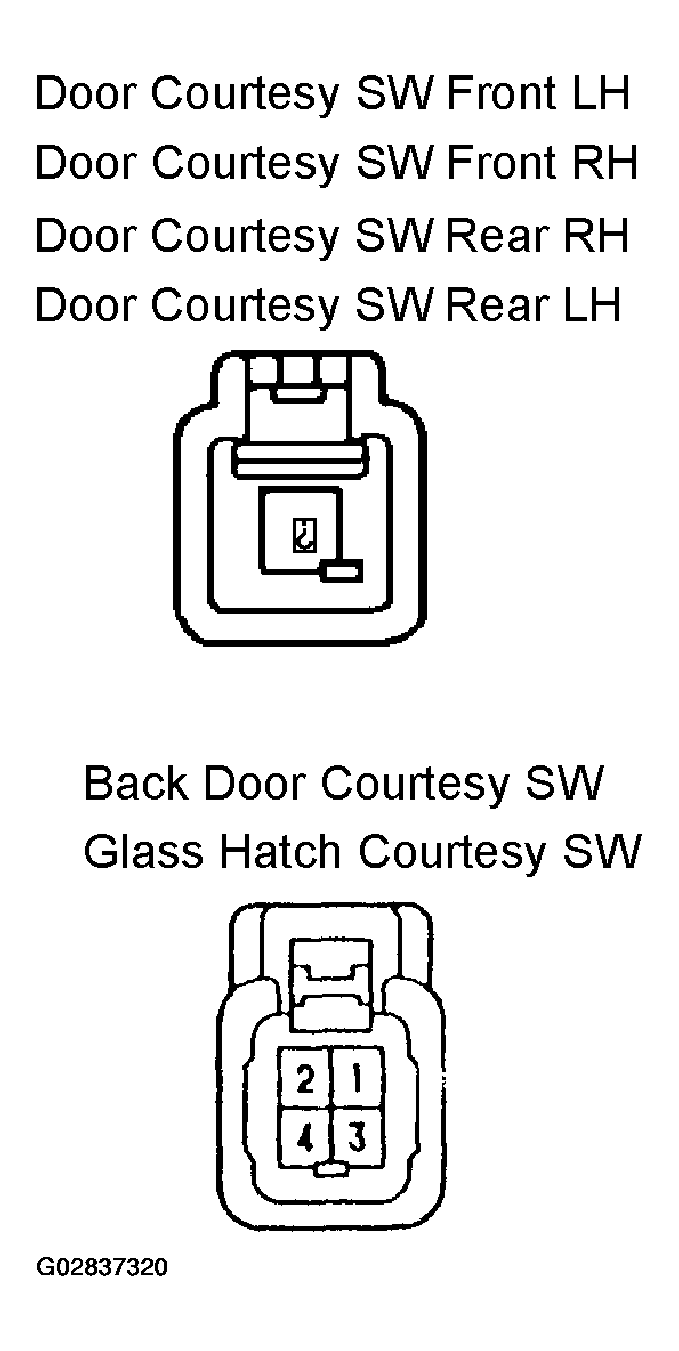

Fig 1: Identifying Door Courtesy Switch & Glass Hatch/Back Door) Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Check the courtesy switch (See INSPECTION or REPLACEMENT ), as shown in the illustration and table.
  Standard (front LH/front RH/rear LH/rear RH):
Fig 2: Door Courtesy Switch Terminals Continuity Chart (Front LH/RH & Rear LH/RH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard (grass hatch/back door):

Fig 3: Door Courtesy Switch Terminals Continuity Chart (Glass Hatch/Back Door)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE COURTESY LAMP SWITCH
2. OK: Go To Next Step
CHECK WIRE HARNESS (INTEGRATION RELAY <--> DOOR COURTESY SW)

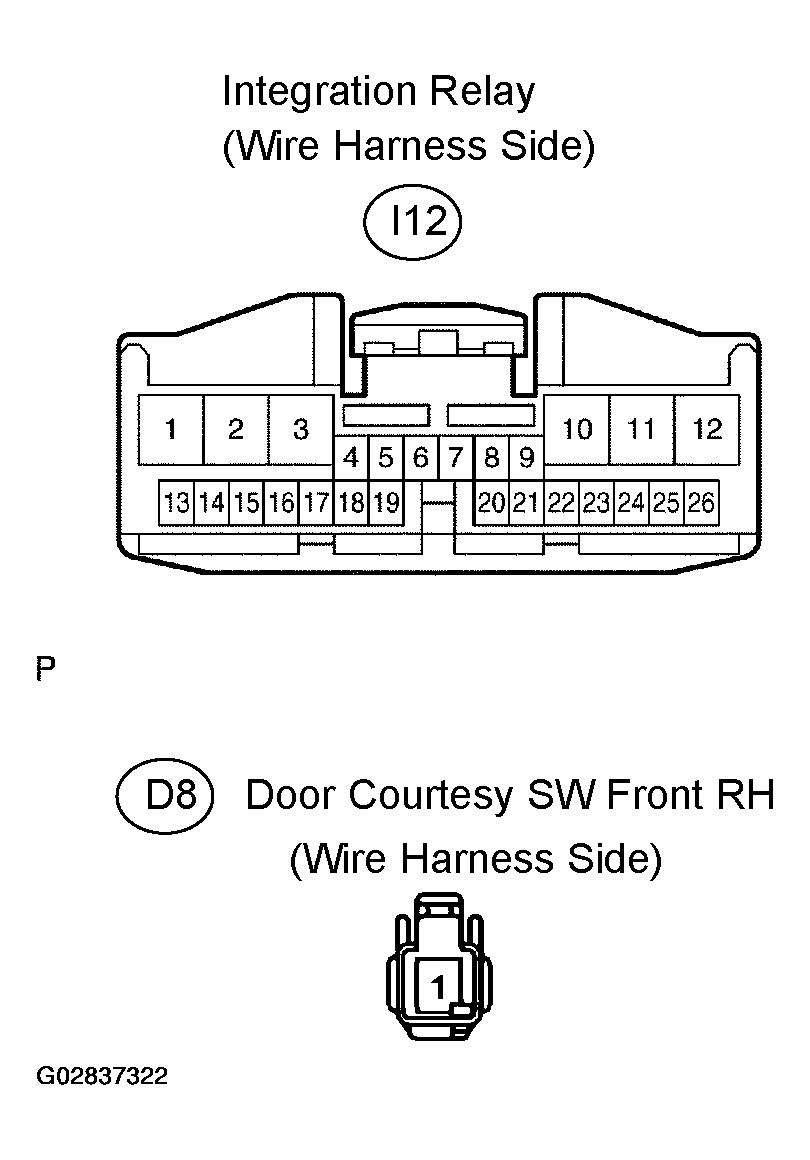

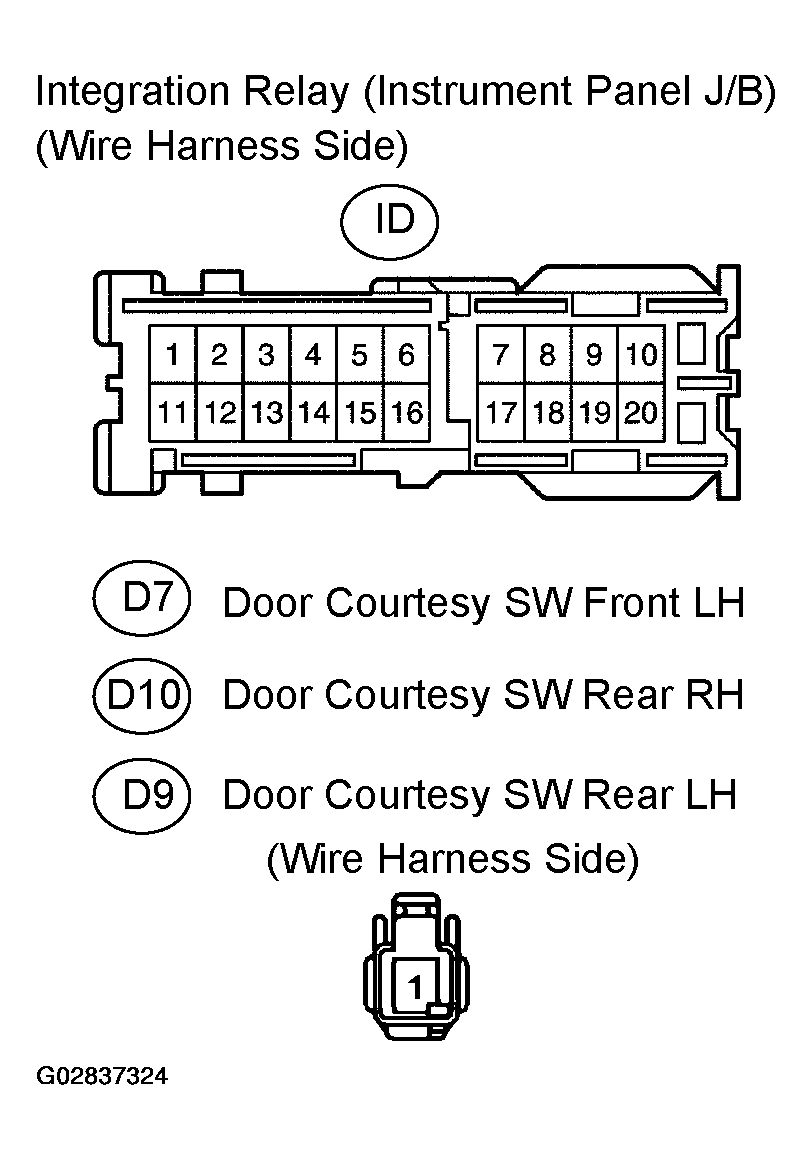

Fig 4: Identifying Door Courtesy Switch Front RH & Integration Relay Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the integration relay and door courtesy connectors.
2. Check the continuity between the terminals of the integration relay connector and door courtesy switch connector, as shown in the illustration and table.
  Standard:

  Fig 5: Door Courtesy Switch & Integration Relay Terminals Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the integration relay and door courtesy connectors.
4. Check the continuity between the terminals of the integration relay connector and door courtesy switch connector, as shown in the illustration and table.
  Standard:
Fig 7: Door Courtesy Switch & Integration Relay Terminals Continuity Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
2. OK: Go To Next Step
CHECK WIRE HARNESS

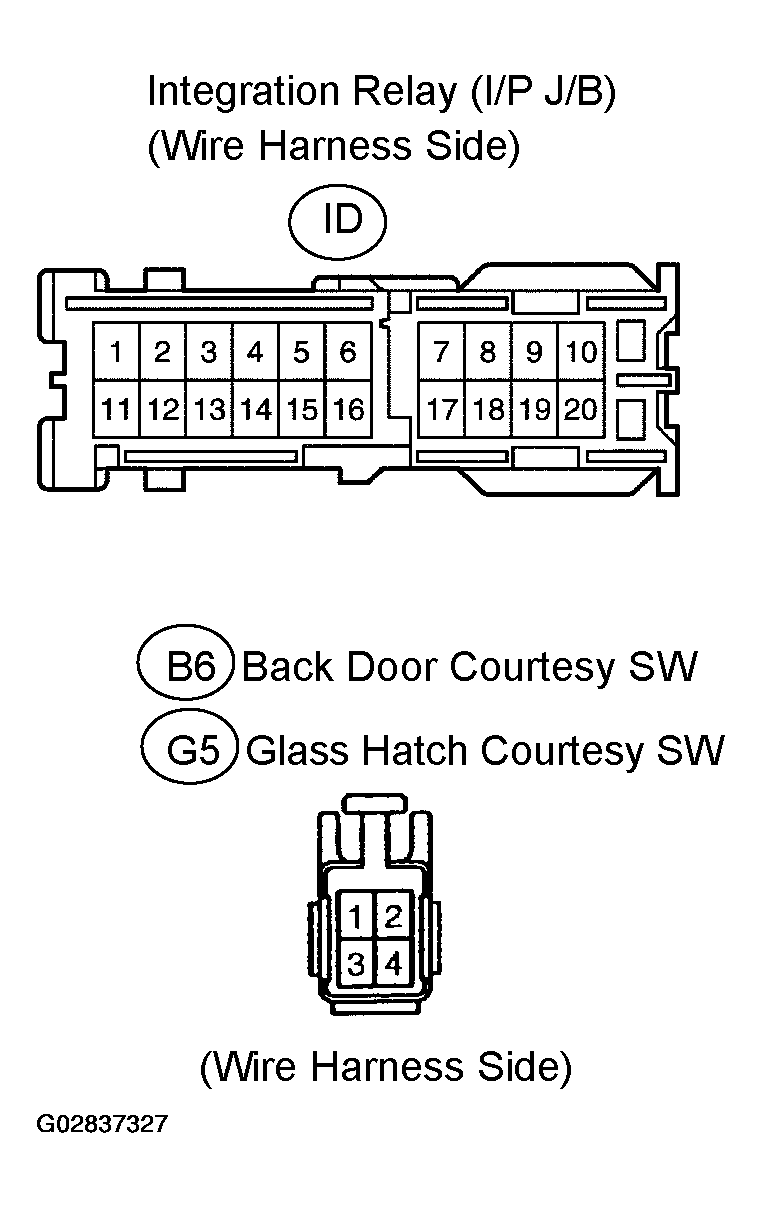

Fig 8: Identifying Integration Relay (I/P Or J/B) & Glass Hatch Courtesy Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the integration relay and door courtesy connectors.
2. Check the continuity between the terminals of the integration relay connector and back door courtesy switch connector, as shown in the illustration and table
  Standard :

  Fig 9: Integration Relay & Back Door Courtesy Switch Terminals Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the continuity between the terminals of the integration relay connector and glass hatch courtesy switch connector, as shown in the illustration and table
  Standard :

  Fig 10: Integration Relay & Glass Hatch Courtesy Switch Terminals Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check the continuity between terminal of the back door courtesy switch connector and the ground.
  Standard:

  Fig 12: Back Door Courtesy Switch Terminal & Body Ground Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check the continuity between terminal of the glass hatch switch connector and the ground.
  Standard:

  Fig 13: Glass Hatch Door Courtesy Switch Terminal & Body Ground Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
2. OK: CHECK TVIP ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
