Window Defogger System: Location

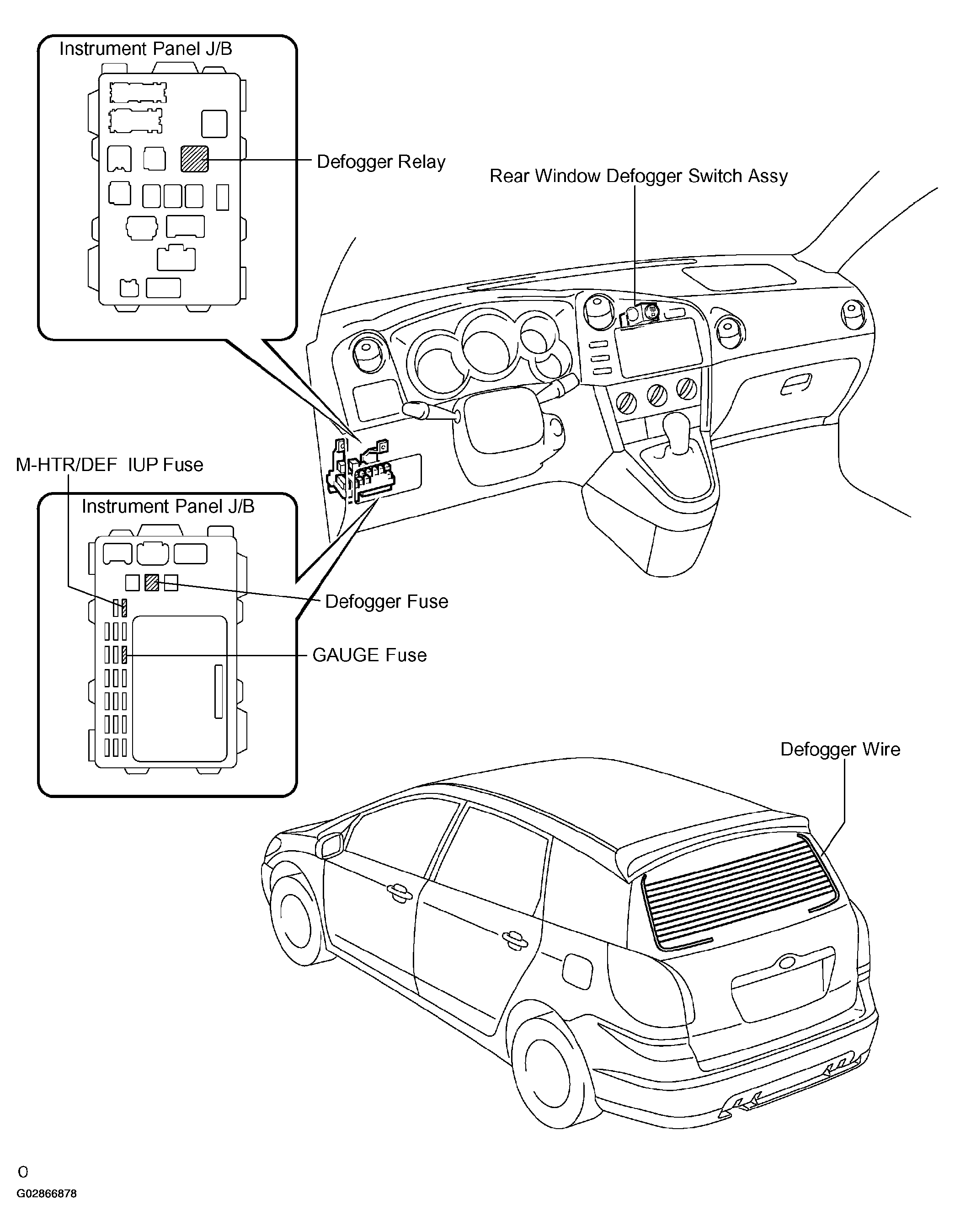

Fig 1: Identifying Window Defogger System Component Locations

G02866878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
