Home >> Toyota >> 2003 >> Matrix Base, 4WD >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Abs With EBD System - Diagnostics >> Circuit Tests >> DTC C0278/11: Open Circuit In Abs Solenoid Relay Circuit & DTC C0279/12: Short Circuit In Abs Solenoid Relay Circuit >> Circuit Description

Circuit Description

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

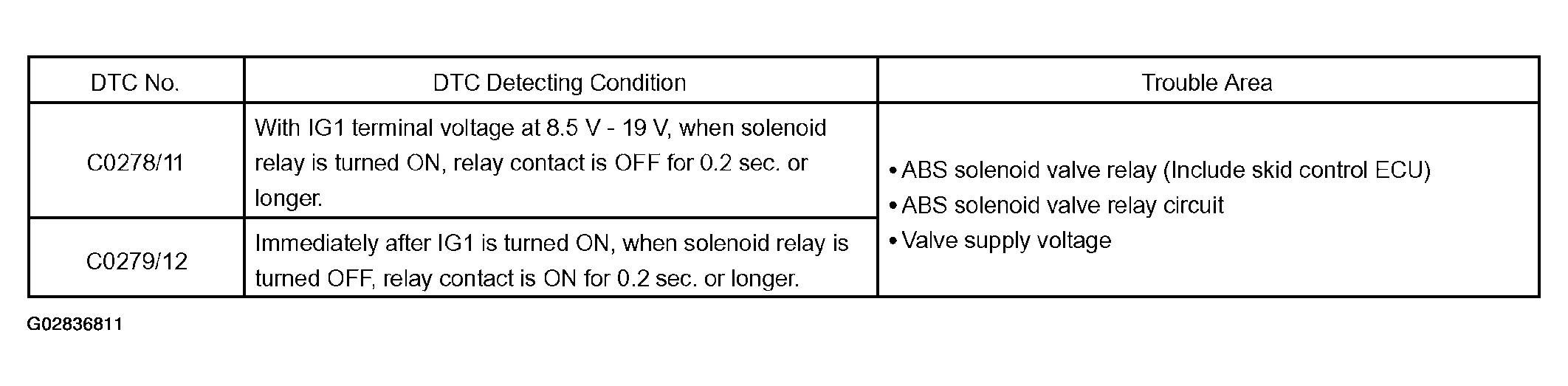

Fig 1: Relay Supplies Table
G02836811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
