Circuit Description

The ABS motor relay supplies power to the ABS pump motor. While the ABS is activated, the ECU switches the motor relay ON and operates the ABS pump motor.

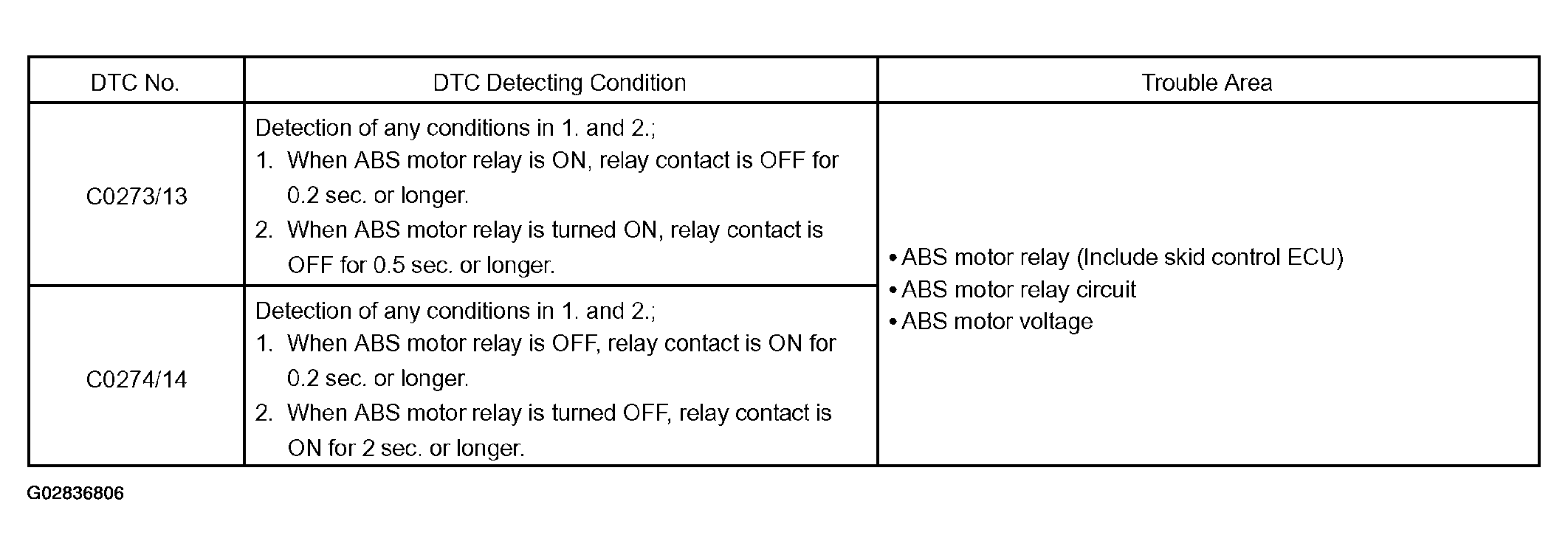

Fig 1: Identifying ABS Pump Motor Description Table
G02836806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
