Light Control Switch Circuit: Wiring Diagram

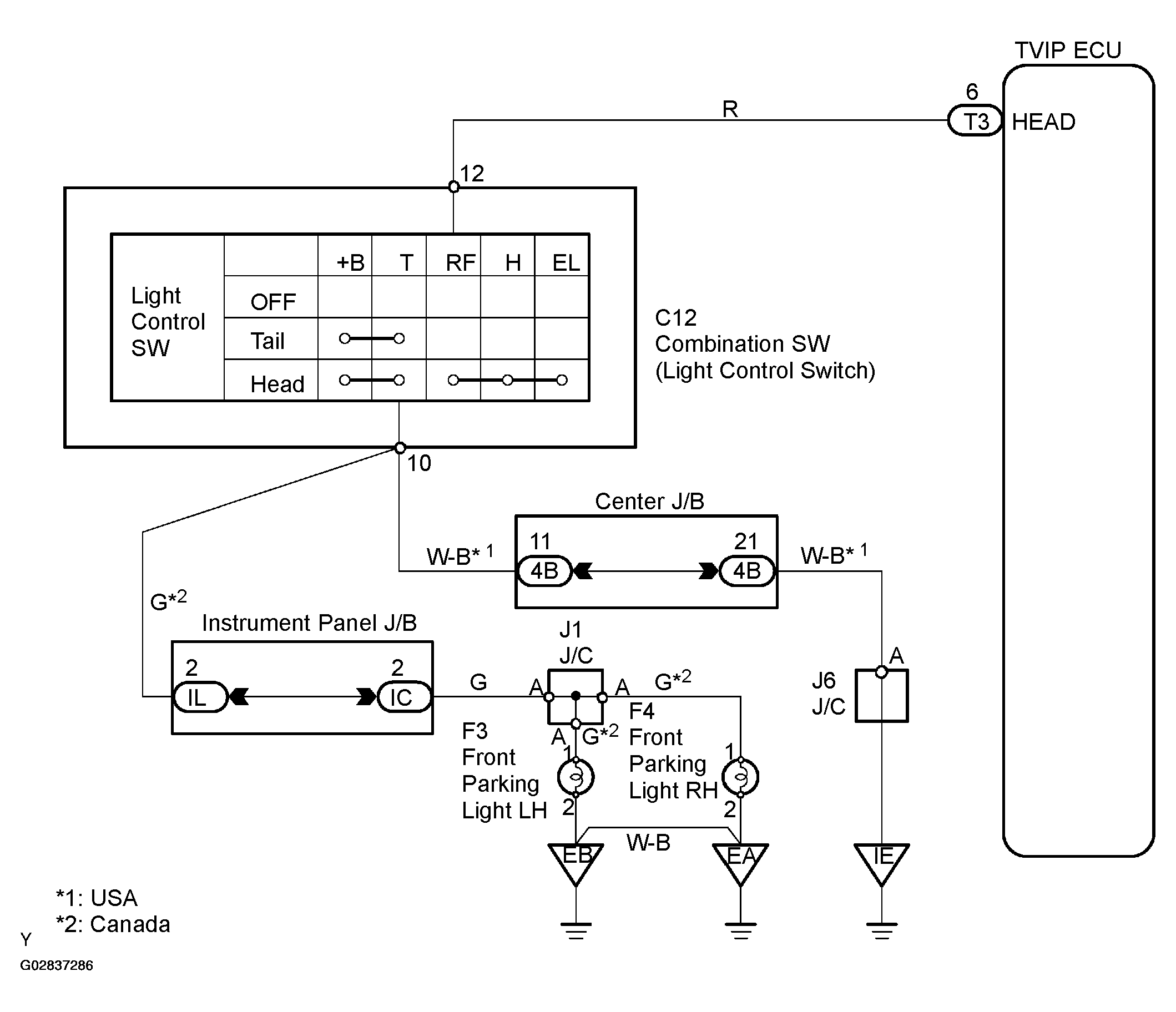

Fig 1: Wiring Diagram - Light Control Switch Circuit

G02837286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
