Home >> Toyota >> 2003 >> MR2 C65M >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Electric Tension Reducer System (Driver) >> Location

Electric Tension Reducer System (Driver): Location

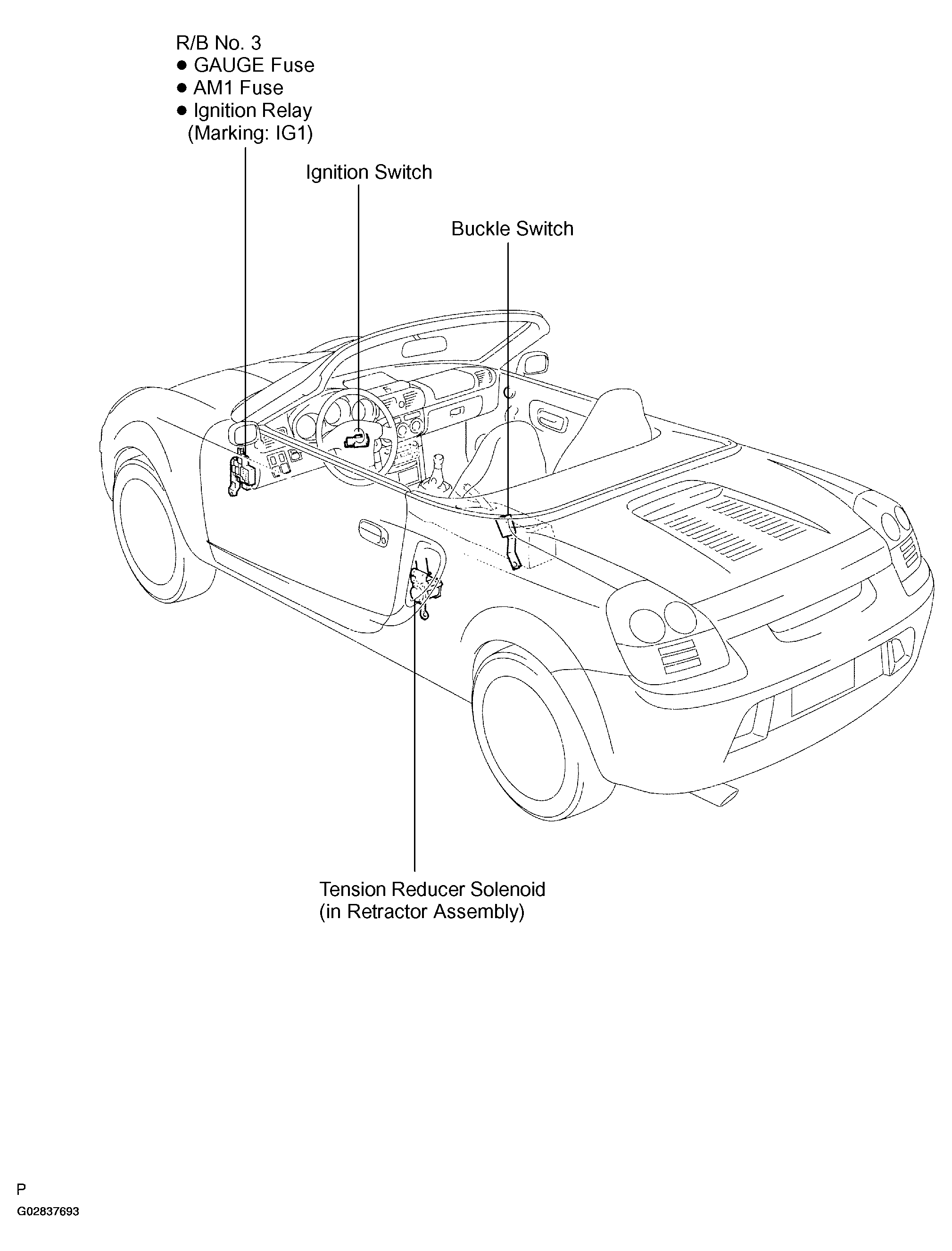

Fig 1: Locating Electric Tension Reducer System (Driver) Components

G02837693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
