MR2 C65M
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Combination Meter
>>
Location
Combination Meter: Location

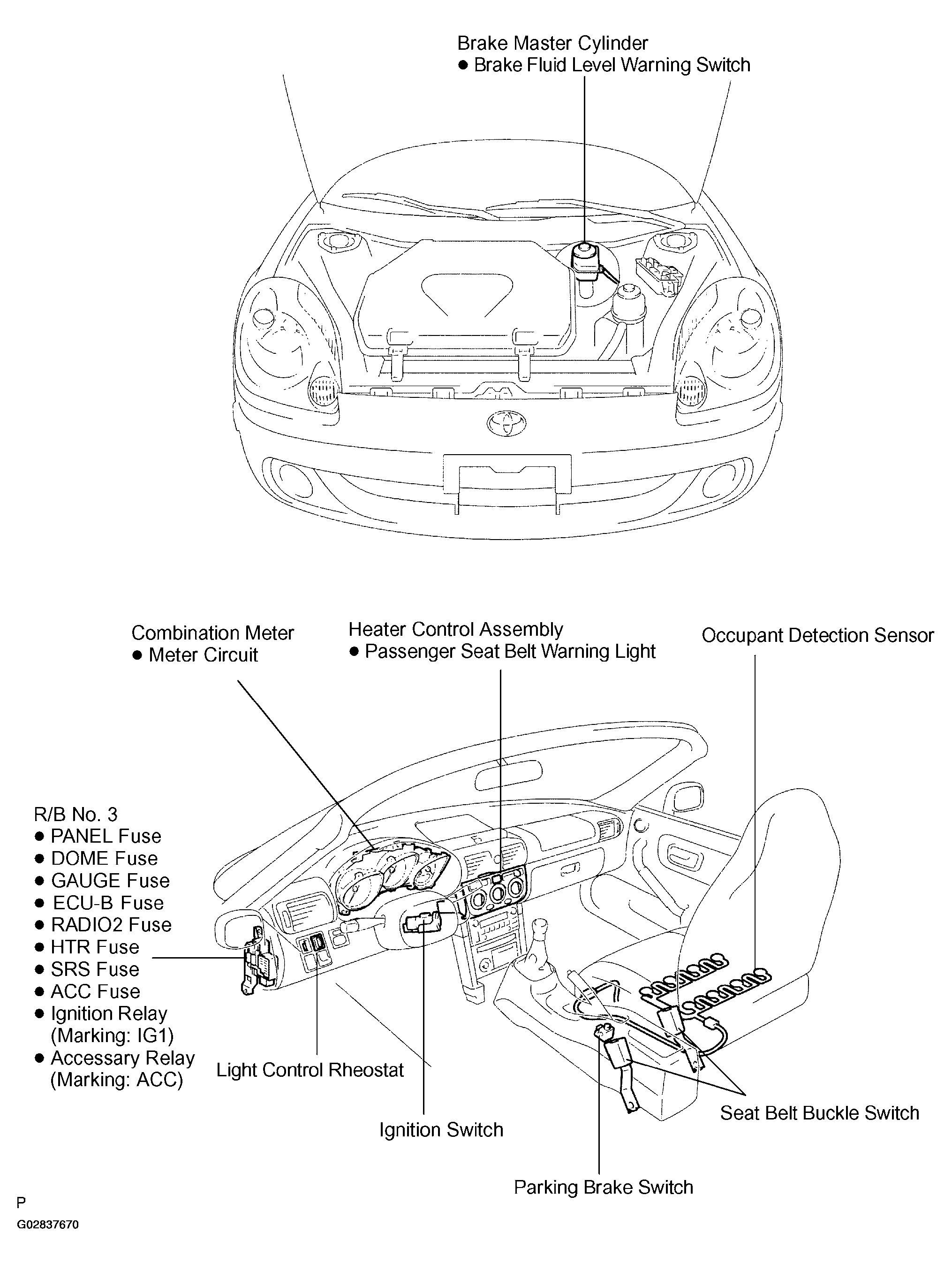

Fig 1: Locating Combination Meter Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

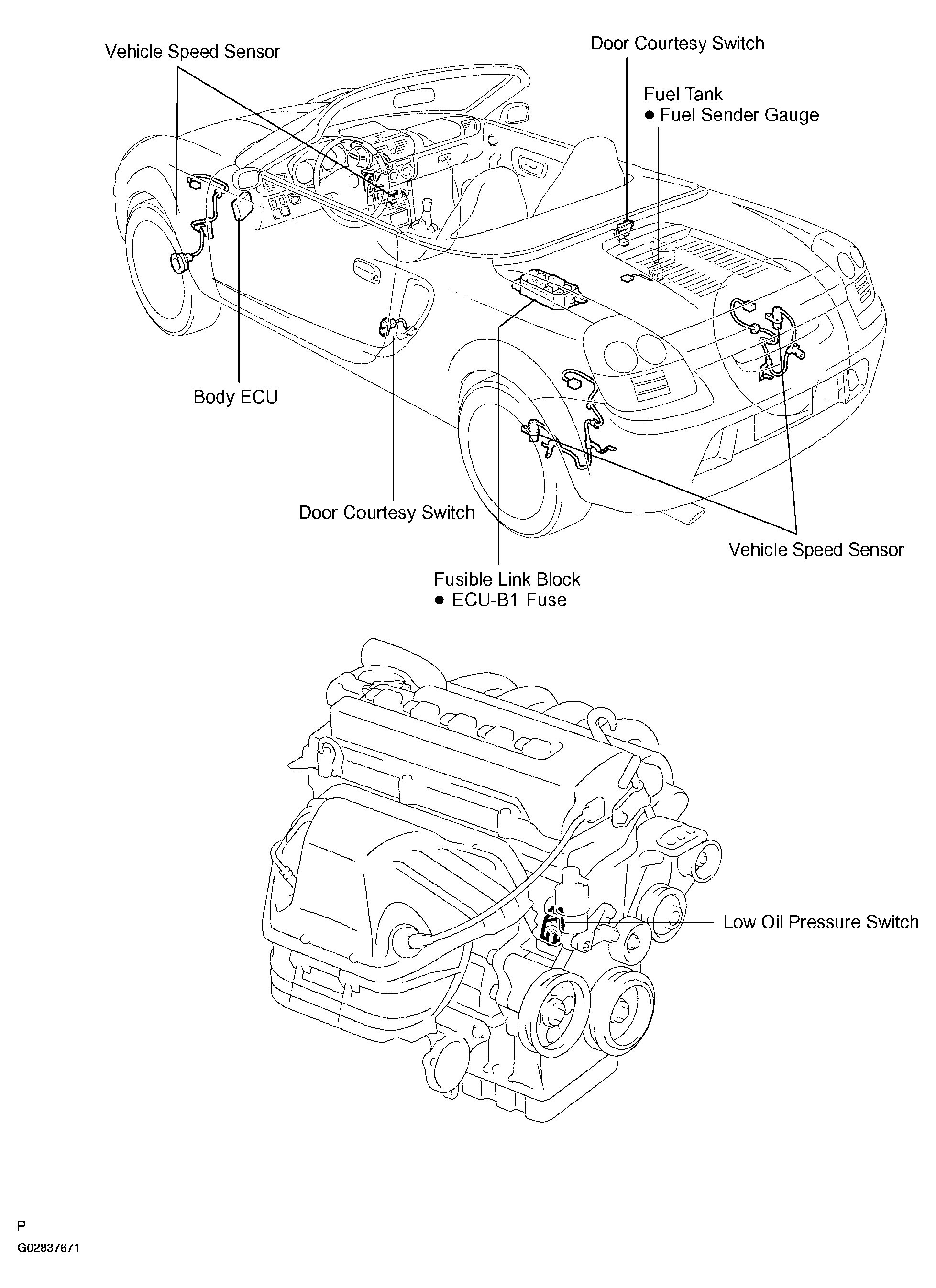

Fig 2: Locating Combination Meter Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

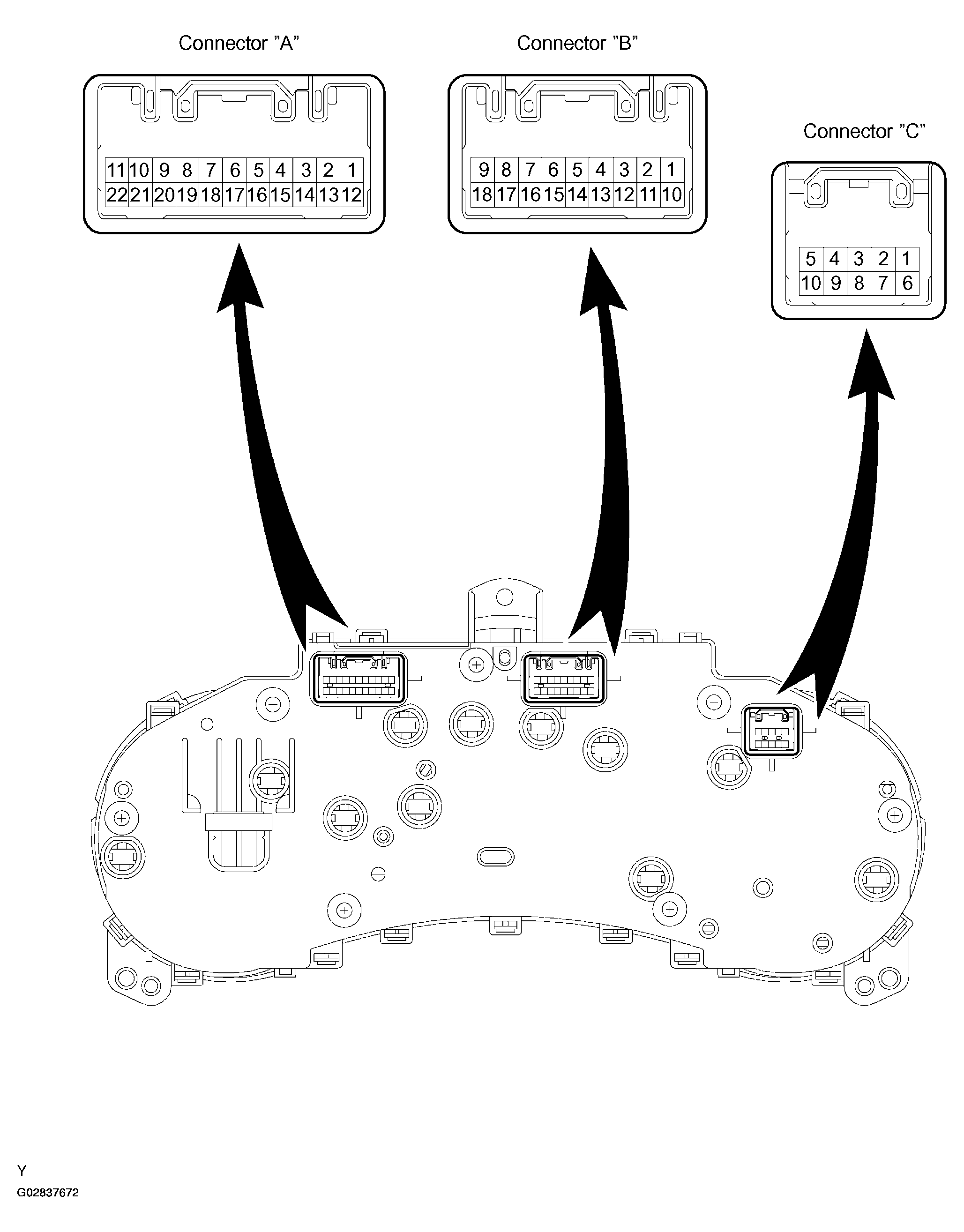

Fig 3: Identifying Combination Meter Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
