Combination Meter: Circuit

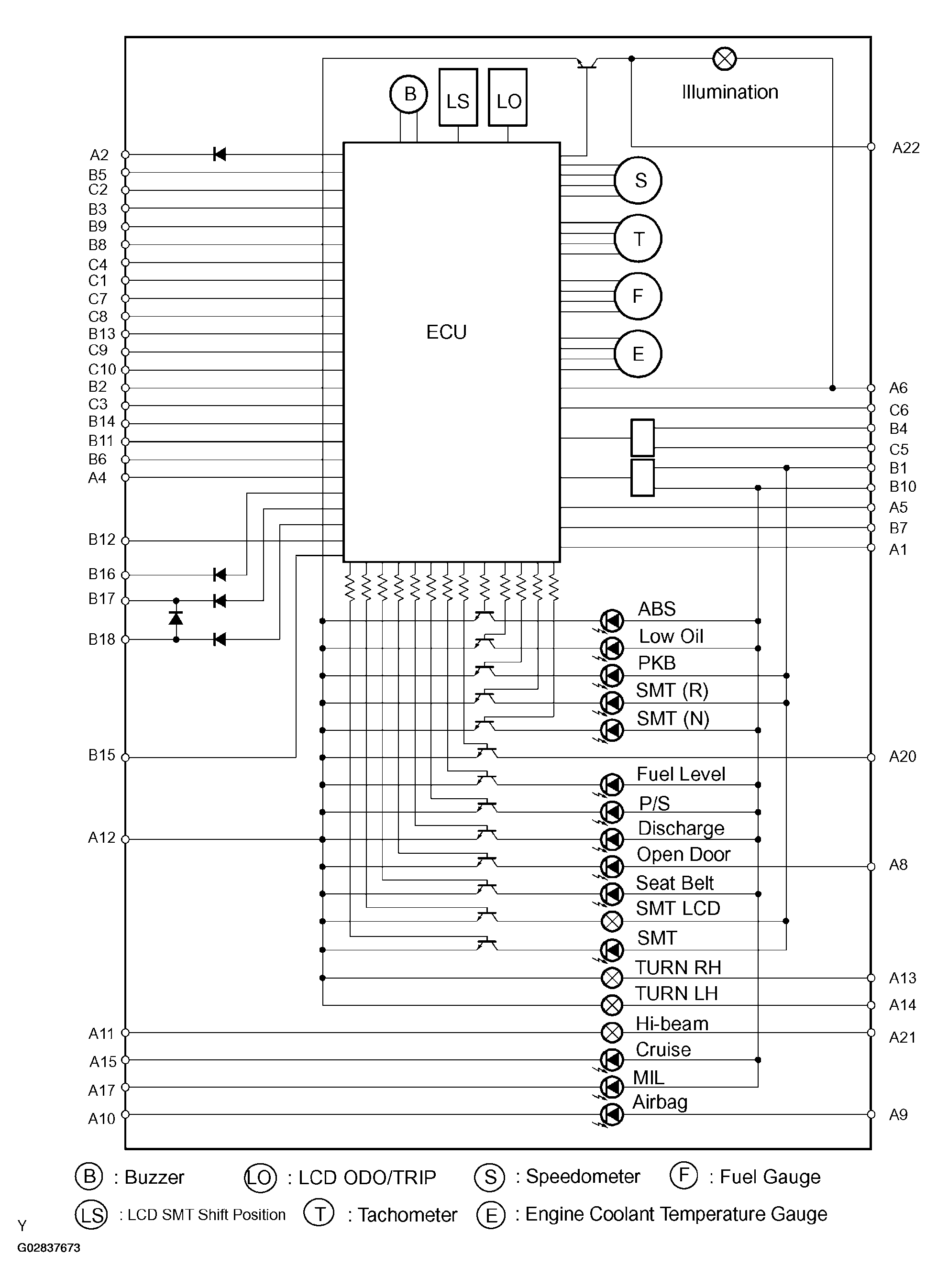

Fig 1: Combination Meter Circuit Diagram
G02837673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

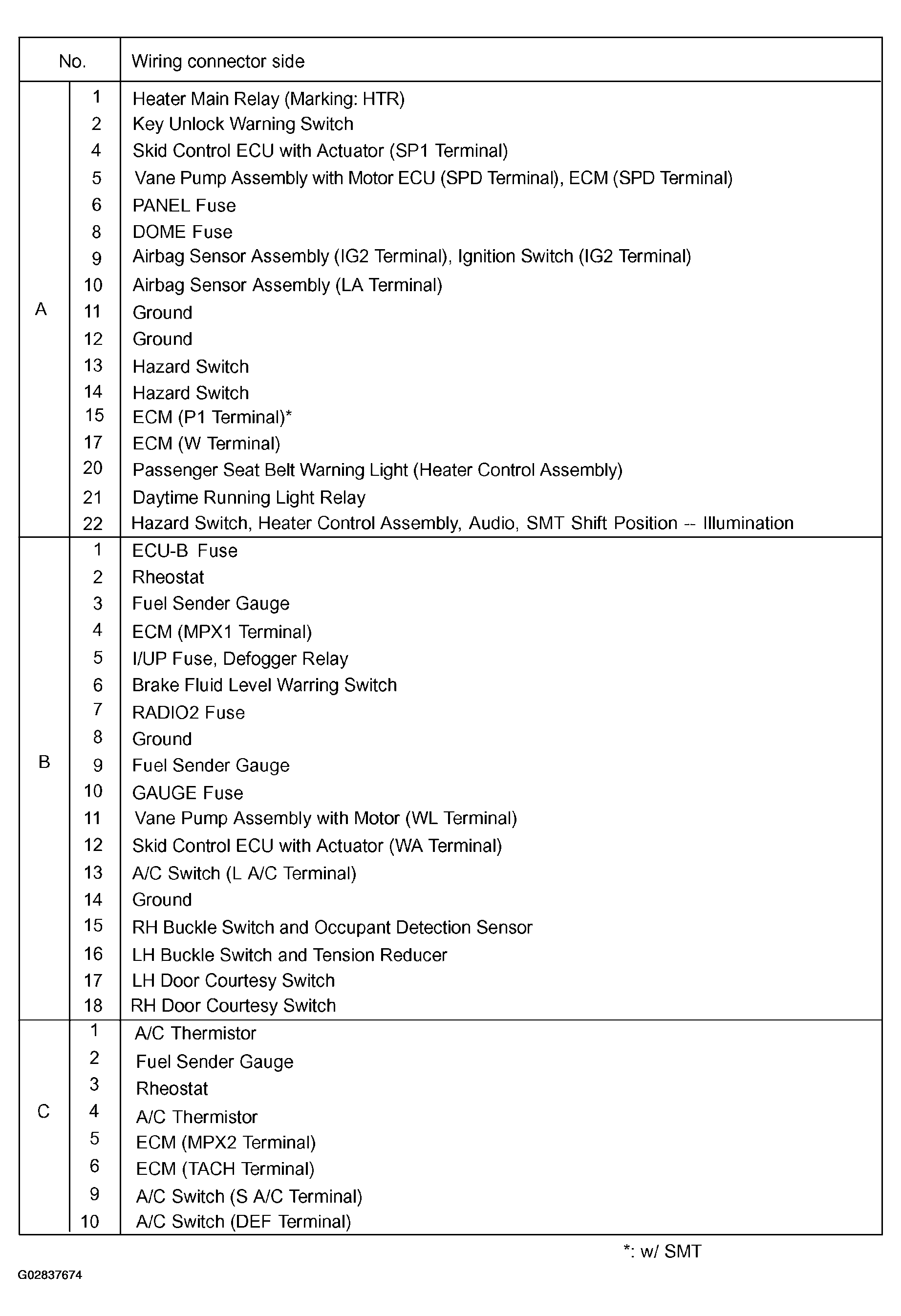

Fig 2: Combination Meter Connector Terminals Specifications
G02837674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
