Abs Actuator: Removal

REMOVE TOOL BOX
REMOVE LUGGAGE COMPARTMENT TRIM BOX COVER
DISCONNECT BRAKE LINES FROM ABS ACTUATOR
Using SST, disconnect the 6 brake lines.

SST 09023-00100

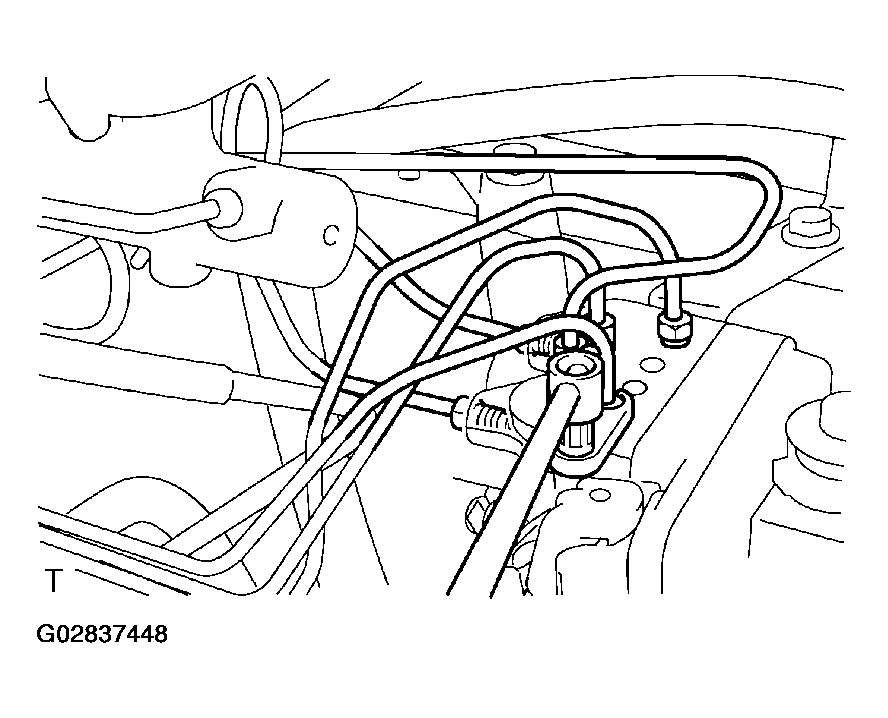

Fig 1: Disconnecting ABS Actuator Brake Lines
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ABS ACTUATOR
1. Disconnect the 2 harness clamps and actuator connector.

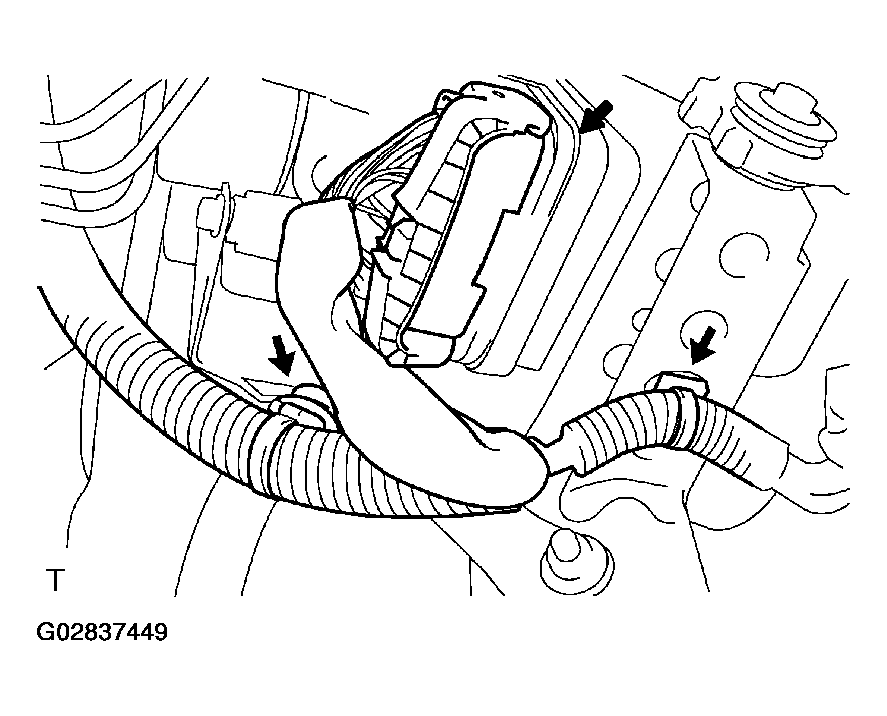

  Fig 2: Disconnecting 2 Harness Clamps & Actuator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 harness clamps.

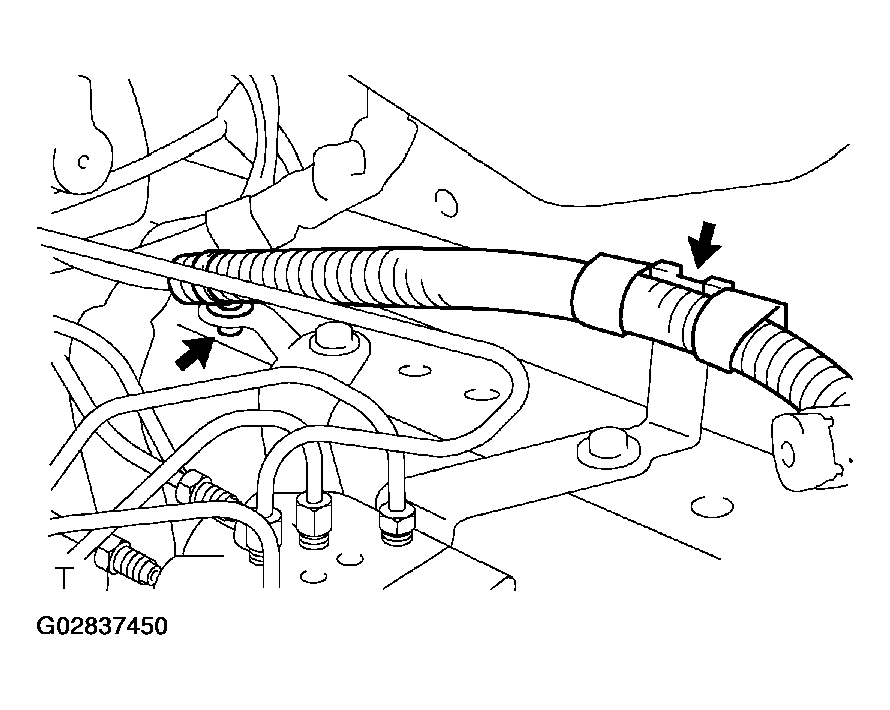

  Fig 3: Disconnecting Brake Lines From ABS Actuator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts, nut and the ABS actuator assembly.
4. Remove the 2 nuts and ABS actuator from the actuator bracket.
5. Remove the 2 holders and 3 cushions from the ABS actuator.

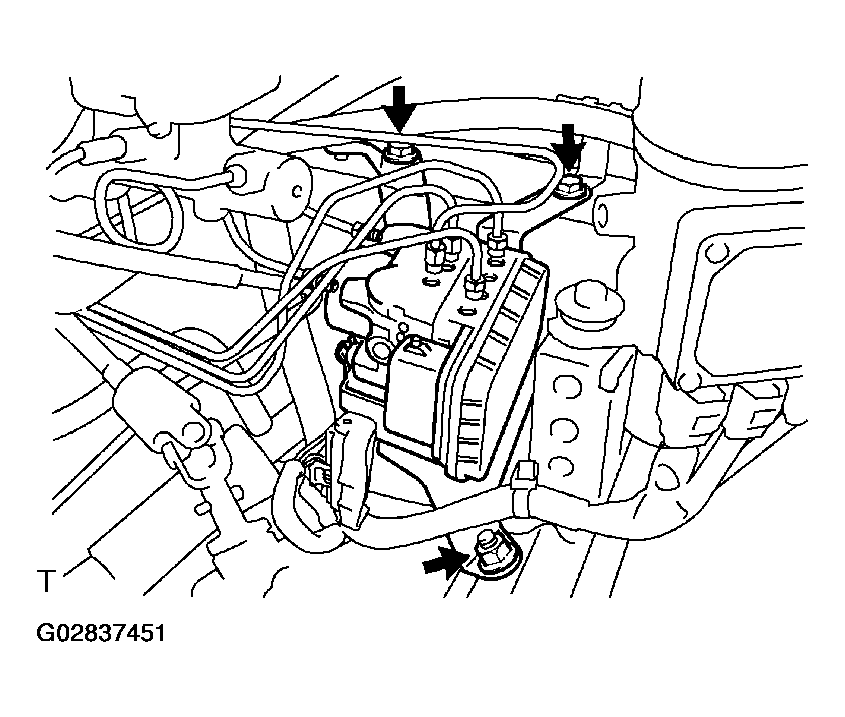

  Fig 4: Removing ABS Actuator Bracket Nut & 2 Bolts
