Home >> Toyota >> 2003 >> MR2 C65M >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Seat >> Components

Front Seat: Components

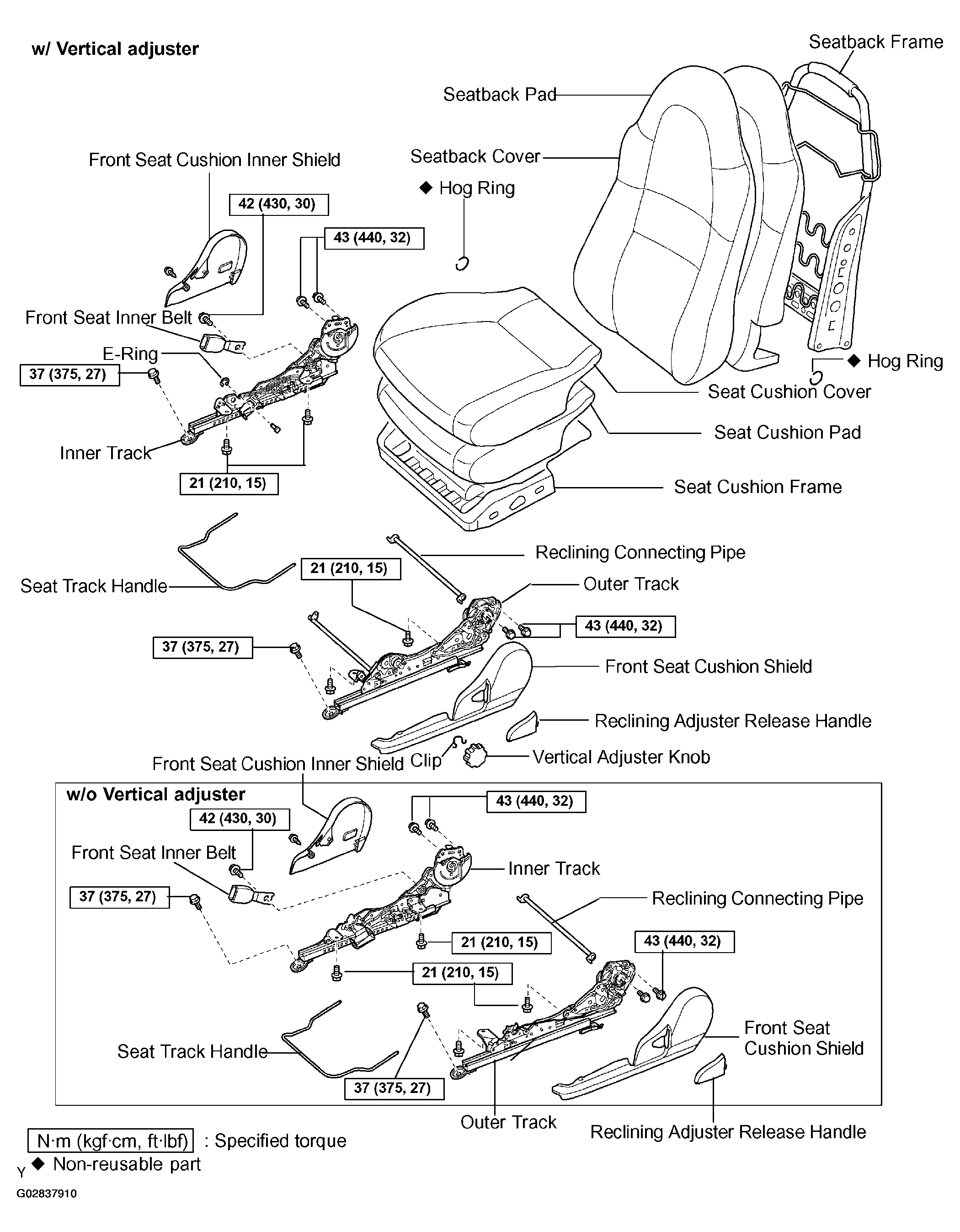

Fig 1: Component Location And Torque Specification Of Front Seat

G02837910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
