Passive Arming On/Off Selection, Entry Delay Time Selection

The RS3200 PLUS is factory-set to not PASSIVELY ARM. To change the system's operation for PASSIVE ARMING operation, as well as adjust the ENTRY DELAY time, follow the procedure below. For more information on this feature, please refer to AUTOMATIC REARMING  .

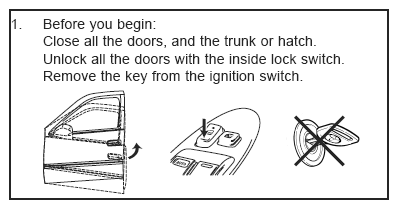

G06742644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

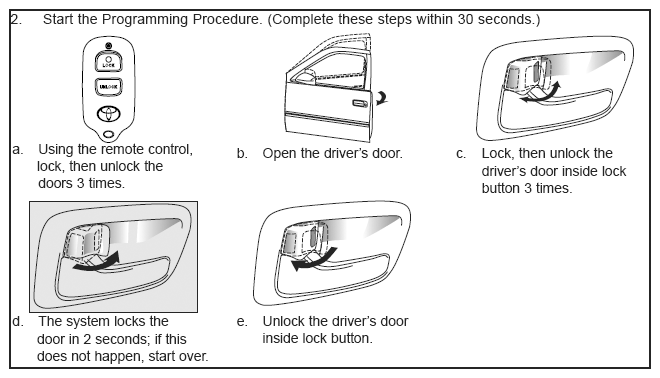

G06742645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

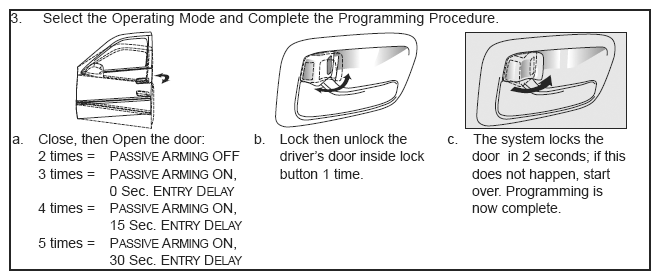

G06742646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
