Home >> Toyota >> 2003 >> MR2 C65M >> Repair and Diagnosis (Single Page) >> Steering >> Steering Column >> Tilt Steering Column >> Components

Tilt Steering Column: Components

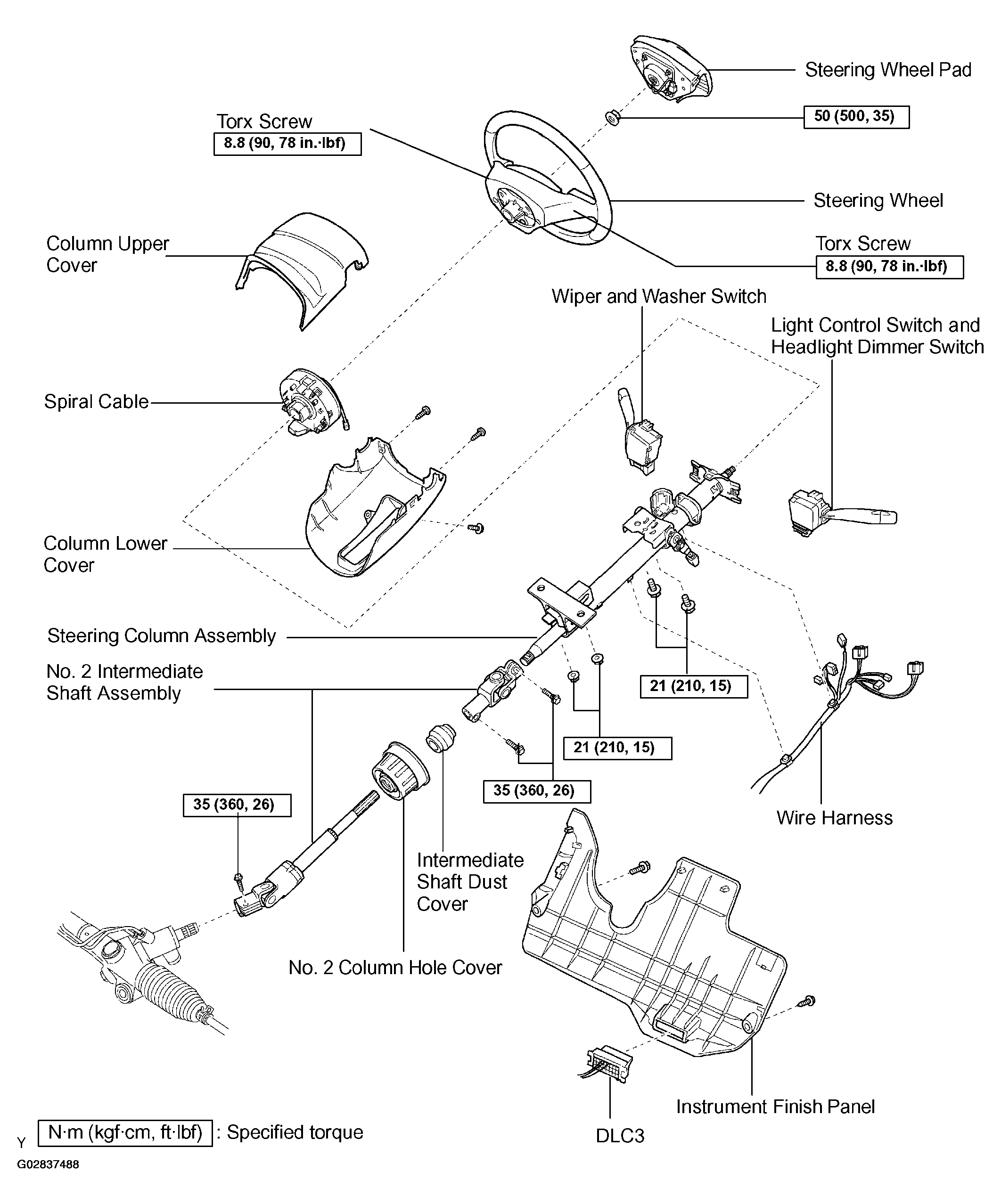

Fig 1: Exploded View Of Tilt Steering Column Components (1 Of 2)
G02837488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

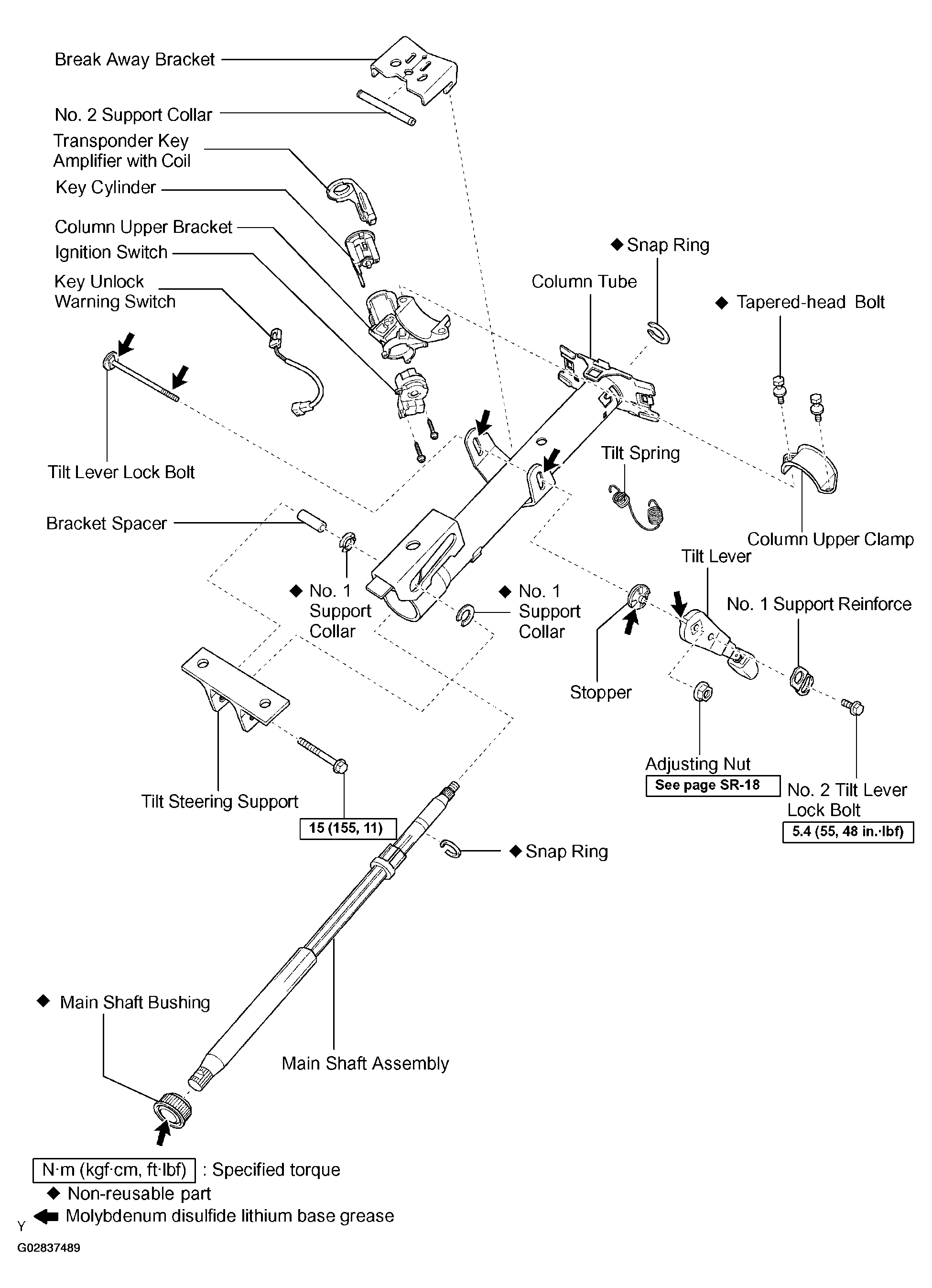

Fig 2: Exploded View Of Tilt Steering Column Components (2 Of 2)
G02837489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
