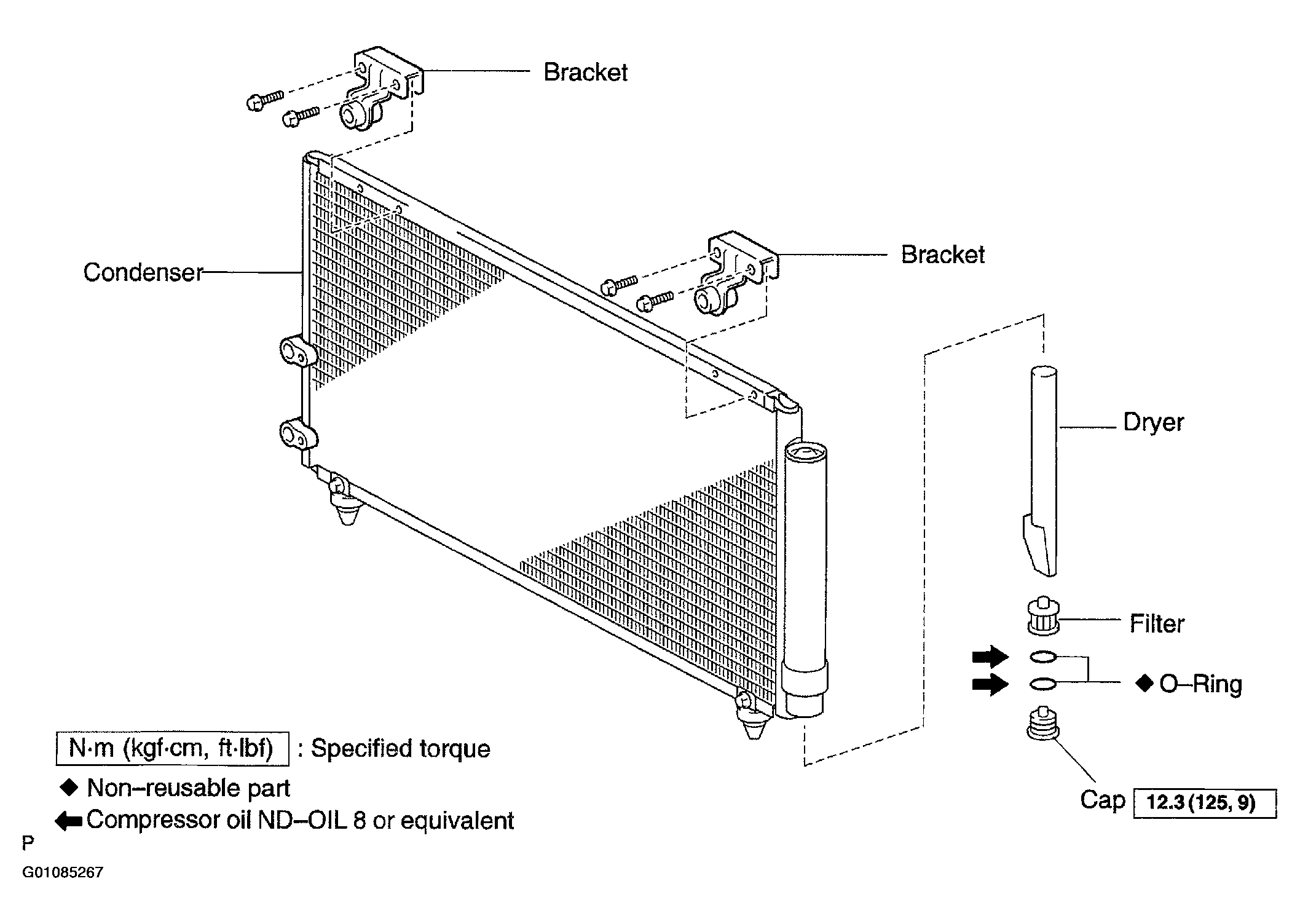

Section 43 (Manual A/C-Heater Systems): Condenser: Components

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
