Inspect Radio Receiver Assembly Circuit

Disconnect the connectors from the radio receiver assembly, and inspect the connector on the wire harness side.

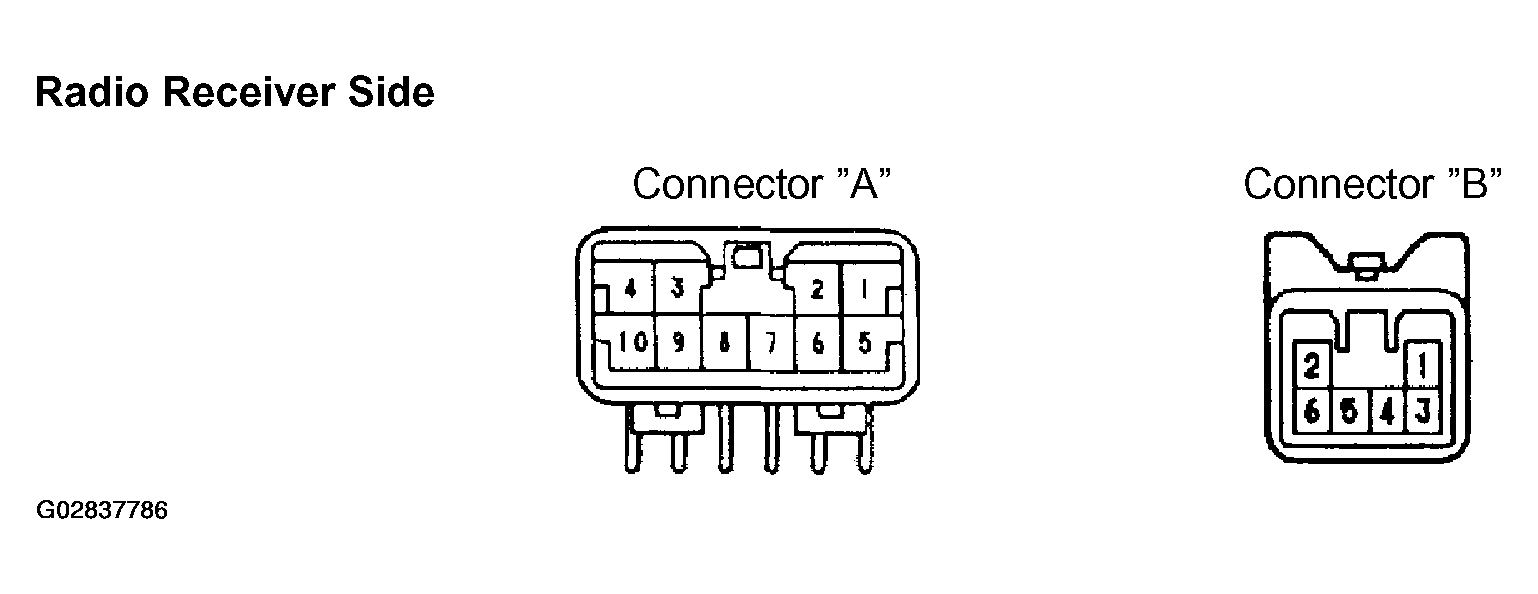

Fig 1: Identifying Radio Receiver Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

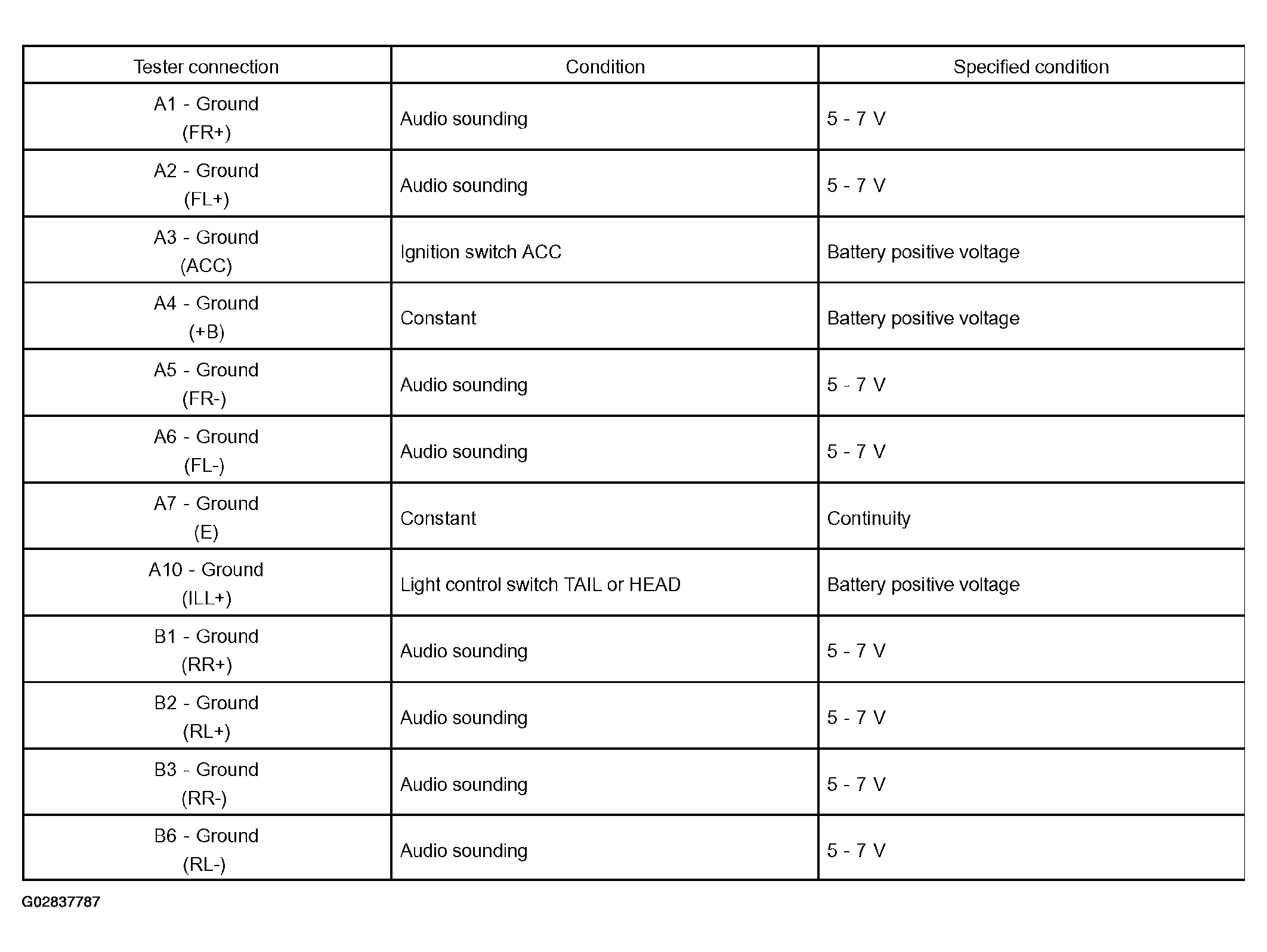

Fig 2: Radio Receiver Assembly Connector Terminals Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the circuit is not as specified, inspect the circuits connected to other parts.
