Oil Cooler: Removal

  1. DRAIN ENGINE COOLANT
  2. REMOVE OIL FILTER (See  REPLACEMENT  )
  3. REMOVE OIL COOLER
    1. Disconnect the 2 oil cooler hoses from the oil cooler.
    2. Remove the union bolt, plate washer and the oil cooler.

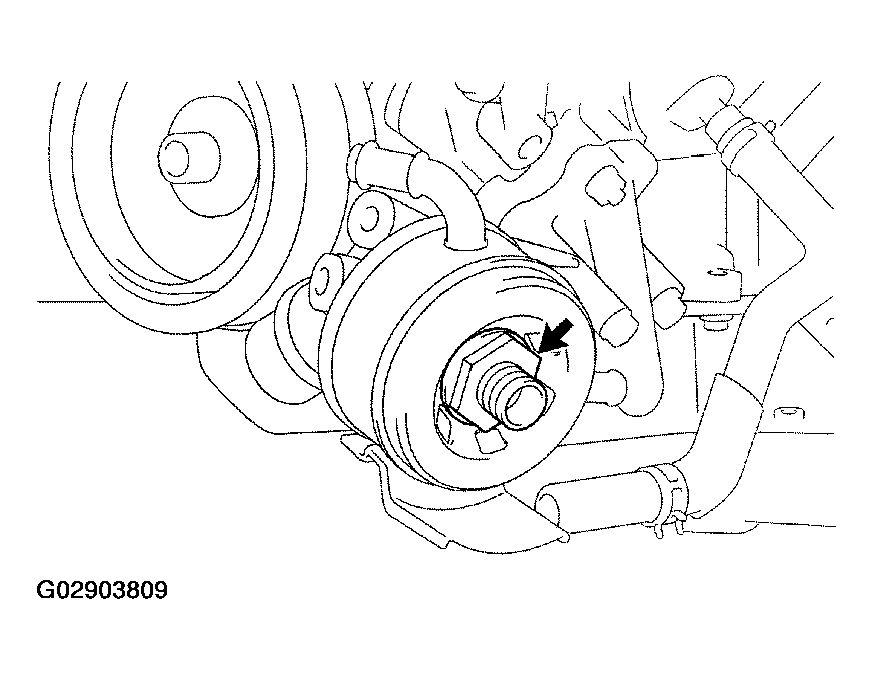

      Fig 1: Removing Union Bolt
      G02903809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the oil cooler.
