Oil Cooler: Installation

  1. INSTALL OIL COOLER
    1. Clean the oil cooler contact surface on the cooler mounting.
    2. Install a new O-ring to the oil cooler.
      Fig 1: Installing New O-Ring To Oil Cooler
      G02903811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply a light coat of engine oil on the threads and under the head of the union bolt.
    4. Install the plate washer and union bolt.
      1. Torque: 68.6 N.m (700 kgf.cm, 51 ft.lbf)

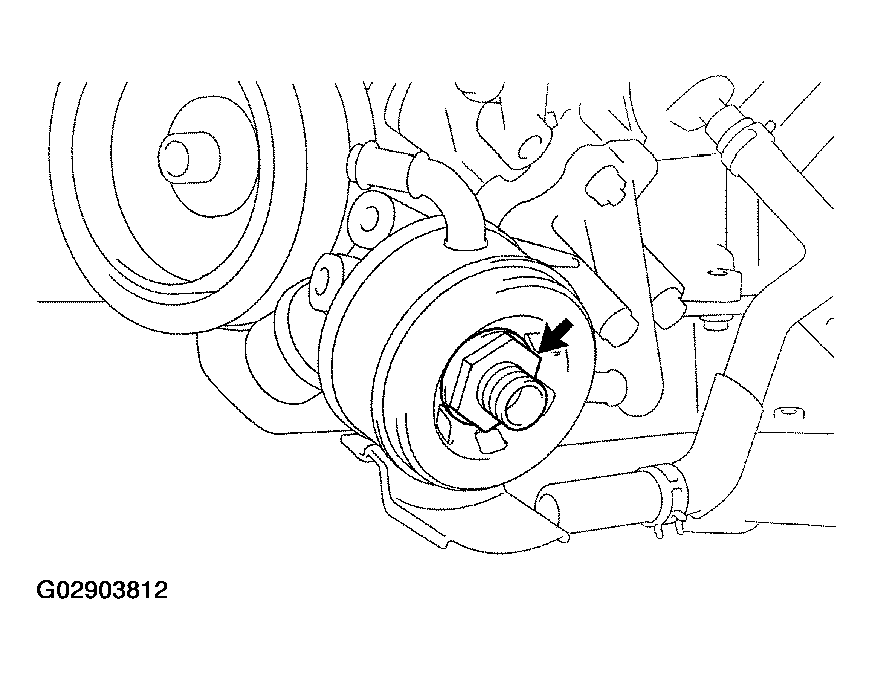

      Fig 2: Installing Plate Washer & Union Bolt
      G02903812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the 2 oil cooler hoses to the oil cooler.
  2. INSTALL OIL FILTER (See  REPLACEMENT  )
  3. FILL WITH ENGINE COOLANT
  4. START ENGINE AND CHECK FOR ENGINE OIL LEAKS
  5. CHECK ENGINE OIL LEVEL
