Front Axle LH Hub Bolt: Replacement

NOTE: Replace the RH side by the same procedures with LH side.

REMOVE FRONT WHEEL
SEPARATE FRONT DISC BRAKE CALIPER ASSY LH (See REMOVAL )
REMOVE FRONT DISC
REMOVE FRONT AXLE LH HUB BOLT
1. Using SST and a screwdriver or an equivalent to hold, remove the hub bolt.

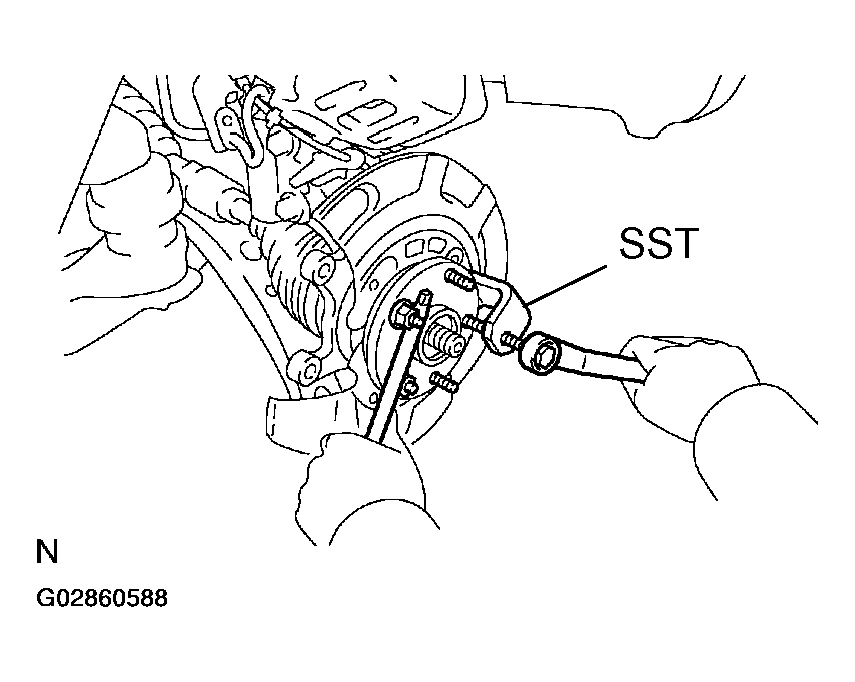

  Fig 1: Removing Front Axle LH Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09628-10011
INSTALL FRONT AXLE LH HUB BOLT
1. Install a washer and nut to a new hub bolt as shown in Fig 2.

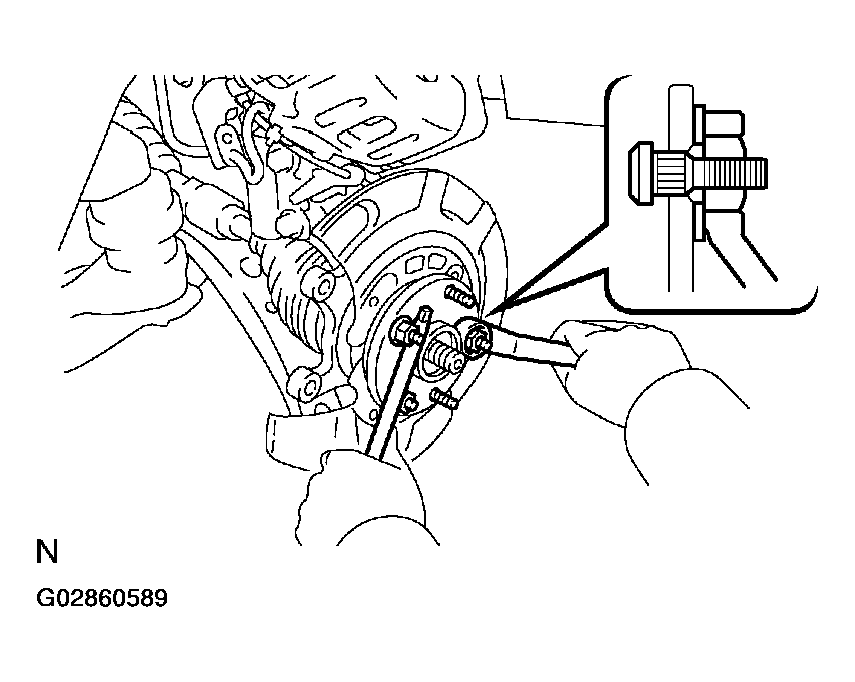

  Fig 2: Installing Front Axle LH Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver to hold, install the hub bolt by torquing the nut.
INSTALL FRONT DISC
INSTALL FRONT DISC BRAKE CALIPER ASSY LH (See INSTALLATION )
INSTALL FRONT WHEEL
Torque: 103 N.m (1, 050 kgf.cm, 76 ft.lbf)
