Power Steering: Components

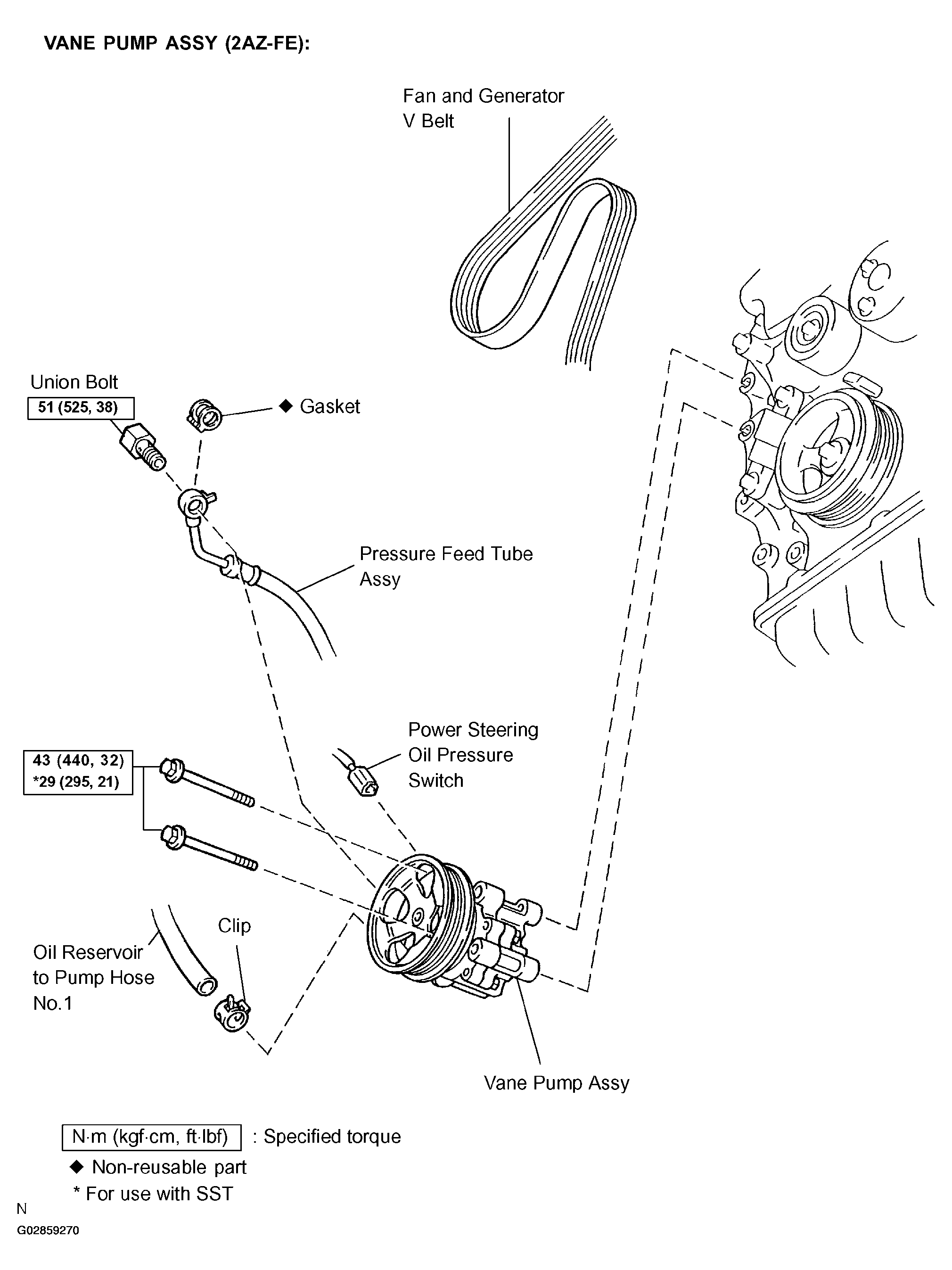

Fig 1: Identifying Power Steering Vane Pump Assembly (2AZ-FE) Components (1 Of 2)
G02859270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

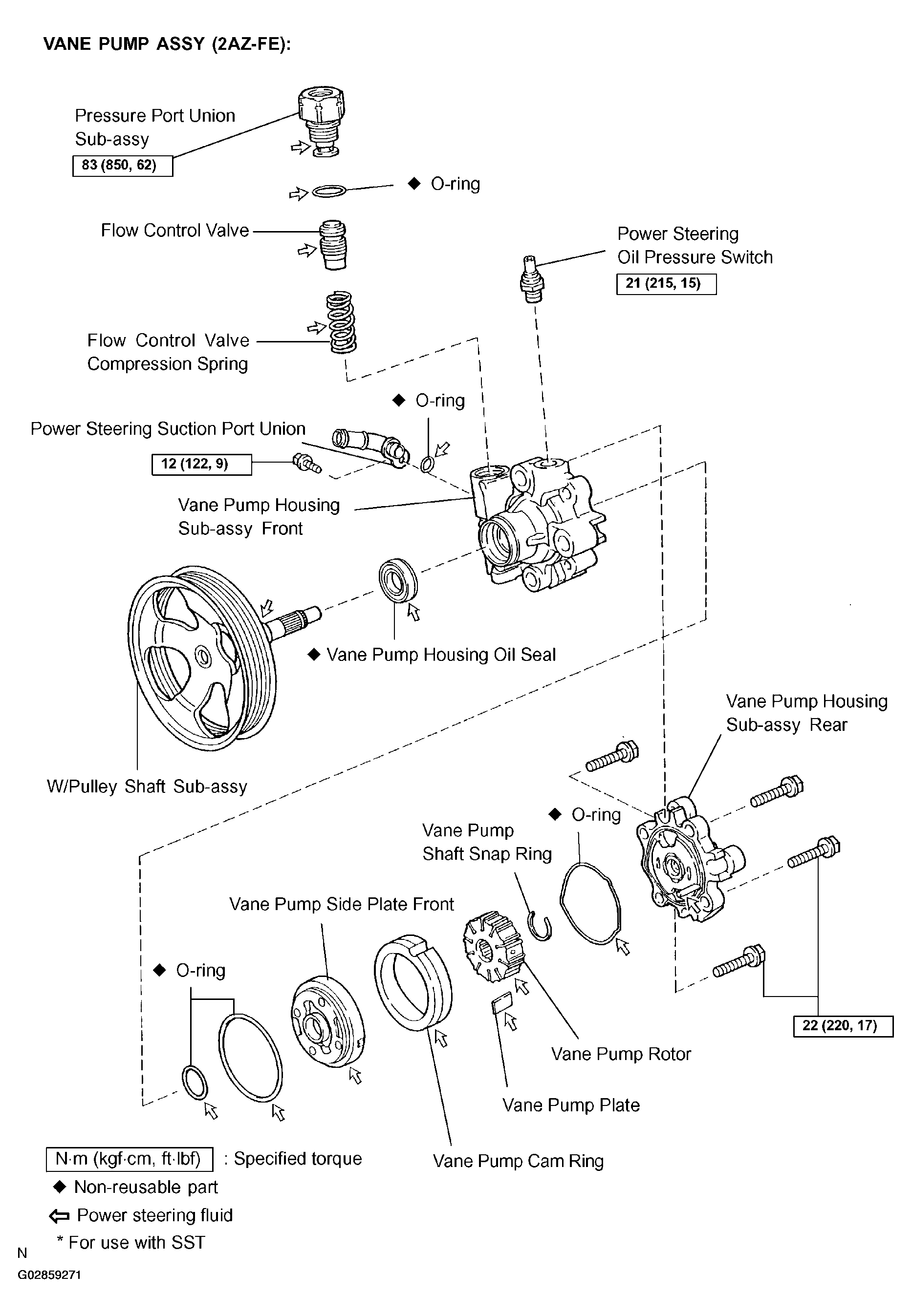

Fig 2: Identifying Power Steering Vane Pump Assembly (2AZ-FE) Components (2 Of 2)
G02859271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

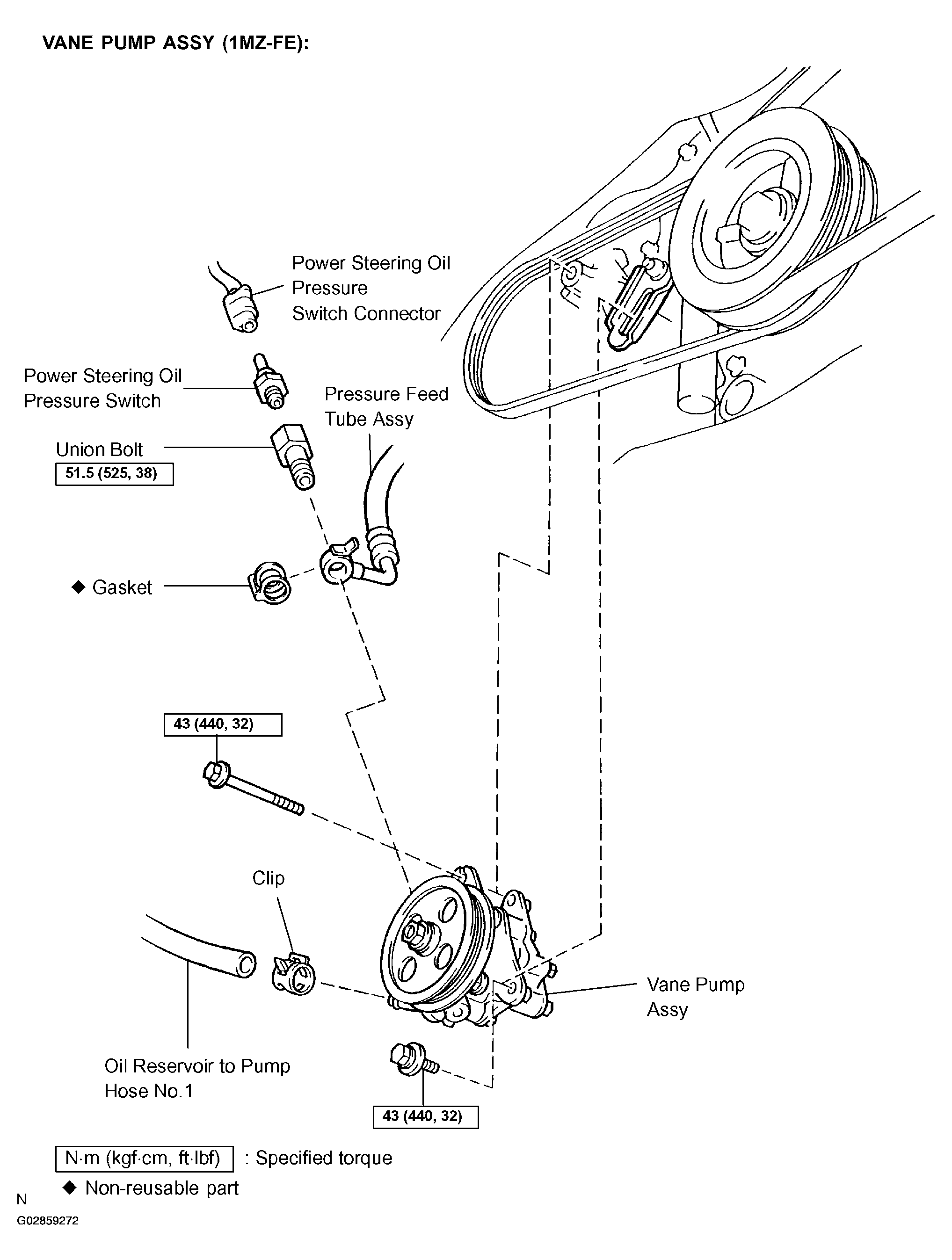

Fig 3: Identifying Power Steering Vane Pump Assembly (1MZ-FE) Components (1 Of 2)
G02859272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

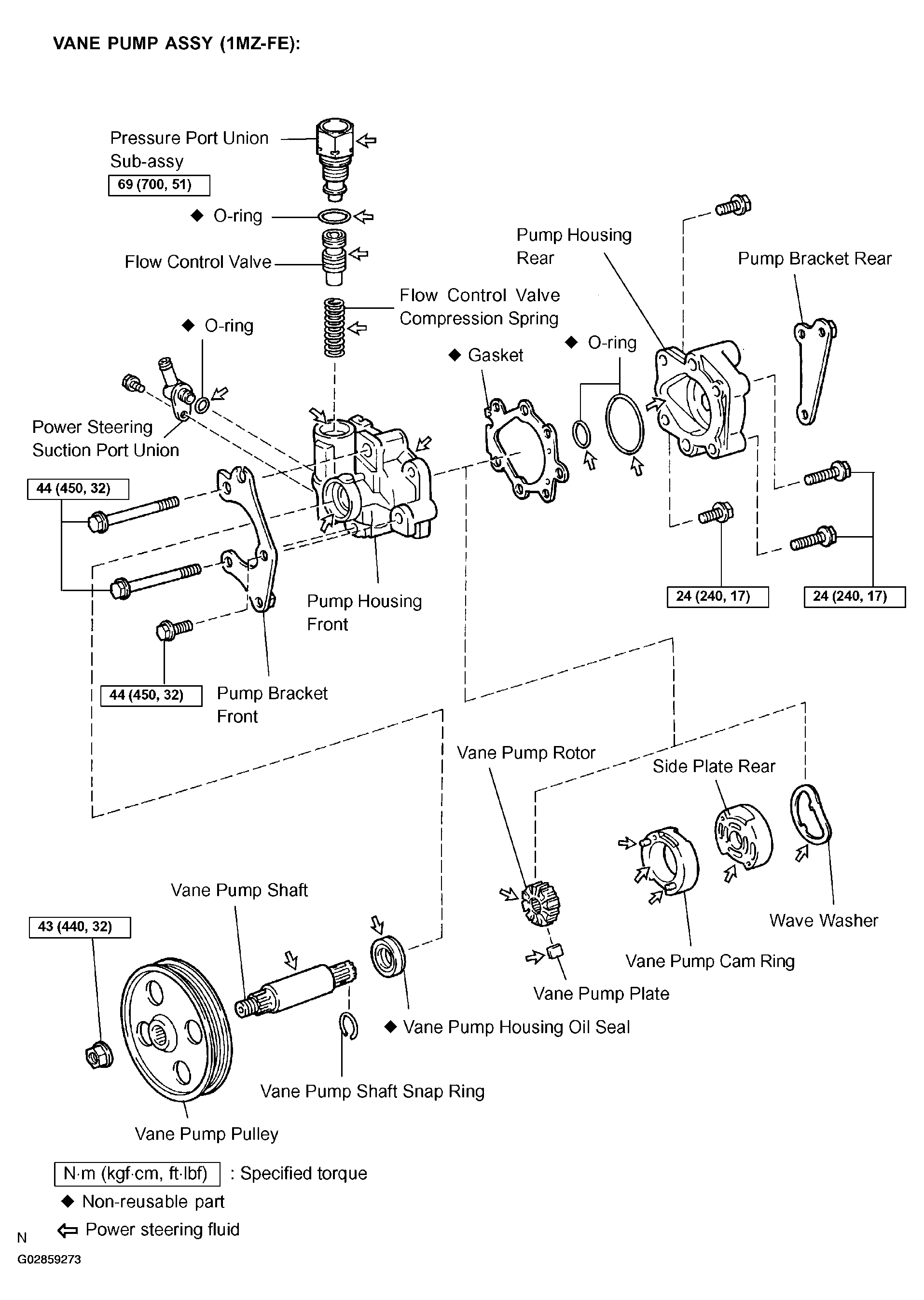

Fig 4: Identifying Power Steering Vane Pump Assembly (1MZ-FE) Components (2 Of 2)
G02859273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

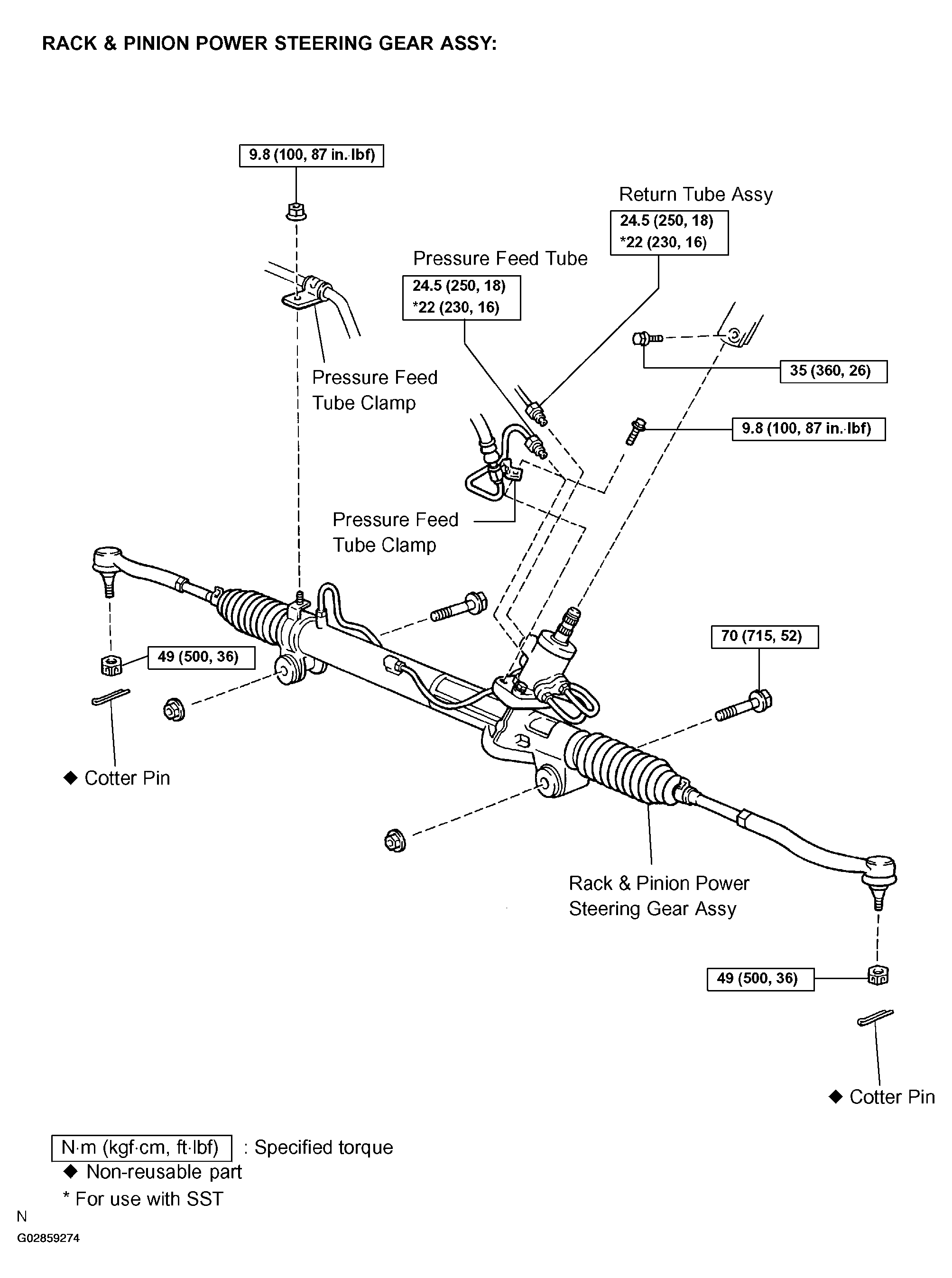

Fig 5: Identifying Power Steering Rack And Pinion Gear Assembly Components (1 Of 3)
G02859274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

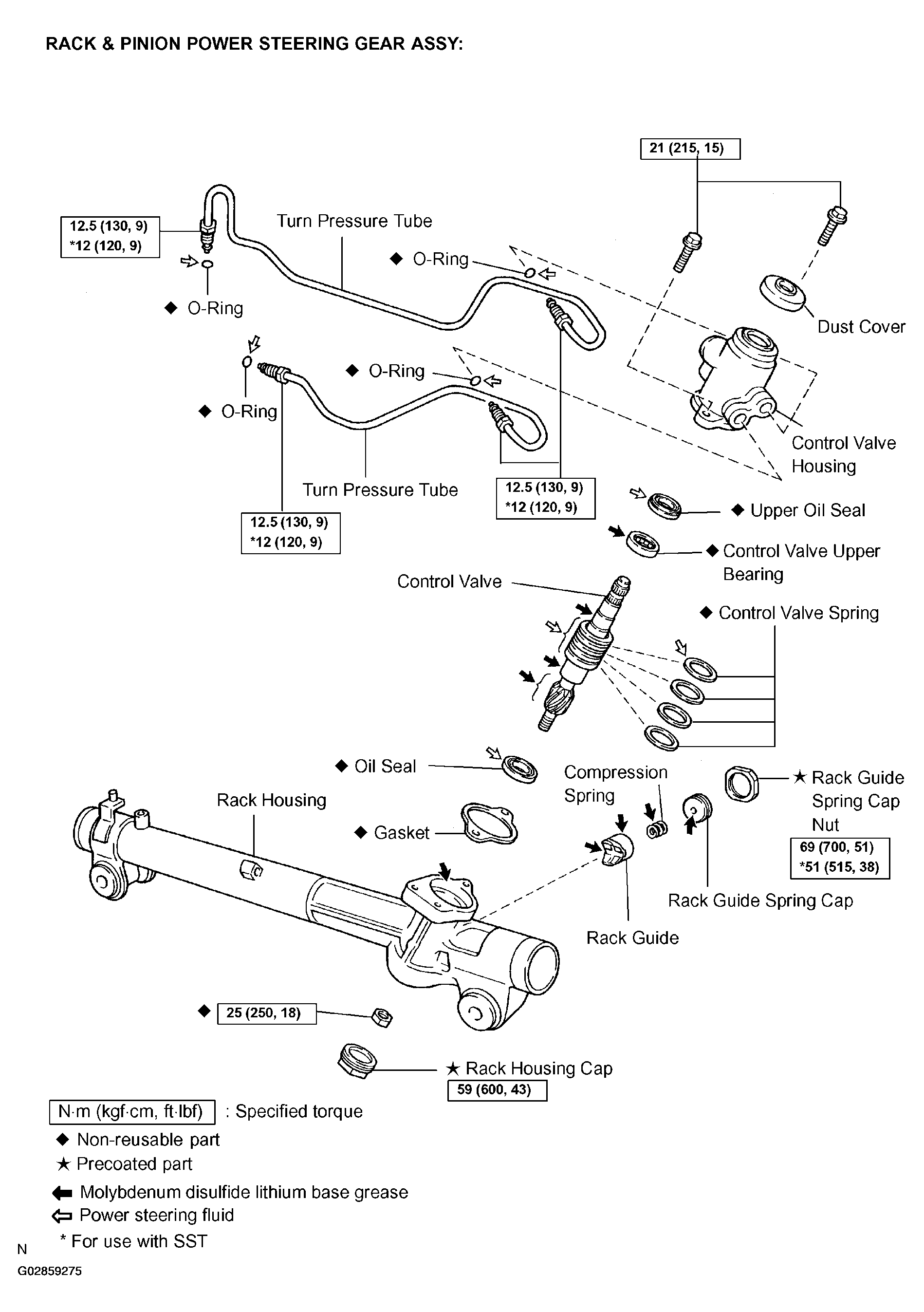

Fig 6: Identifying Power Steering Rack And Pinion Gear Assembly Components (2 Of 3)
G02859275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

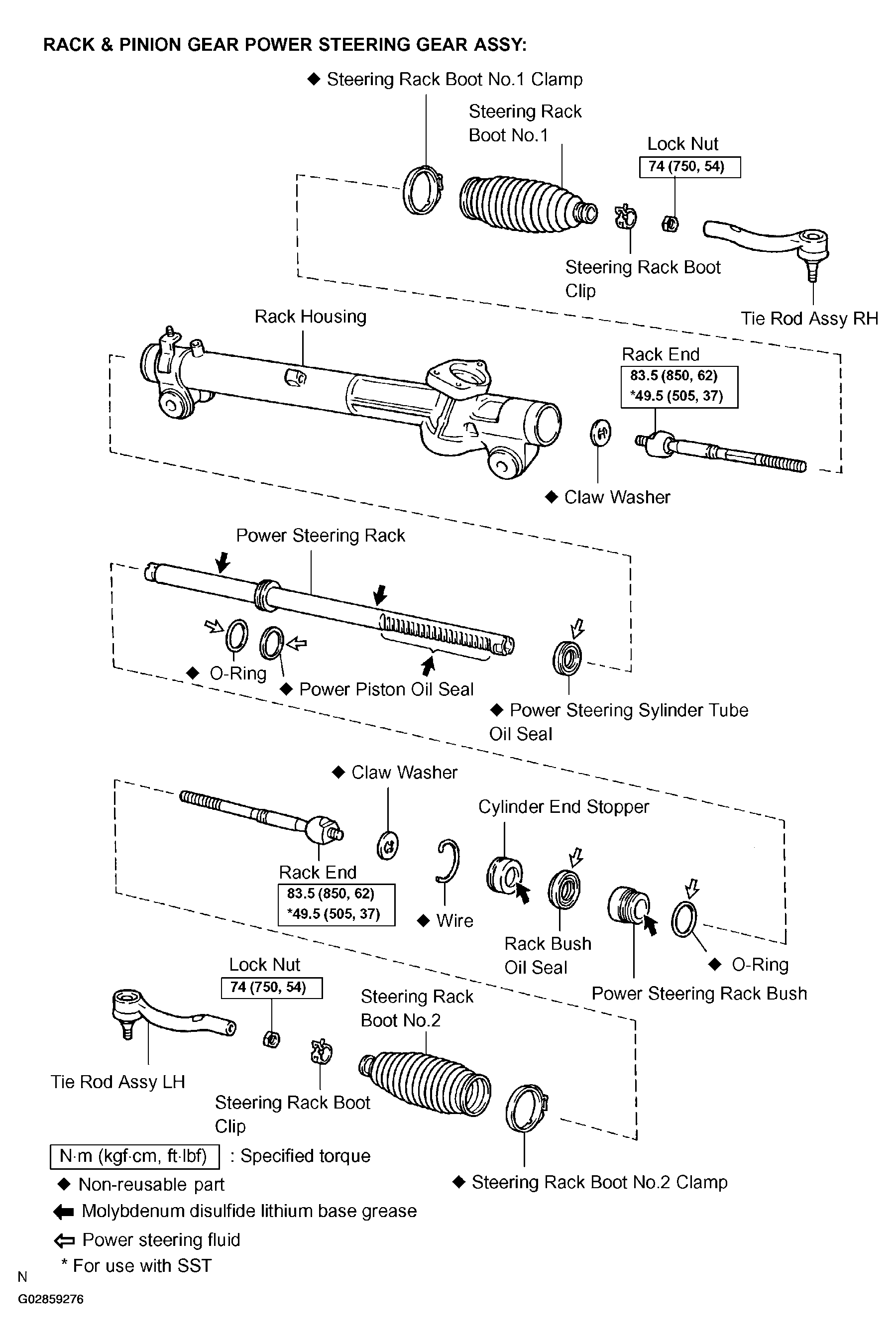

Fig 7: Identifying Power Steering Rack And Pinion Gear Assembly Components (3 Of 3)
G02859276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
