Section 618 (Instrument Panel/Meter)
>>
Instrument Panel/Meter
>>
Components
Instrument Panel/Meter: Components
WARNING:
This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

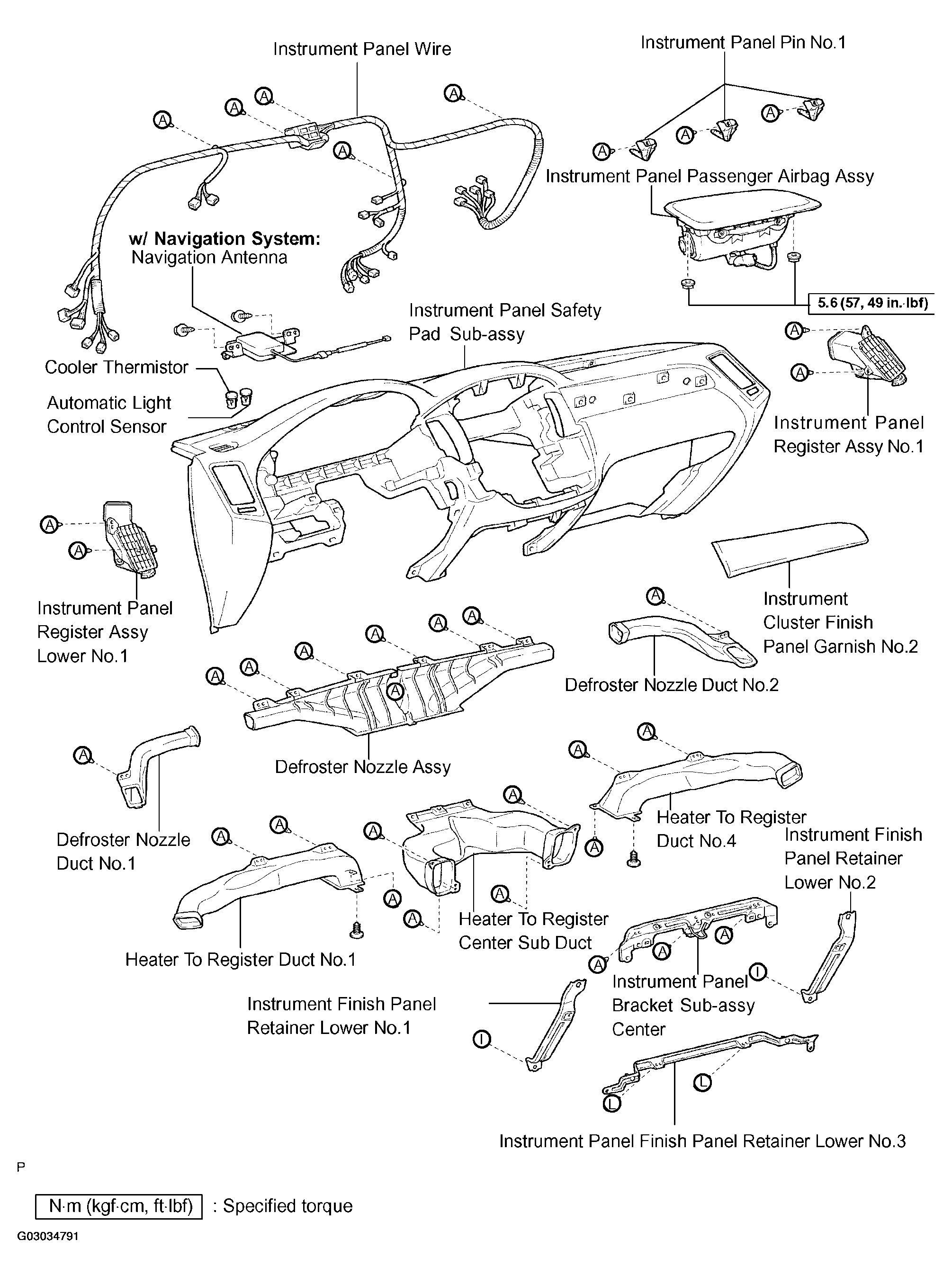

Fig 1: Identifying Instrument Panel\Meter Components (1 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

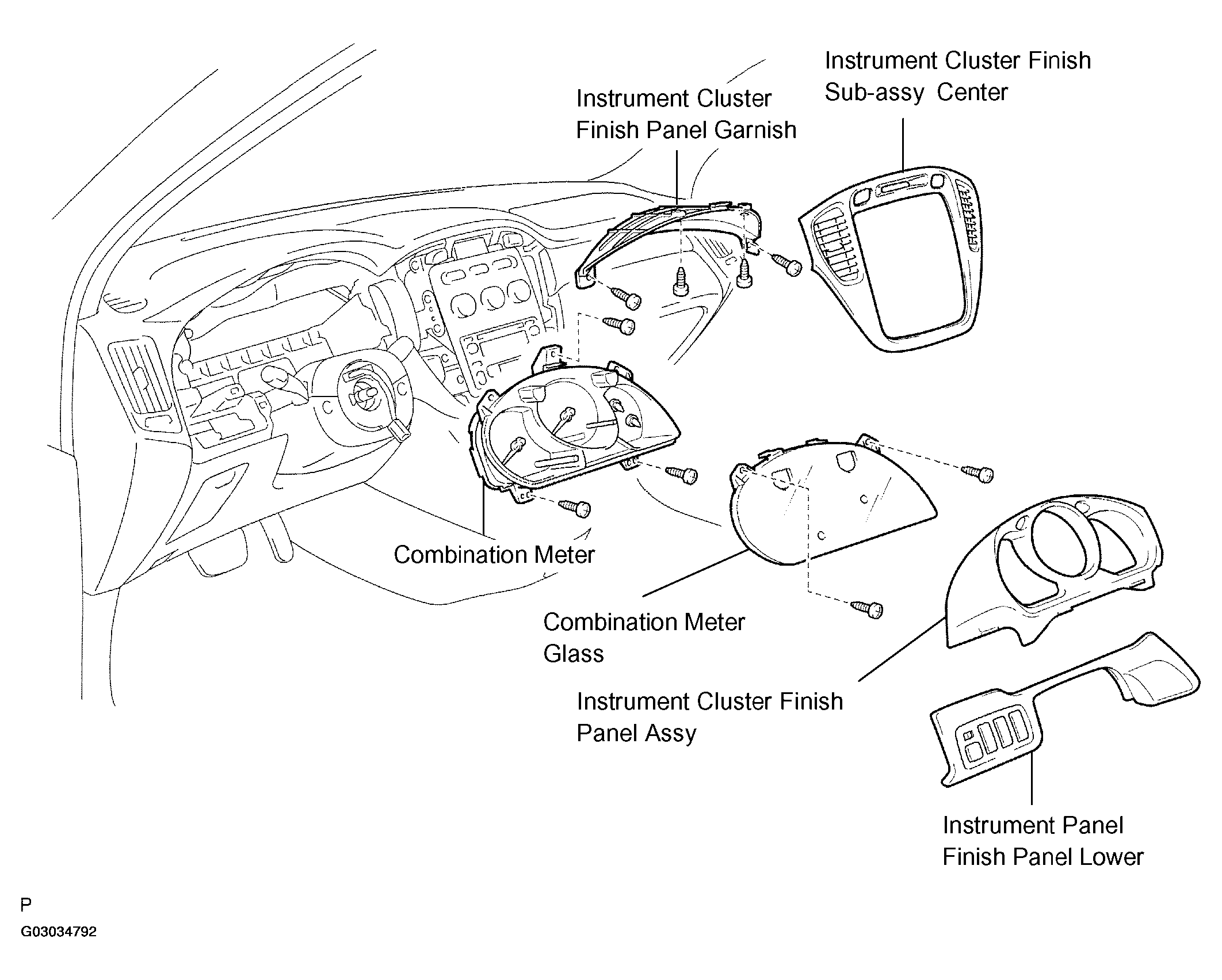

Fig 2: Identifying Instrument Panel\Meter Components (2 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

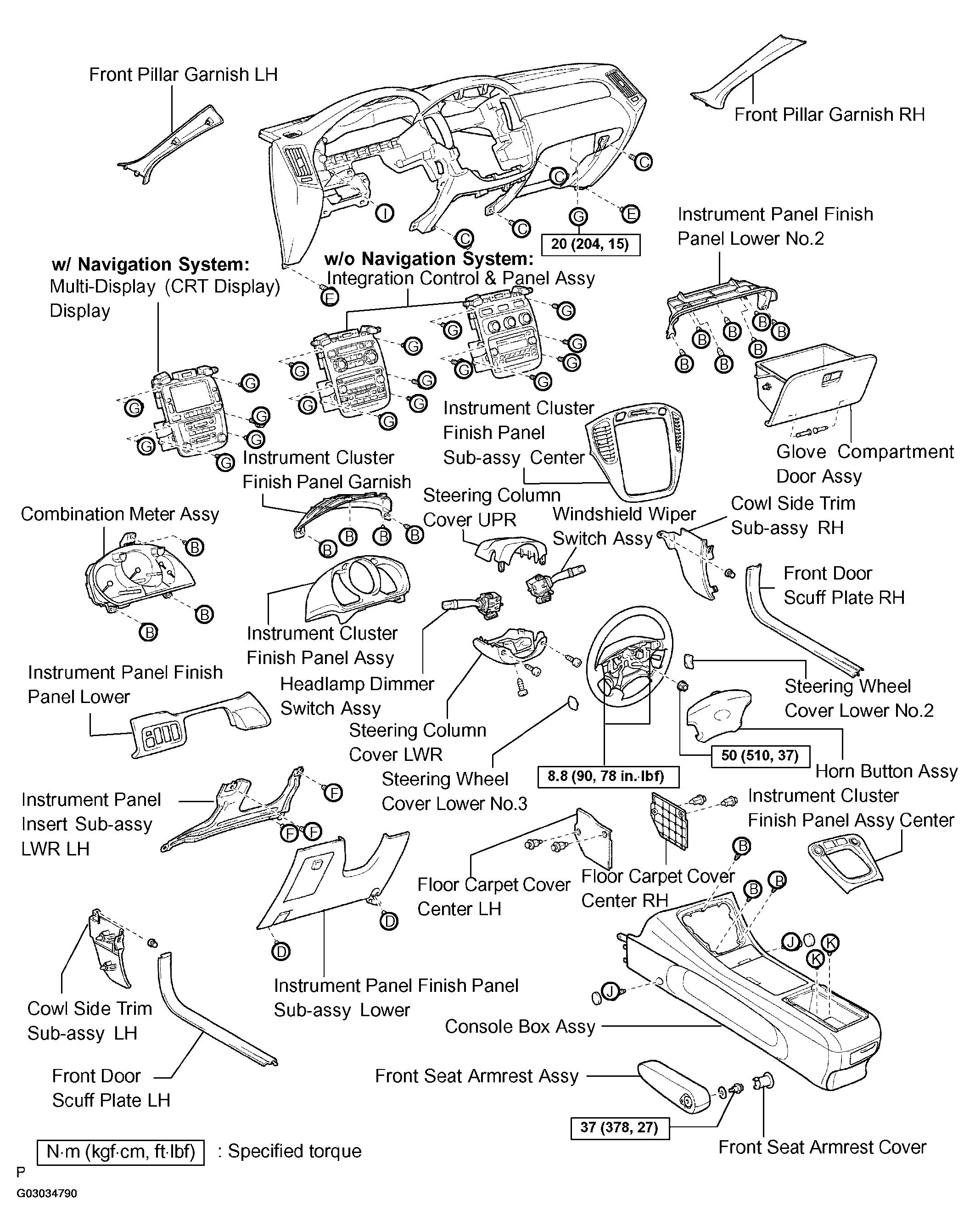

Fig 3: Identifying Instrument Panel\Meter Components (3 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
