Circuit Description

For circuit description, see Fig 1. Detecting condition of DTC is when there is no vehicle speed sensor signal to the ECM under the following conditions (2 trip detection logic):

• Vehicle is being driven.
• Clutch or brake slips or gear is broken (2 trip detection logic).

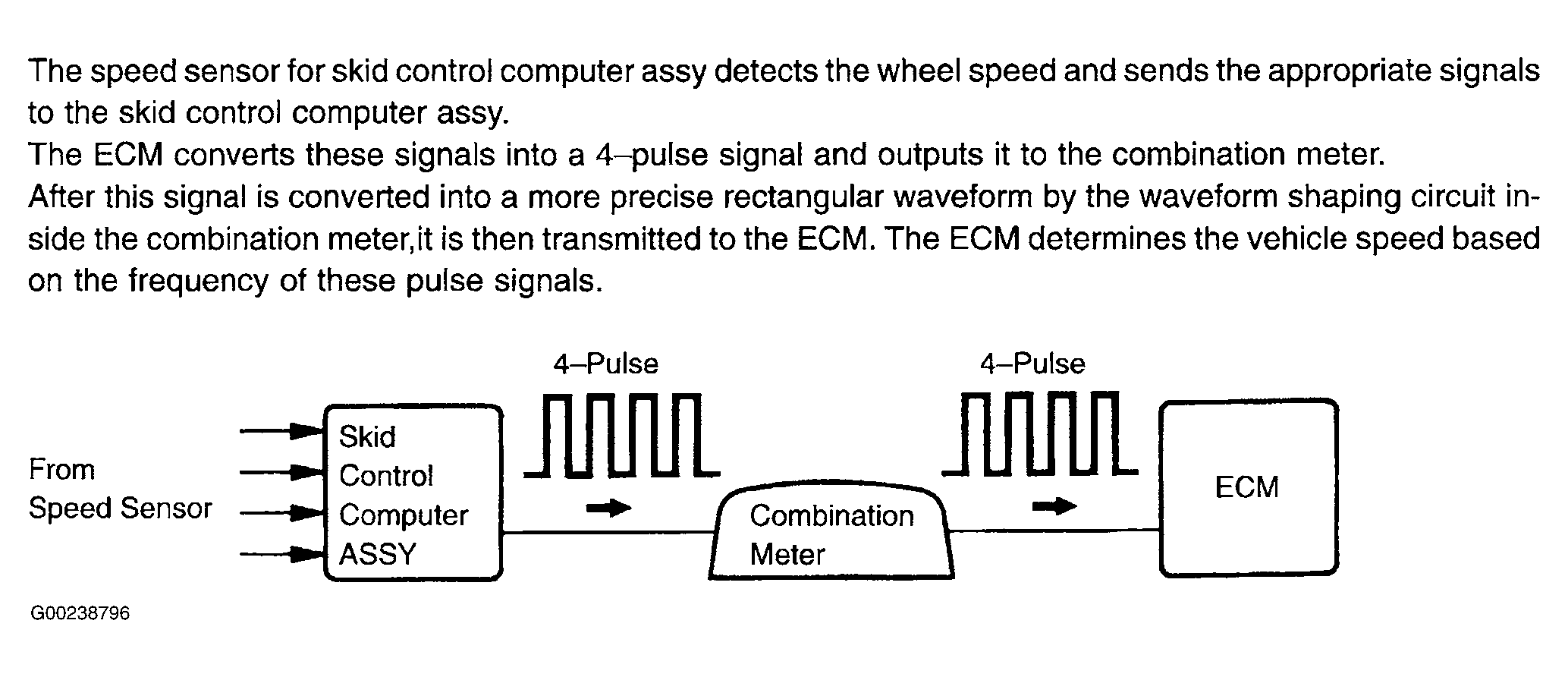

Fig 1: DTC P0500 Circuit Description

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
