Confirmation Driving Pattern

For confirmation driving pattern, see Fig 1.

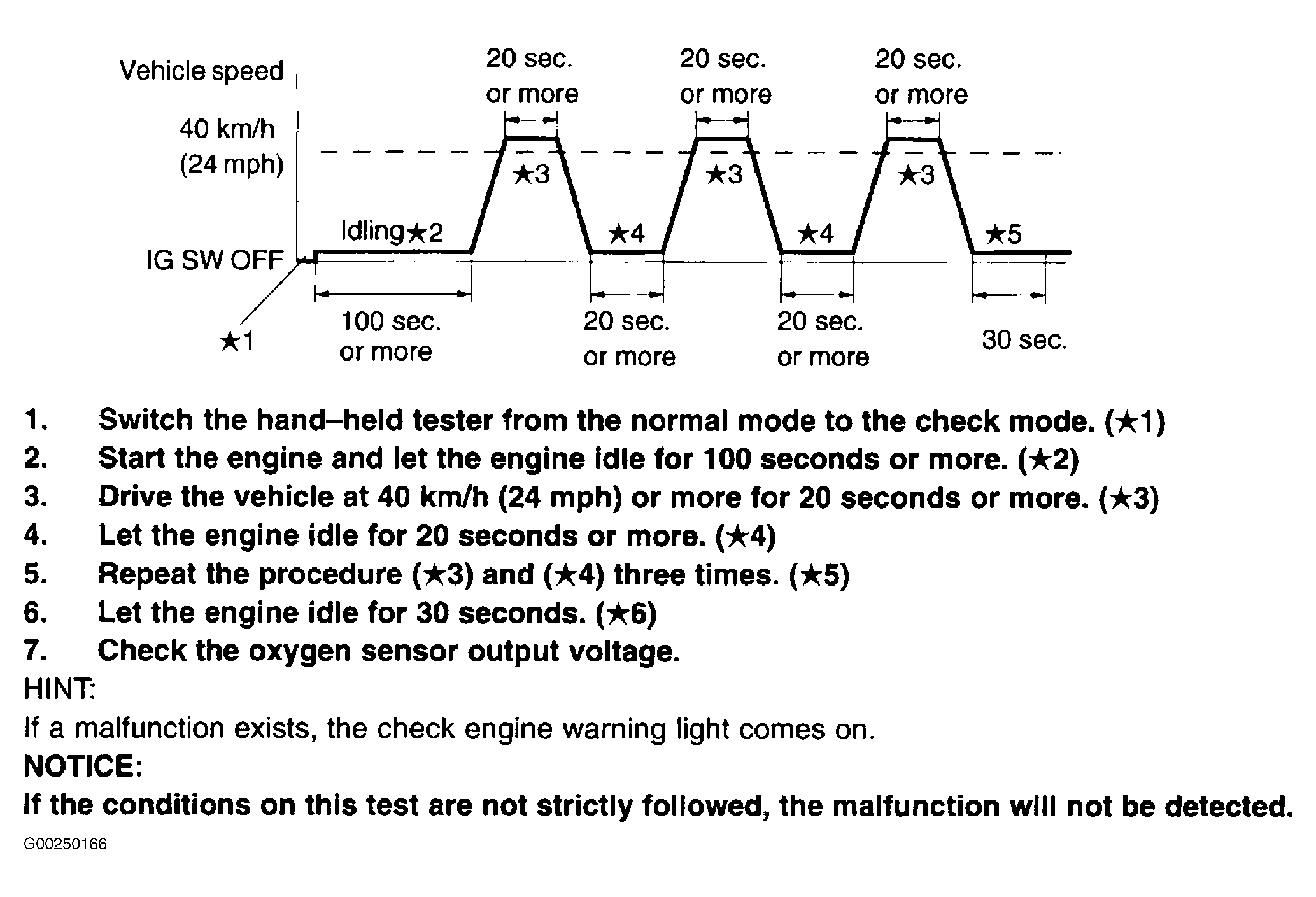

Fig 1: DTC P0125 Confirmation Driving Pattern
G00250166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
