Instrument Panel Safety Pad Sub-ASSY: Components

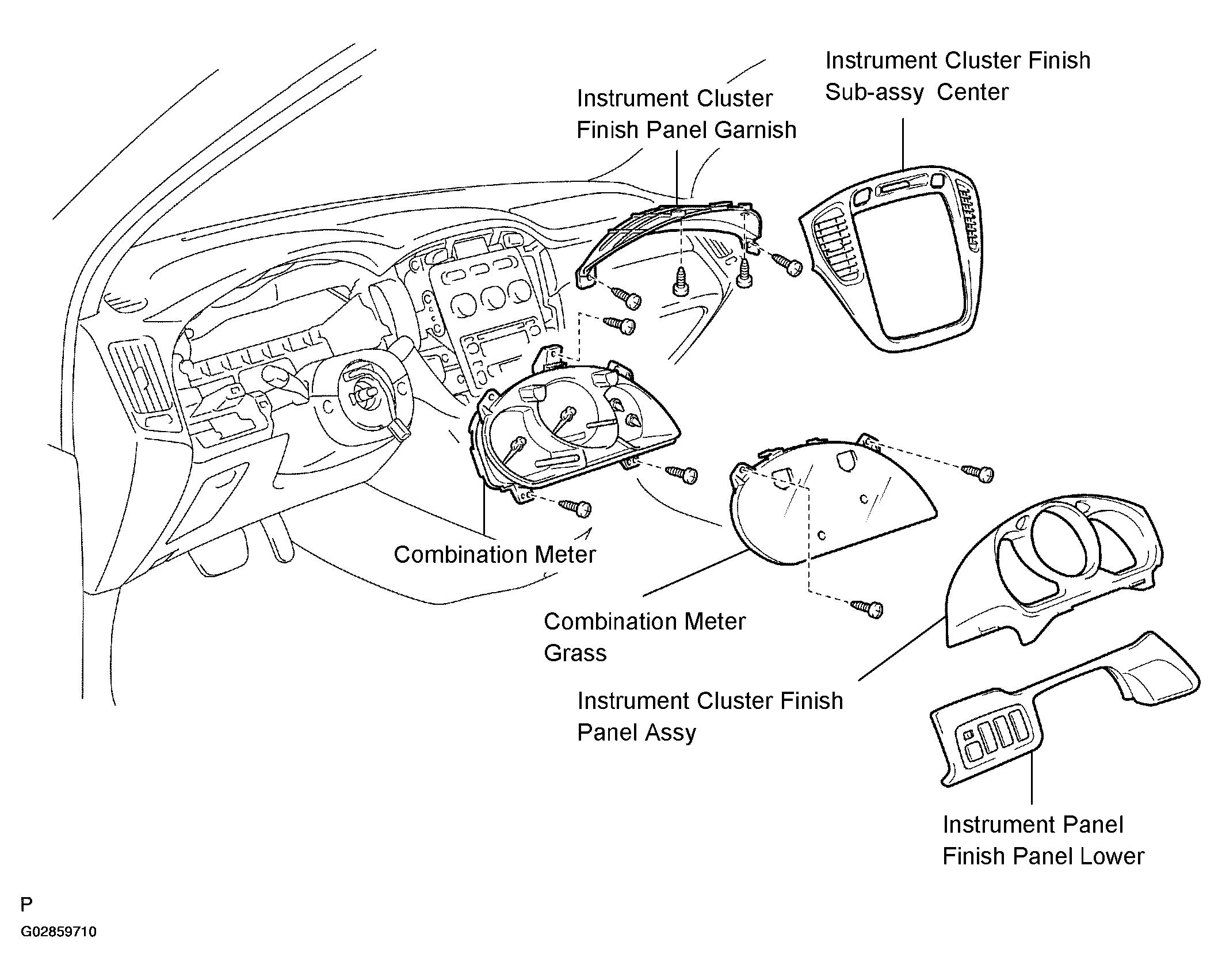

Fig 1: Identifying Instruments Panel Safety Pad Sub-Assy Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

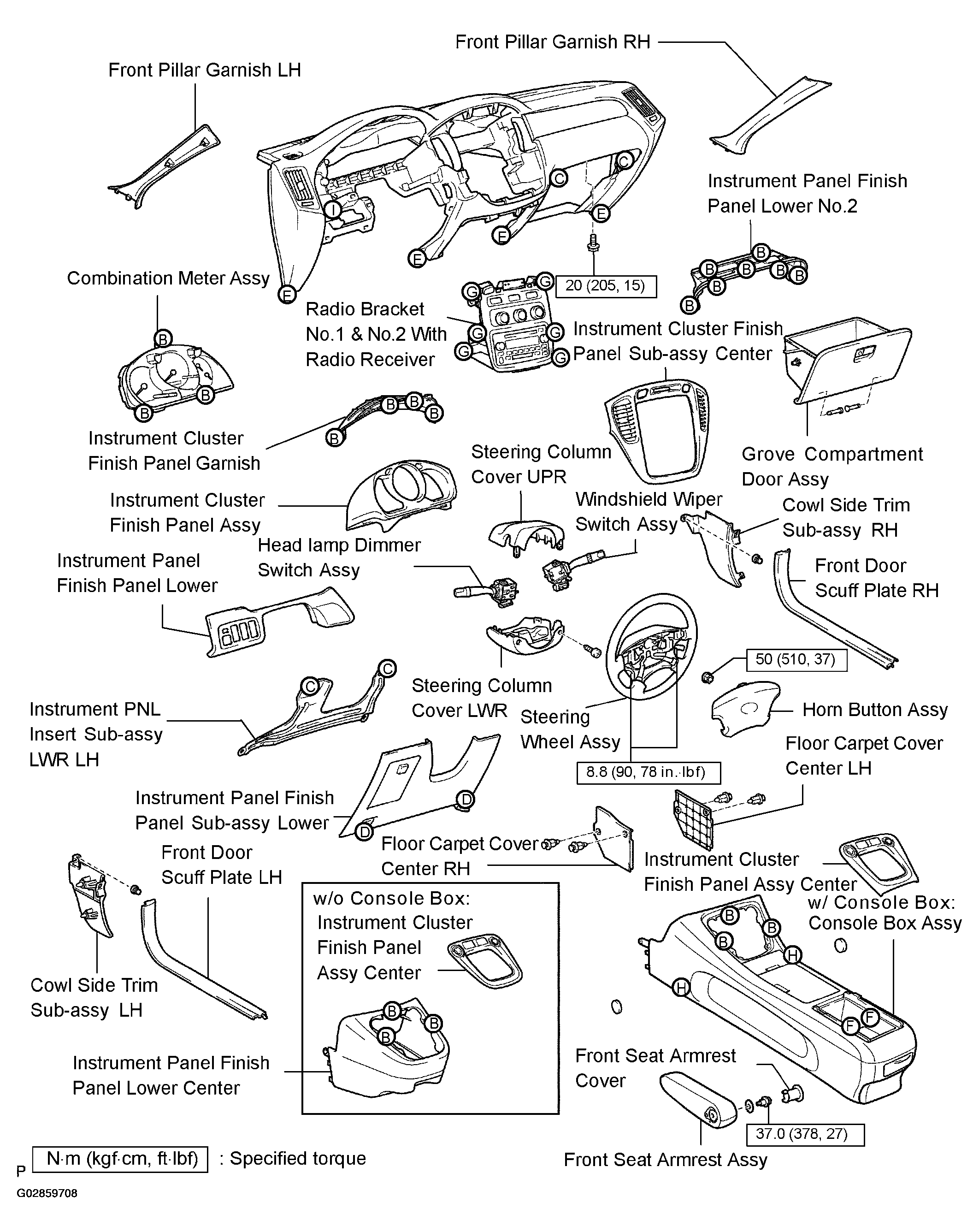

Fig 2: Identifying Instruments Panel Safety Pad Sub-Assy Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

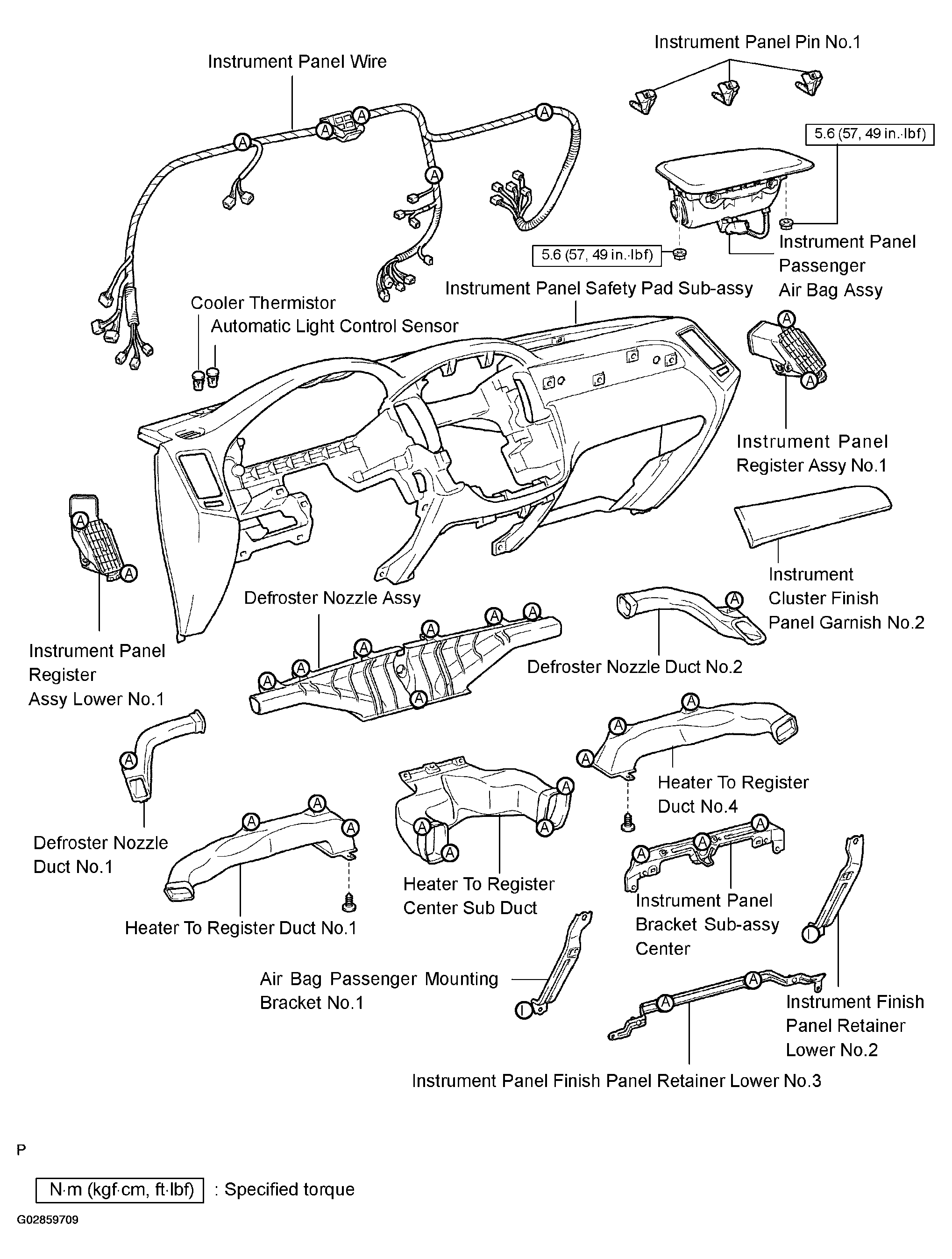

Fig 3: Identifying Instruments Panel Safety Pad Sub-Assy Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
