Home >> Toyota >> 2003 >> Highlander Limited, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Rear Seat Assembly >> Components

Rear Seat Assembly: Components

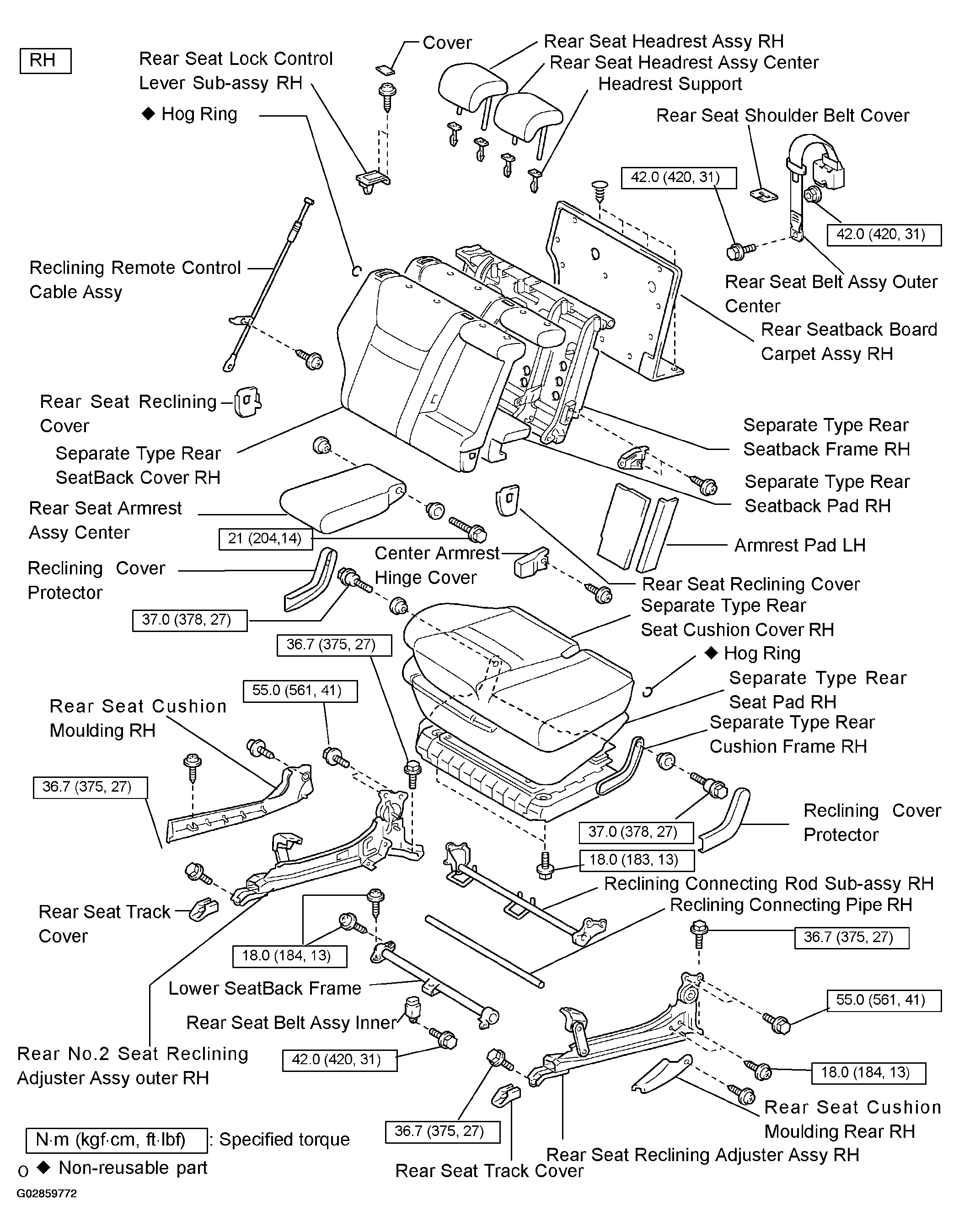

Fig 1: Identifying Rear Seat Assembly Components (RH)
G02859772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

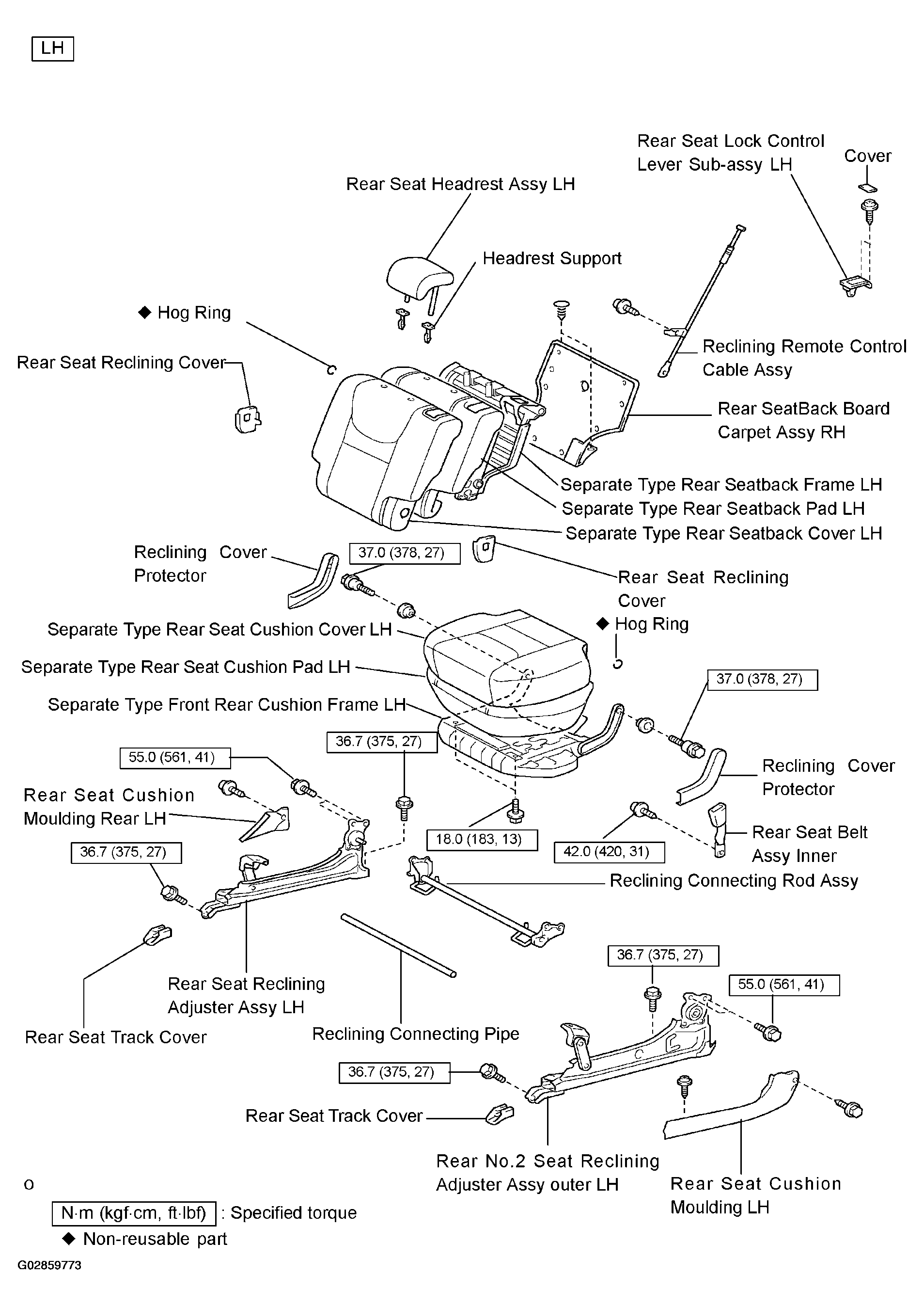

Fig 2: Identifying Rear Seat Assembly Components (LH)
G02859773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
