Front Seat: Components

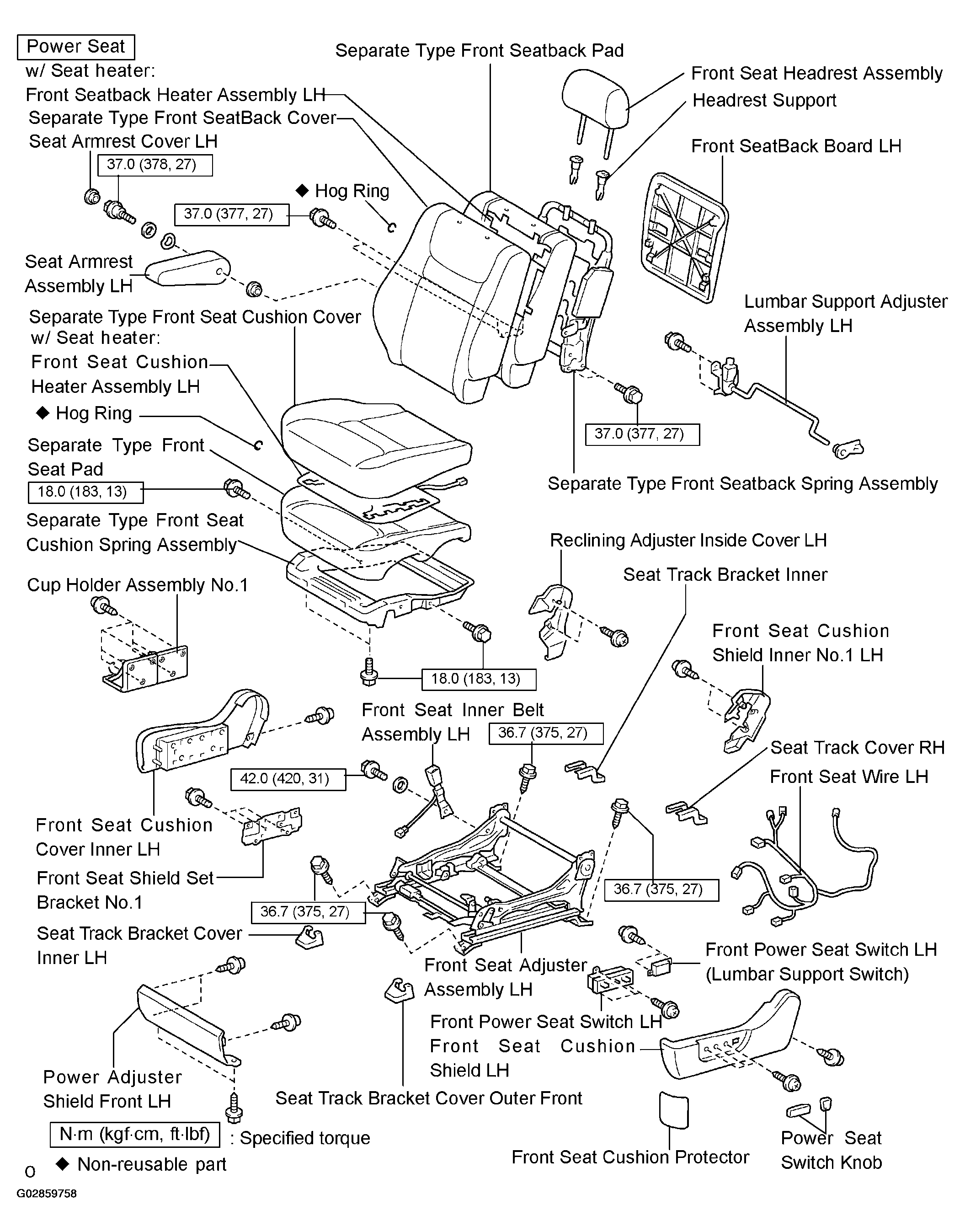

Fig 1: Identifying Power Front Seat Components
G02859758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

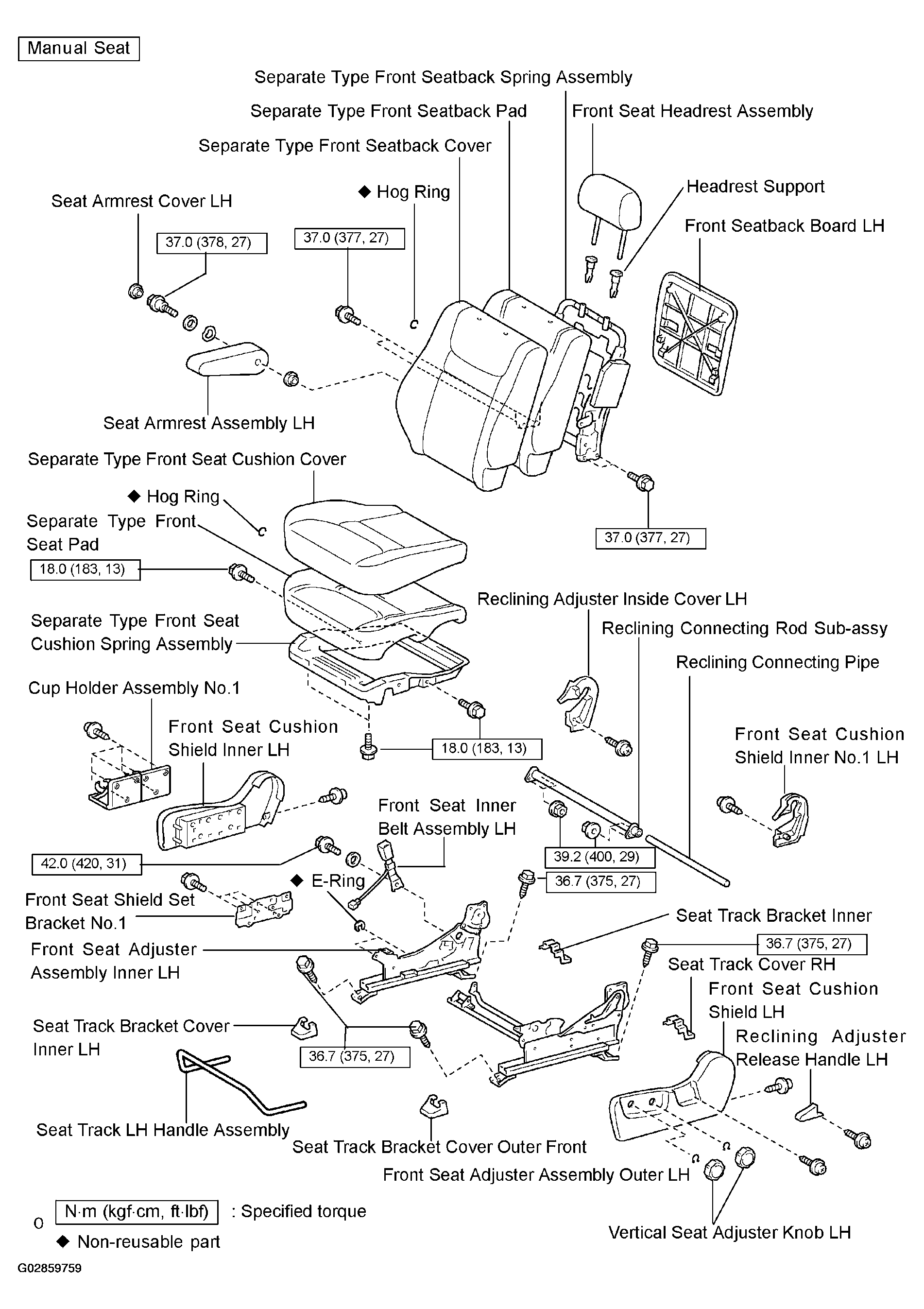

Fig 2: Identifying Manual Front Seat Components
G02859759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
