Home >> Toyota >> 2003 >> Highlander Limited, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Wireless Door Lock Control System - Diagnostics >> Wireless Door Lock Control System >> Location

Wireless Door Lock Control System: Location

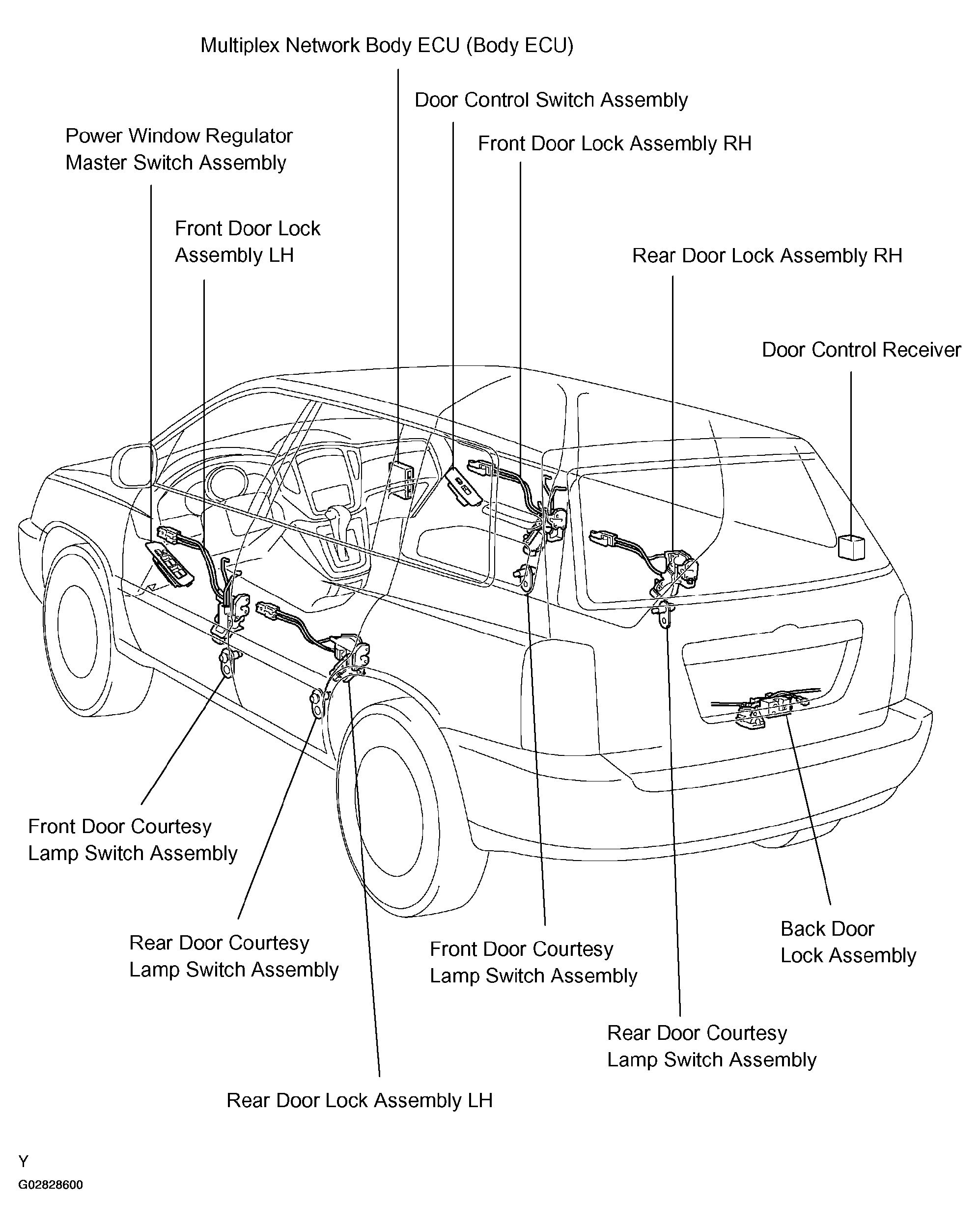

Fig 1: Locating Wireless Door Lock Control System Components

G02828600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
