Inspection Procedure

  1. INSPECT UN-LOCK WARNING SWITCH ASSEMBLY
    1. Check the continuity.

      Standard:

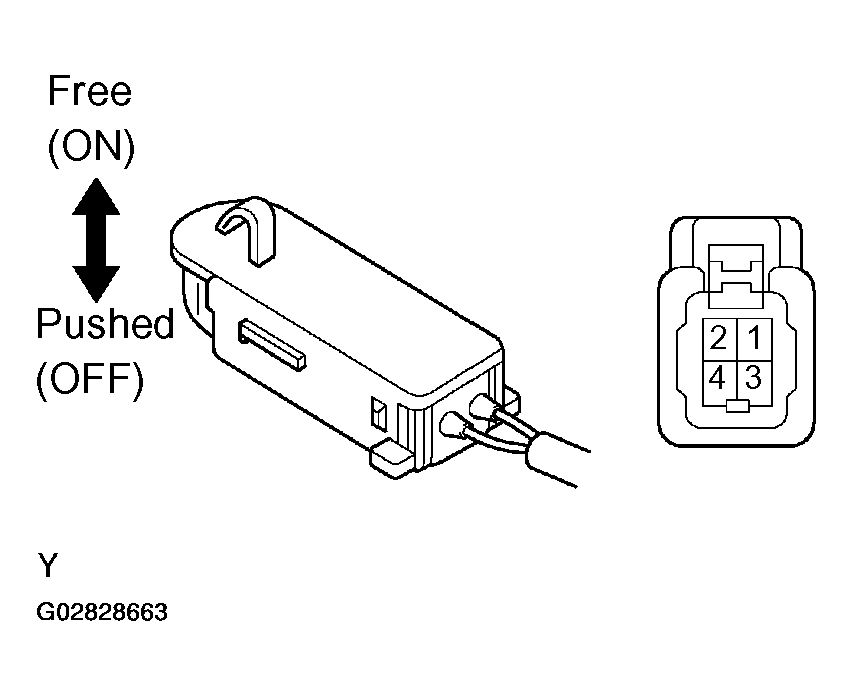

    Fig 1: Identifying Unlock Warning Switch & Connector Terminals
    G02828663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

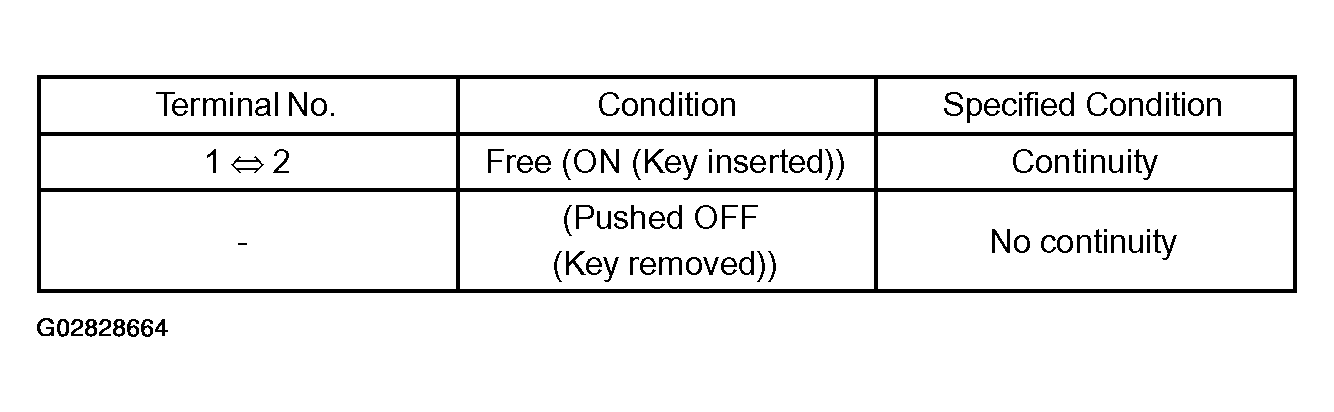

    Fig 2: Testing Unlock Warning Switch Continuity Table
    G02828664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPLACE UN-LOCK WARNING SWITCH ASSEMBLY
    2. OK : Go To Next step.
  2. CHECK WIRE HARNESS (UN-LOCK WARNING SWITCH ASSEMBLY - ECM)
    1. Disconnect the K4 switch connector.

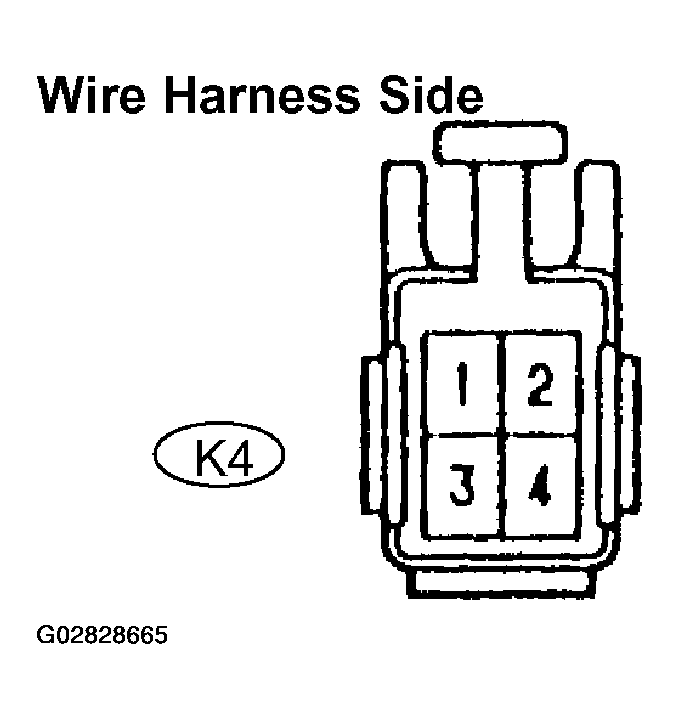

      Fig 3: Identifying Warning Switch Connector Terminals
      G02828665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the E6 ECM connector.

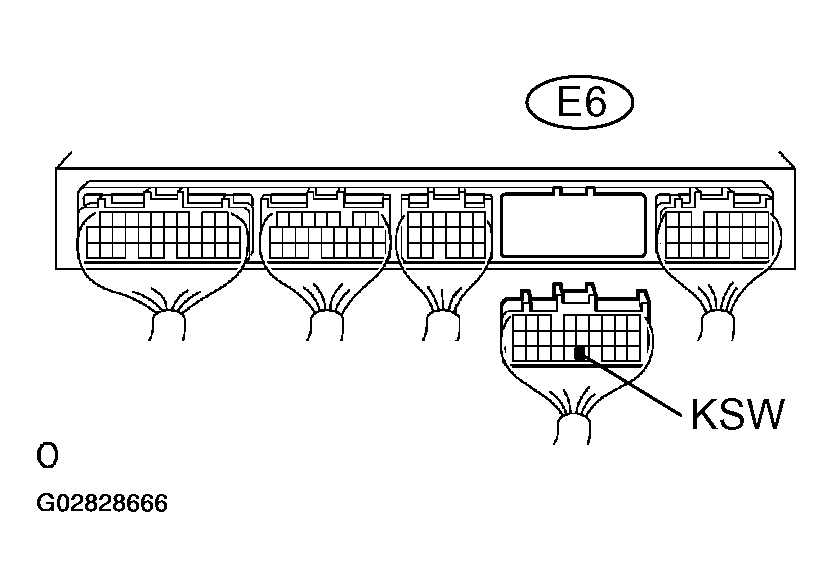

      Fig 4: Disconnecting ECM Connector E6
      G02828666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check the continuity between the wire harness side connectors.

      Standard:

    TESTING UN-LOCK WARNING SWITCH ASSEMBLY TO ECM CIRCUIT

    Symbols (Terminal No.) Specified Condition
    - (K4-2) <--> KSW (E6-23) Continuity
    1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK : CHECK AND REPLACE ECM
