Inspection Procedure
- CHECK SECURITY INDICATOR LAMP ASSEMBLY
- Remove the security indicator lamp assembly.

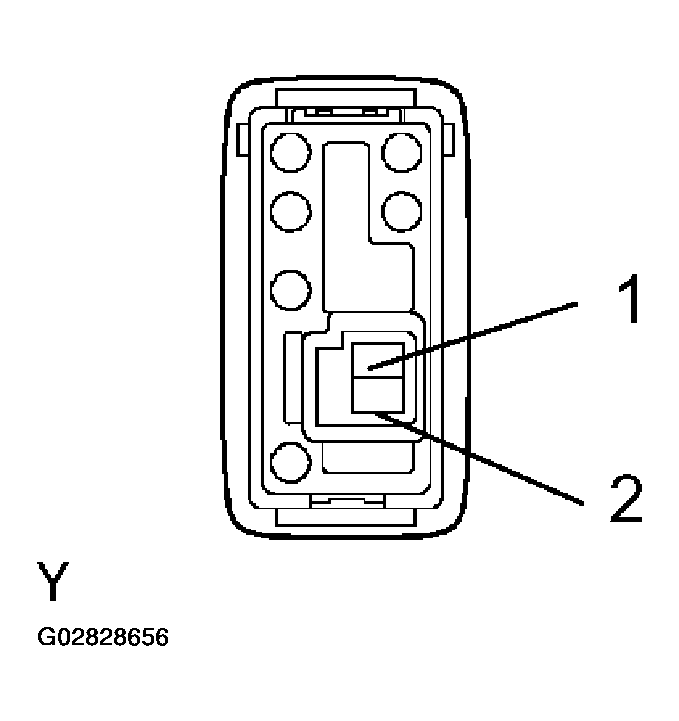

- Check that the security indicator lamp comes on when connecting the positive (+) lead to terminal 1 and the negative (-) lead to terminal 2 of the connector.

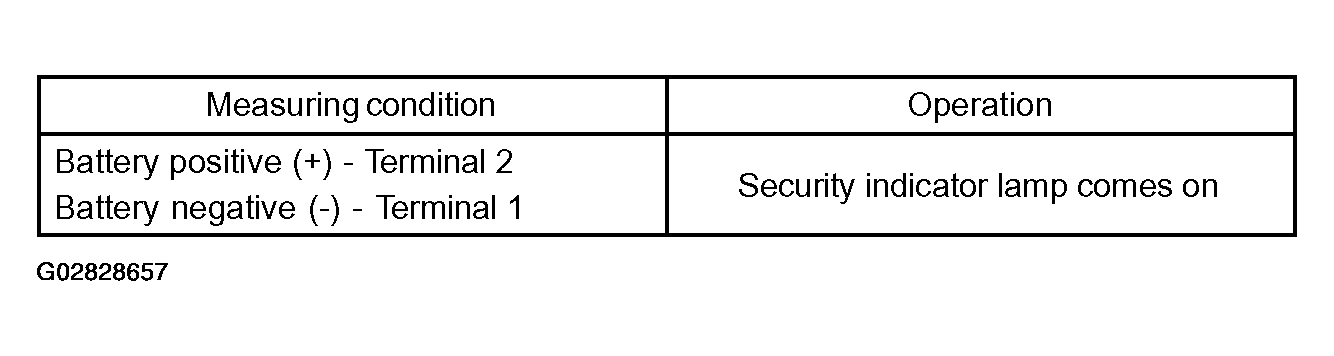

Standard:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG : REPLACE SECURITY INDICATOR LAMP ASSEMBLY
- OK : Go To Next step.
- CHECK WIRE HARNESS (ECM - SECURITY INDICATOR LAMP ASSEMBLY)
- Disconnect the E5*1
or E6*2
ECM connector.
*1: 1MZ-FE Engine
*2: 2AZ-FE Engine

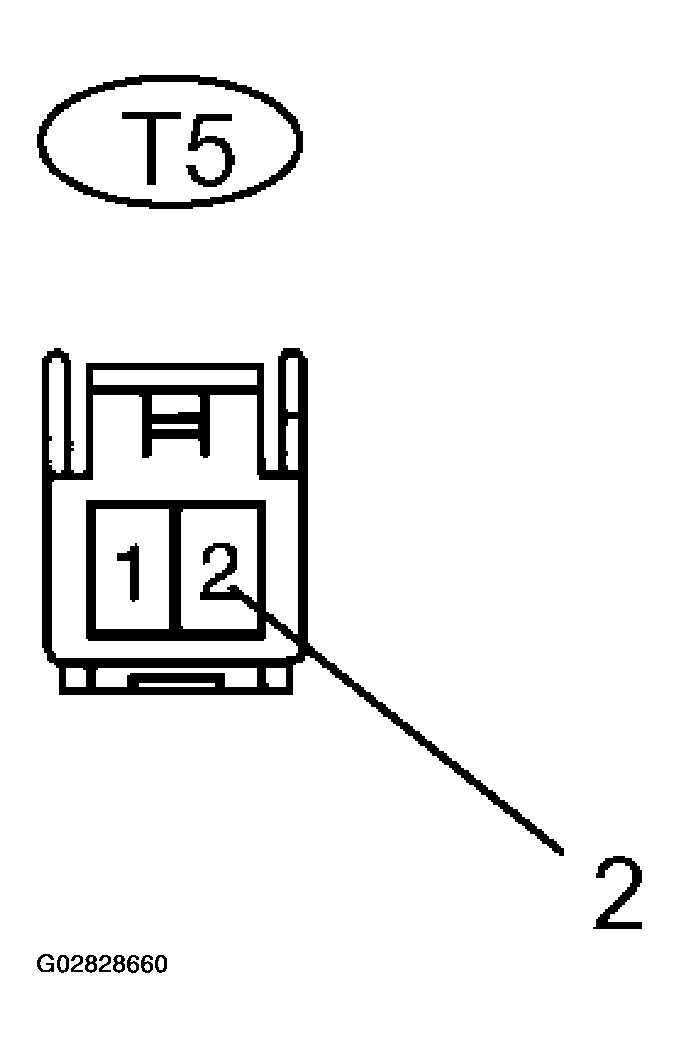

- Disconnect the T5 security indicator lamp connector.
- Check the continuity between the wire harness side connectors.
Standard:

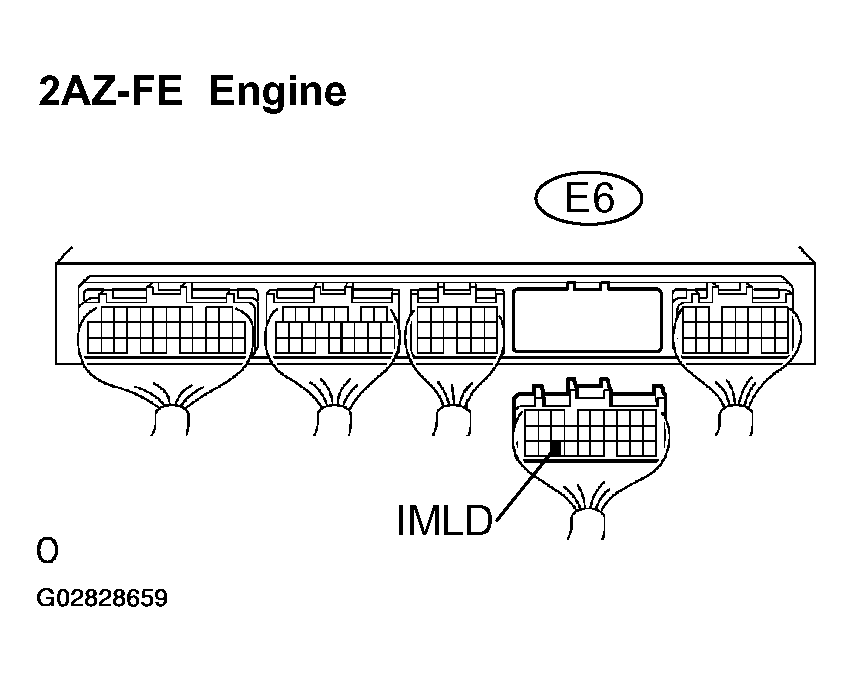

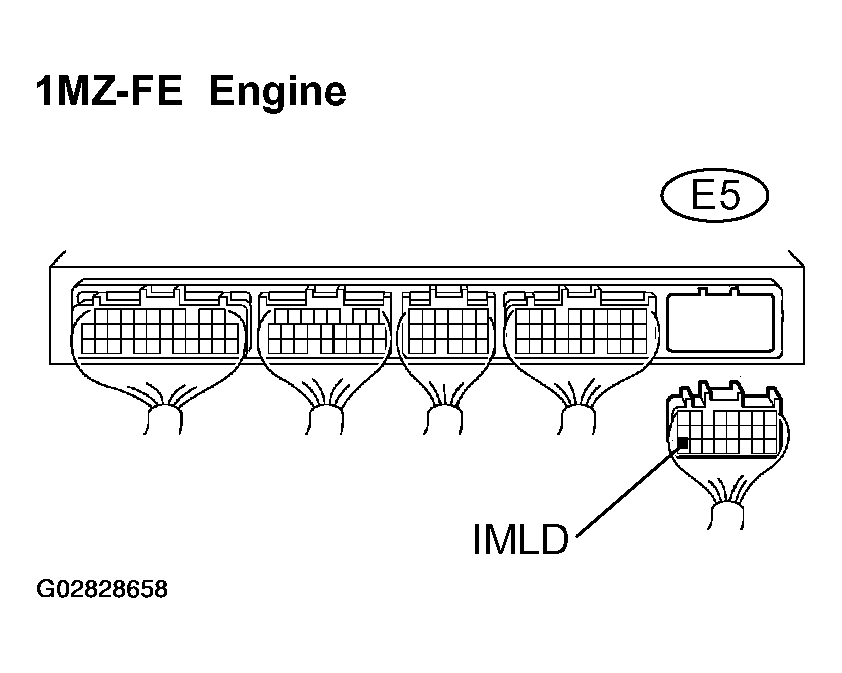

E5 OR E6 HARNESS SIDE CONNECTOR CONTINUITYSymbols (Terminal No.) Specified Condition IMLD (E5-22)(1) Or IMLD (E6-26) (2) <--> - (T5-2) Continuity (1) 1MZ-FE Engine (2) 2AZ-FE Engine - NG : CHECK AND REPLACE HARNESS AND CONNECTOR
- OK : Go To Next step.
- Disconnect the E5*1
or E6*2
ECM connector.
- CHECK WIRE HARNESS (SECURITY INDICATOR LAMP ASSEMBLY - BODY GROUND)
- Disconnect the T5 security indicator lamp connector.

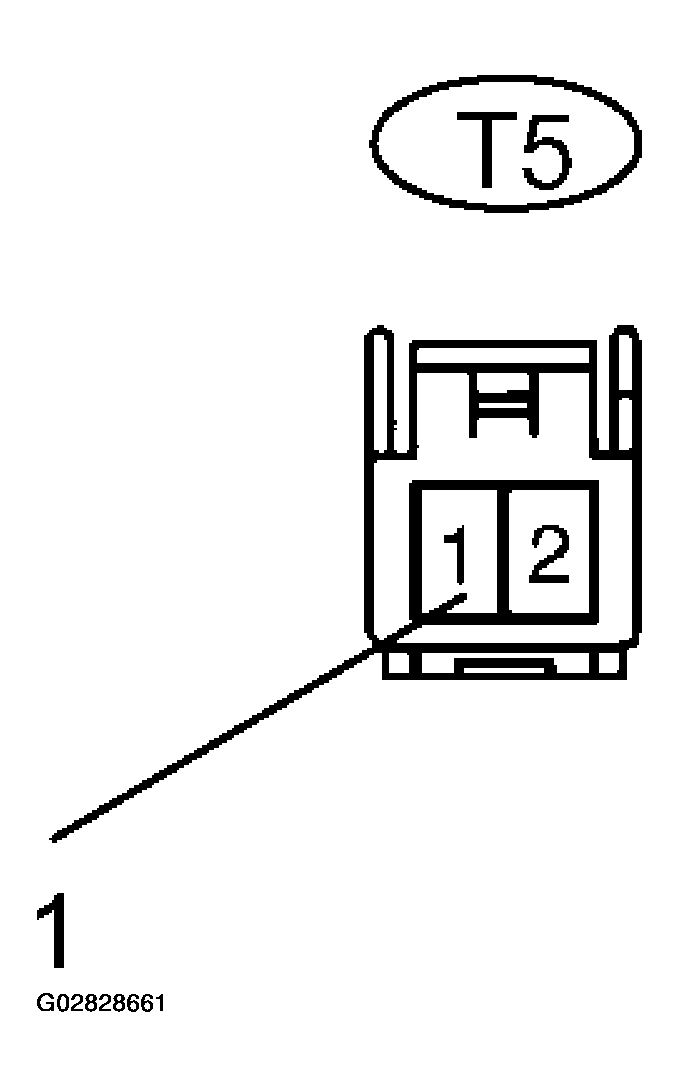

- Check the continuity between the wire harness side connector and body ground.
Standard:
CONTINUITY CHECKSymbols (Terminal No.) Specified Condition - (T5-1) <--> Body Ground Continuity - NG : CHECK AND REPLACE SECURITY INDICATOR LAMP ASSEMBLY
- OK : CHECK AND REPLACE ECM
