Problem Symptoms Table

NOTE: Perform appropriate test as directed in table. See SYMPTOM TESTING .

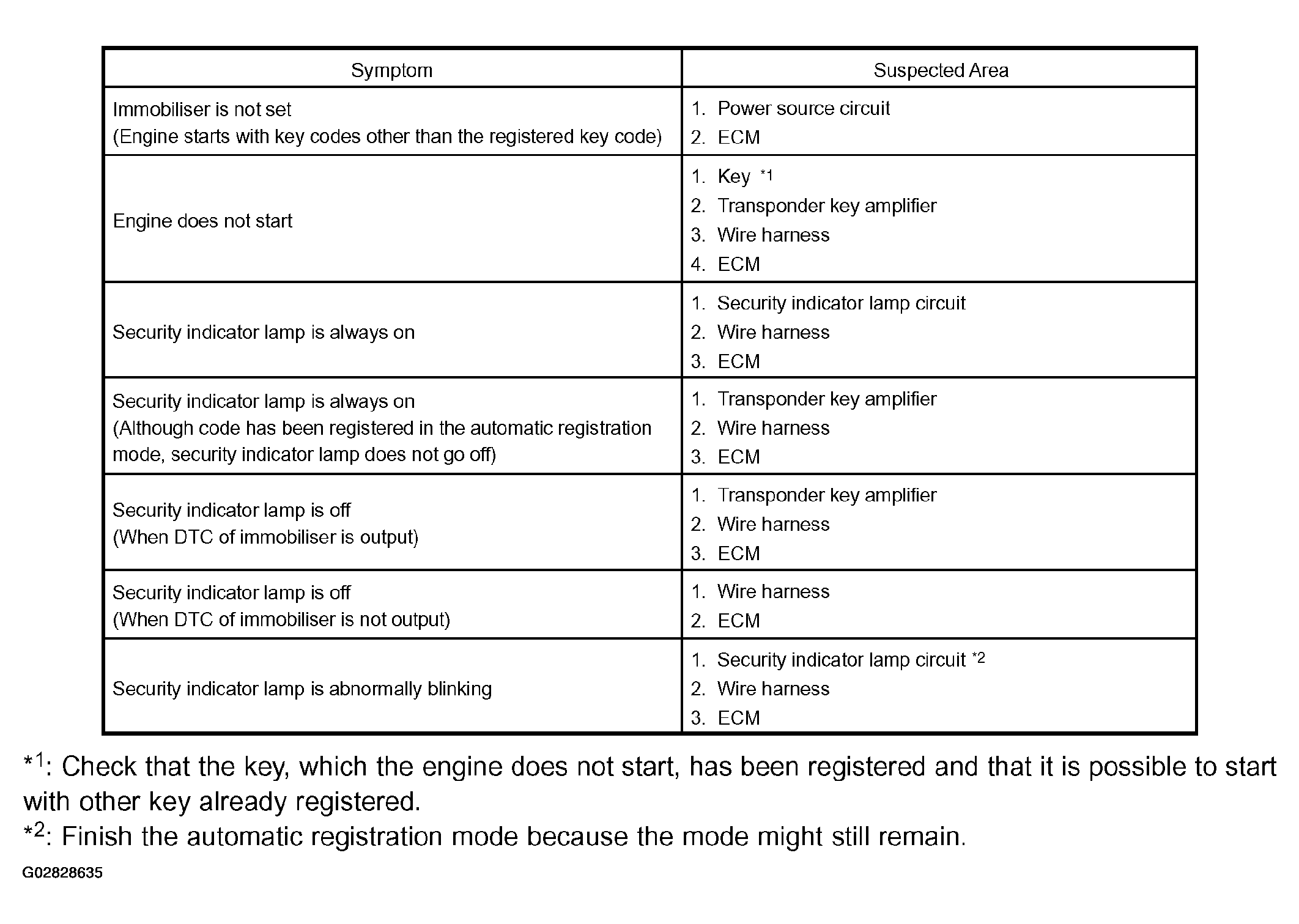

Fig 1: Engine Immobiliser System - Problem Symptoms Chart
G02828635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
