Terminals Of Ecu

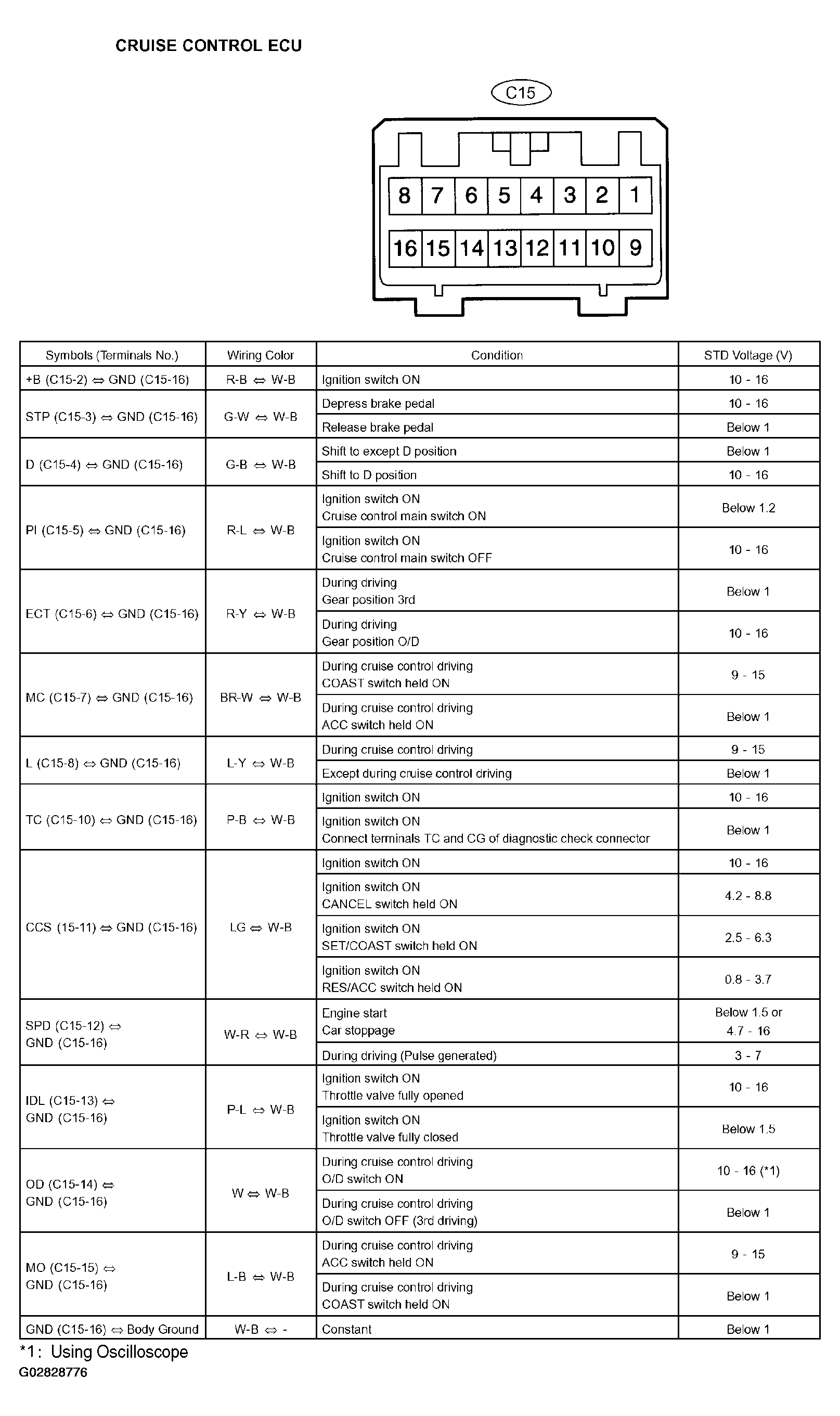

Fig 1: Identifying Cruise Control ECU Connector Terminals & Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TERMINALS OF ECU

Item	Contents
Tool Setting	5 V/DIV, 50 msec/DIV
Condition	During Cruise Control Driving O/D Switch ON
Symbol (Terminal No.)	OD (C15-14) <--> GND (C15-16)

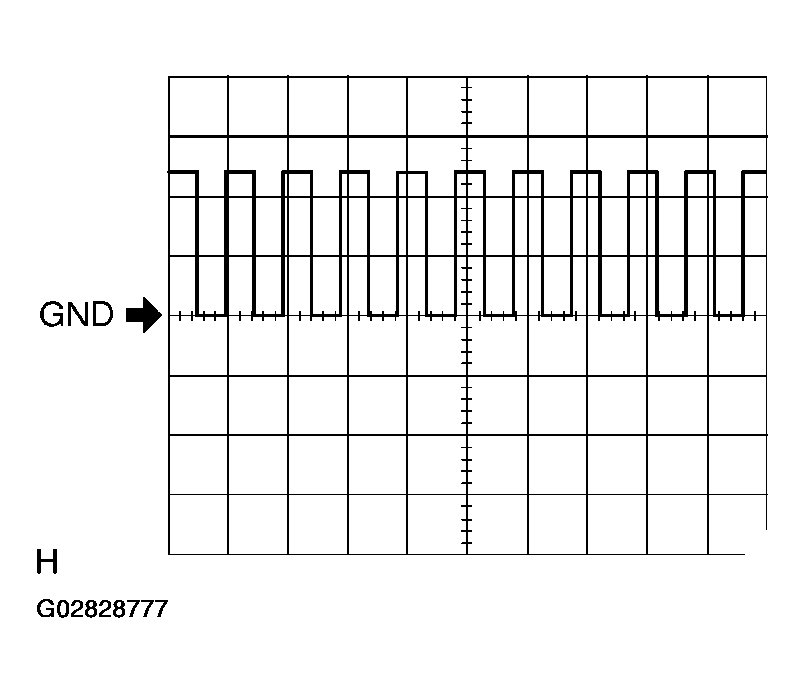

Fig 2: Identifying Oscilloscope Display Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

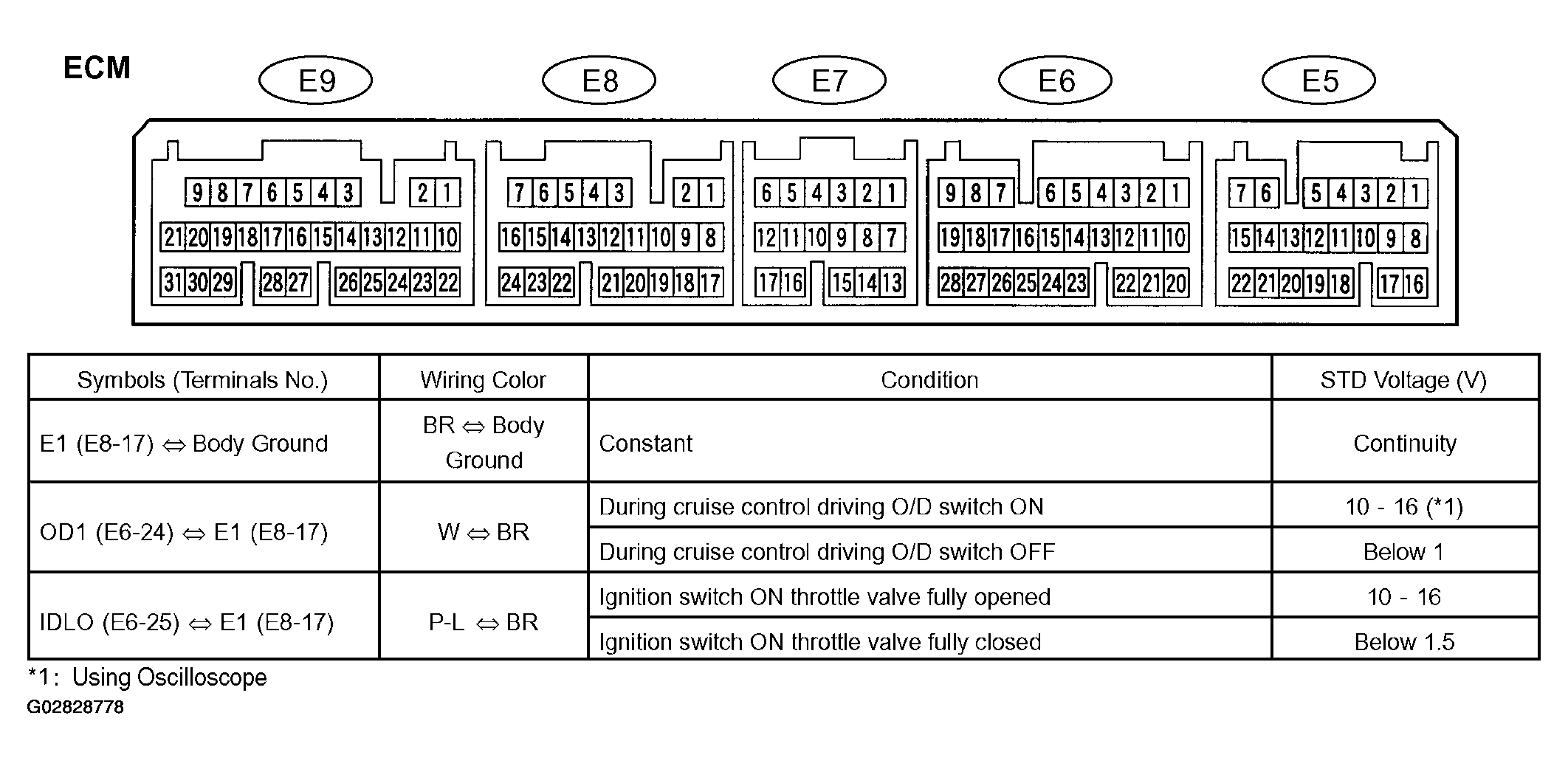

Fig 3: Identifying Cruise Control ECM Connector Terminals & Specifications

CRUISE CONTROL ECM CONNECTOR TERMINALS AND SPECIFICATIONS

Item	Contents
Tool Setting	5 V/DIV, 50 msec/DIV
Condition	During Cruise Control Driving O/D Switch ON
Symbol (Terminal No.)	OD1 (E6-24) <--> E1 (E8-17)

Fig 4: Identifying Oscilloscope Display Graph
