Circuit Description

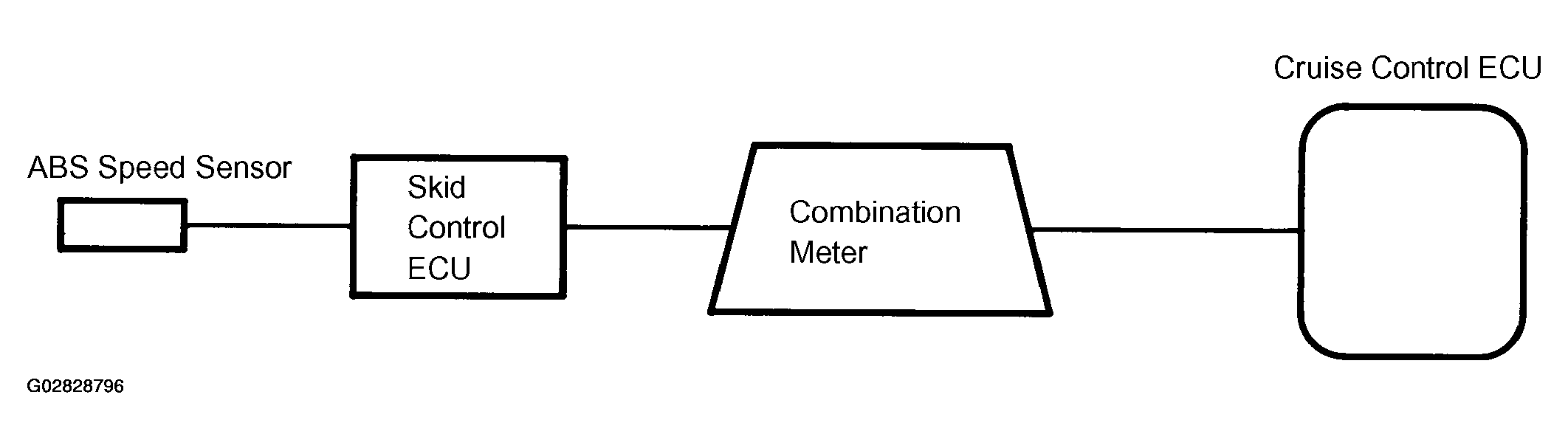

The vehicle speed sensor circuit is sent to cruise control ECU as vehicle speed signal. For each rotation of the shaft, the vehicle speed sensor sends a signal through the combination meter to the cruise control ECU. See Fig 1. The ECU calculates the vehicle speed from this pulse frequency.
