Cruise Control Switch Circuit: Wiring Diagram

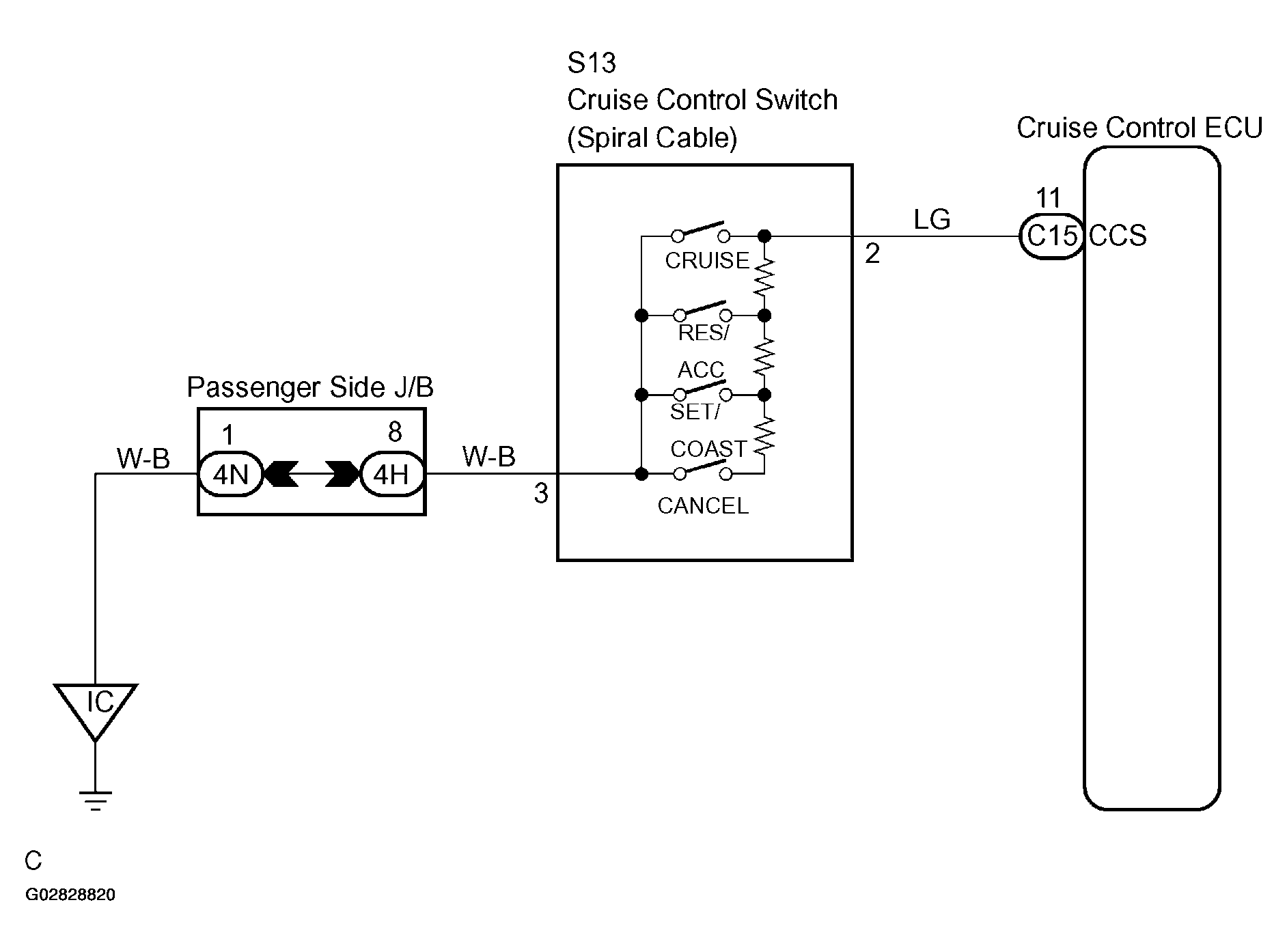

Fig 1: Cruise Control Switch - Circuit Diagram

G02828820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
