Automatic Transmission Floor Shift Assembly: Overhaul

REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See REPLACEMENT )
REMOVE FLOOR CARPET COVER CENTER RH (See REPLACEMENT )
REMOVE FLOOR CARPET COVER CENTER LH (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See REPLACEMENT )
SEPARATE FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY

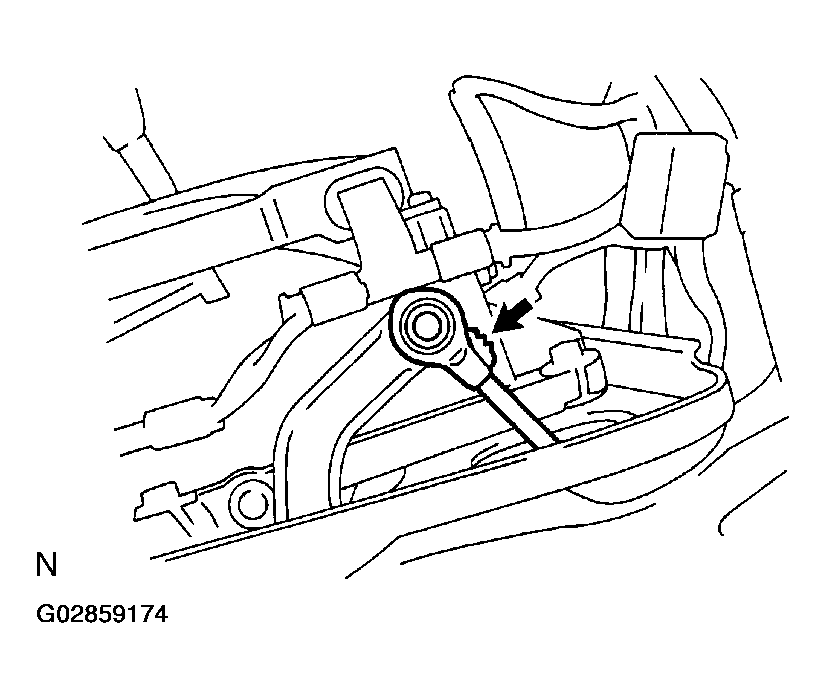

1. Disconnect the cable end from the floor shift assy.

  Fig 1: Disconnecting Cable End From Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT ASSY
1. Disconnect the 3 connectors.
2. Remove the 4 nuts and dismount the floor shift assy from the vehicle.

  Fig 2: Removing Floor Shift Assy From Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB-ASSY

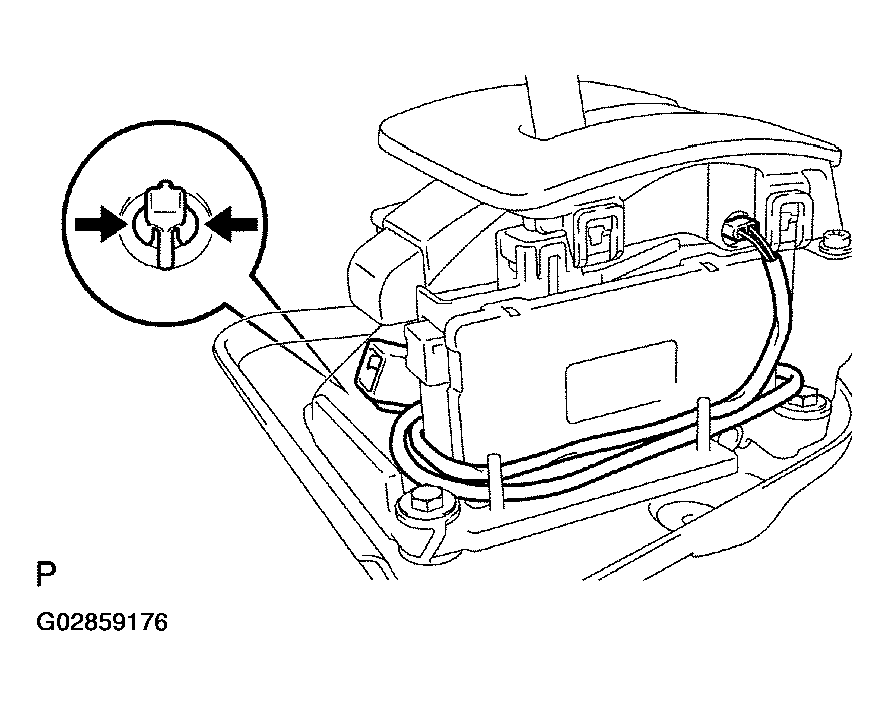

1. Releasing the lock by pressing the click, disconnect the indicator lamp wire connector from the shift lever plate.

  Fig 3: Disconnecting Indicator Lamp Wire Connector From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, release the stopper of the connector.

  Fig 4: Releasing Connector Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a small screwdriver, disengage the locking lug of the terminals 1 and 4, and pull the terminals out from the rear.
4. Disconnect the 2 wire harness of the transmission control switch from the clamp.
5. Lower the shift lever knob cover.
6. Remove the 2 screws and shift lever knob from the shift lever.

  Fig 5: Locating Screws For Removal Of Knob Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT SHIFT LEVER KNOB COVER
1. Remove the shift lever knob cover from the shift lever.
REMOVE SHIFT LEVER KNOB BUTTON
1. Using a screwdriver, release the claw and remove the shift lever knob button and spring from the shift lever knob.

  Fig 6: Removing Shift Lever Knob Button And Spring From Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL SWITCH
1. Remove the screw and from the shift lever knob, detach the transmission control switch together with the shift lever knob cover No. 1.

  Fig 7: Removing Screw From Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, release the 2 claws and remove the transmission control switch from the shift lever knob cover No. 1.

  Fig 8: Removing Transmission Control Switch From Shift Lever Knob Cover No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LAMP WIRE SUB-ASSY

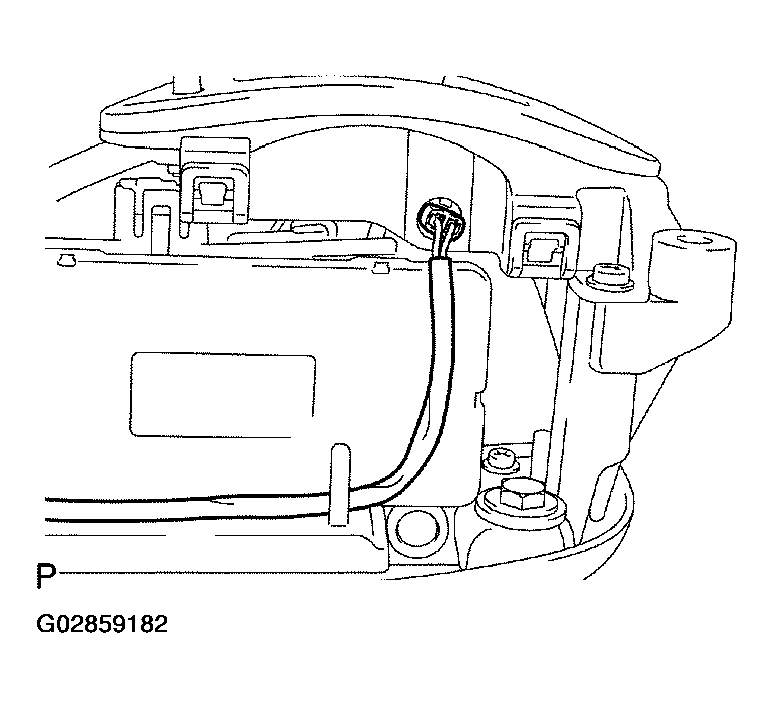

1. Remove the indicator lamp wire from the position indicator housing lower.

  Fig 9: Removing Indicator Lamp Wire From Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the indicator lamp cap and indicator lamp bulb from the indicator lamp wire.
REMOVE CONTROL POSITION INDICATOR PLATE
1. Using a small screwdriver, remove the shift lock release cover from the control position indicator plate.

  Fig 10: Removing Shift Lock Release Cover From Control Position Indicator Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, release the 4 claws and remove the control position indicator plate from the position indicator housing lower.

  Fig 11: Removing Control Position Indicator Plate From Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING LOWER

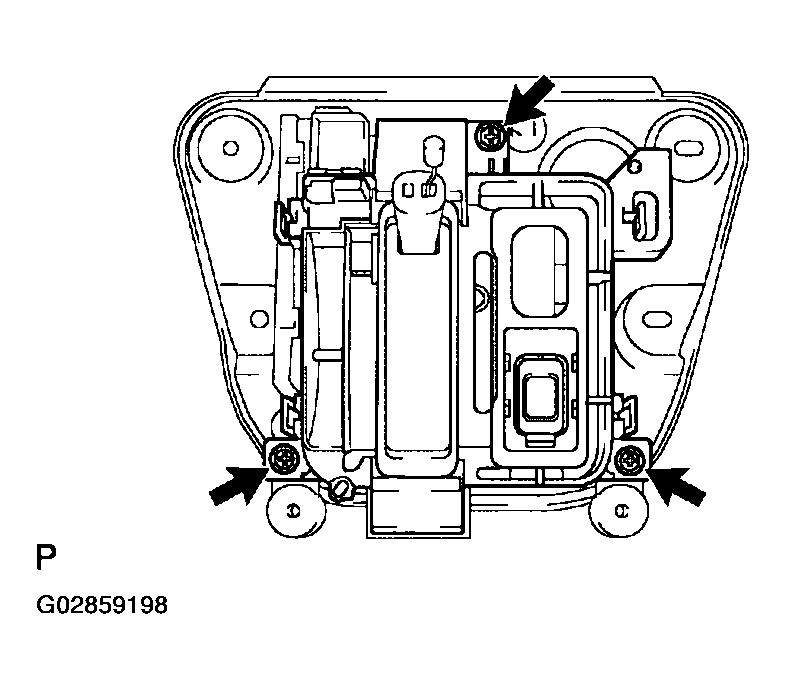

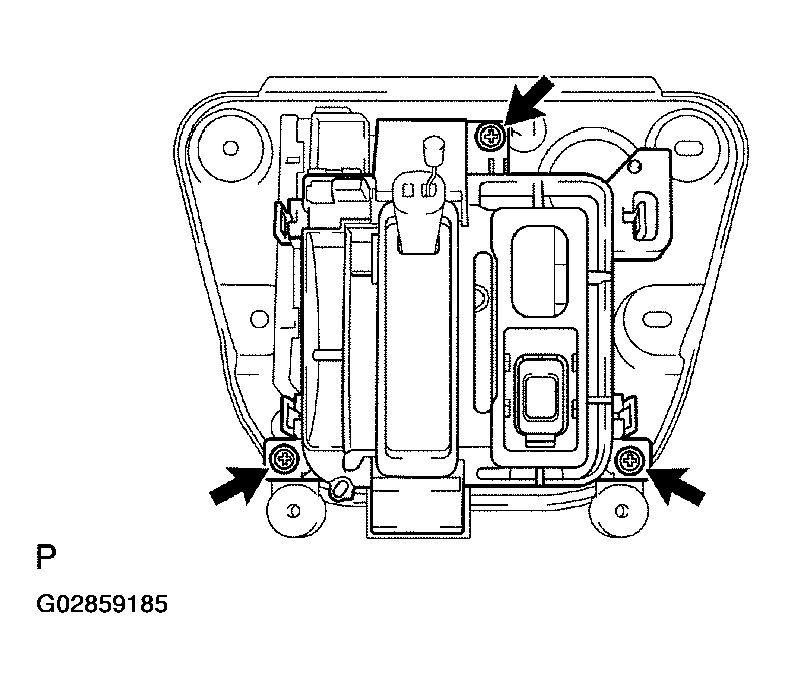

1. Remove the 3 screws, detach the position indicator housing lower from the shift lever plate.

  Fig 12: Removing Position Indicator Housing Lower From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON

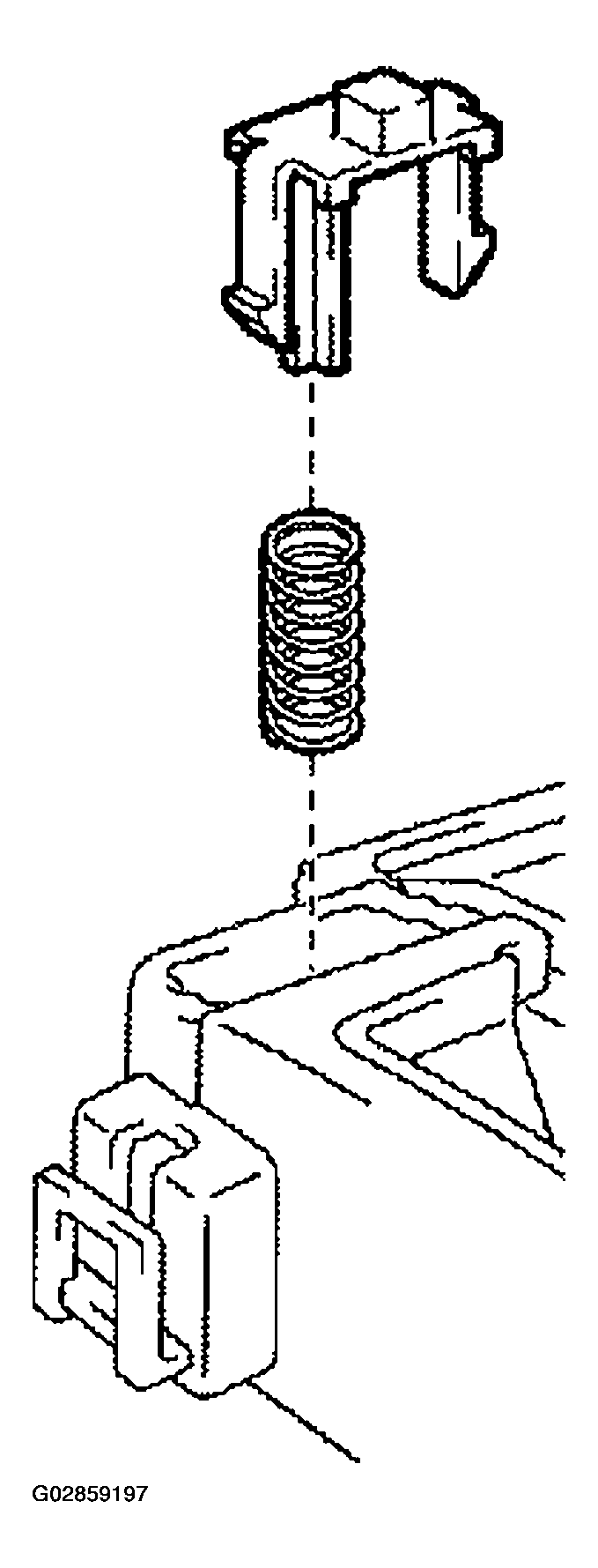

1. While pressing the 2 claws, remove the shift lock release button and spring from the position indicator housing lower.

  Fig 13: Removing Shift Lock Release Button
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PATTERN SELECT SWITCH ASSY NO. 1

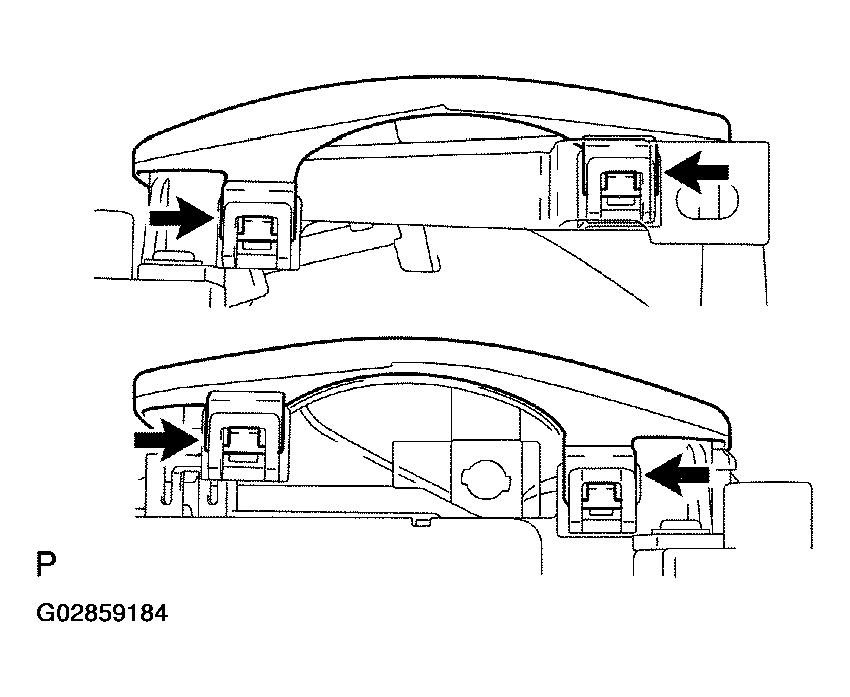

1. Using a screwdriver, release the 4 claws and remove the pattern select switch assy No. 1 from the position indicator housing lower.

  Fig 14: Locating Claws For Removal Of Pattern Select Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER

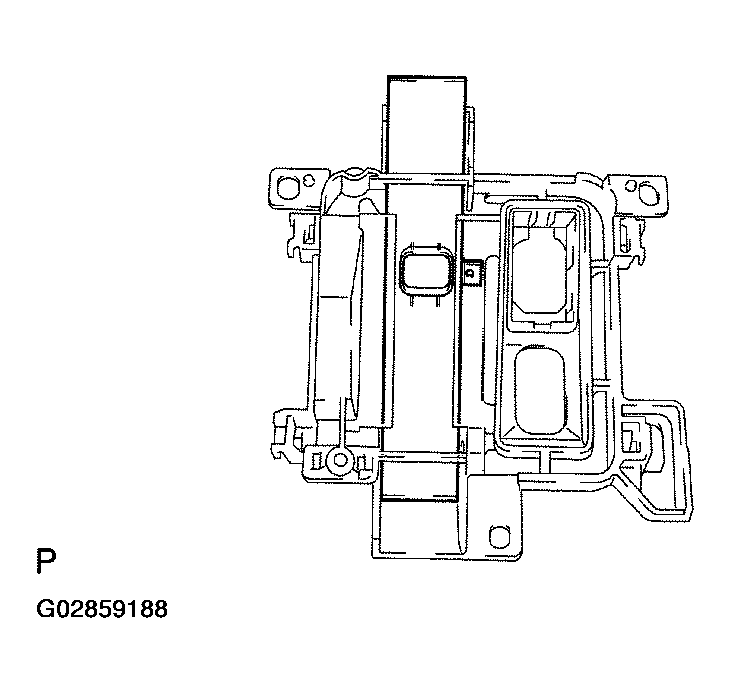

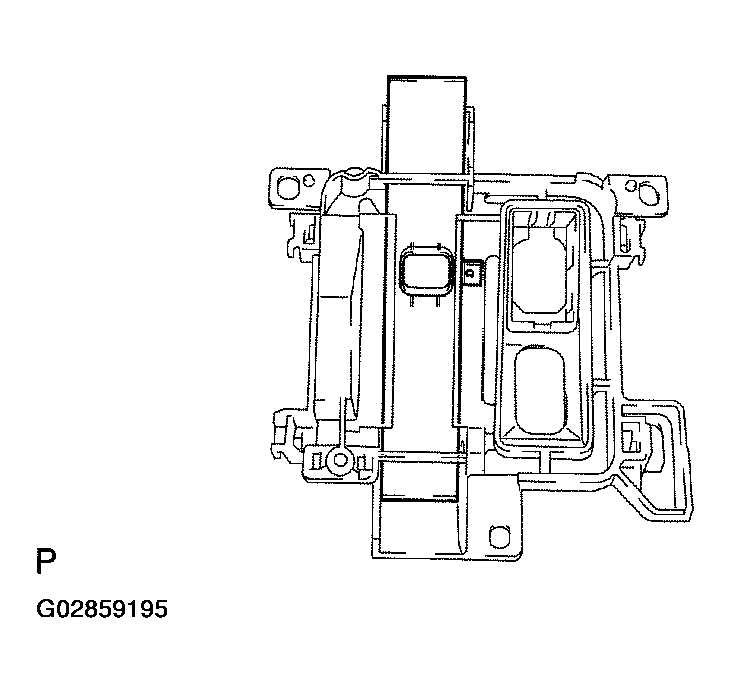

1. Remove the position indicator slide cover from the position indicator housing lower.

  Fig 15: Removing Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT SHIFT LEVER HOUSING SUB-ASSY

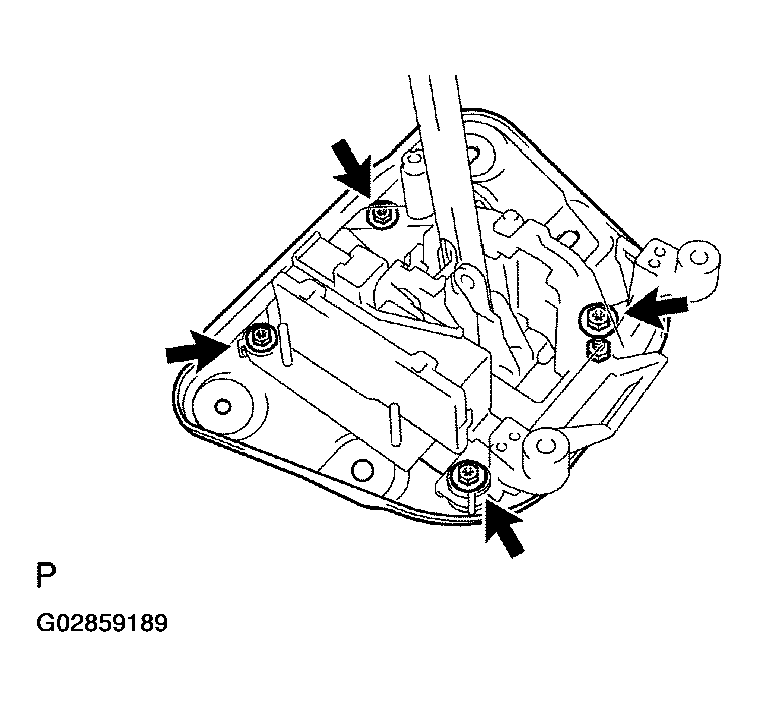

1. Remove the 4 bolts and nut, detach the shift lever housing from the shift lever plate.

  Fig 16: Locating Bolts For Removal Of Shift Lever Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK CONTROL UNIT ASSY

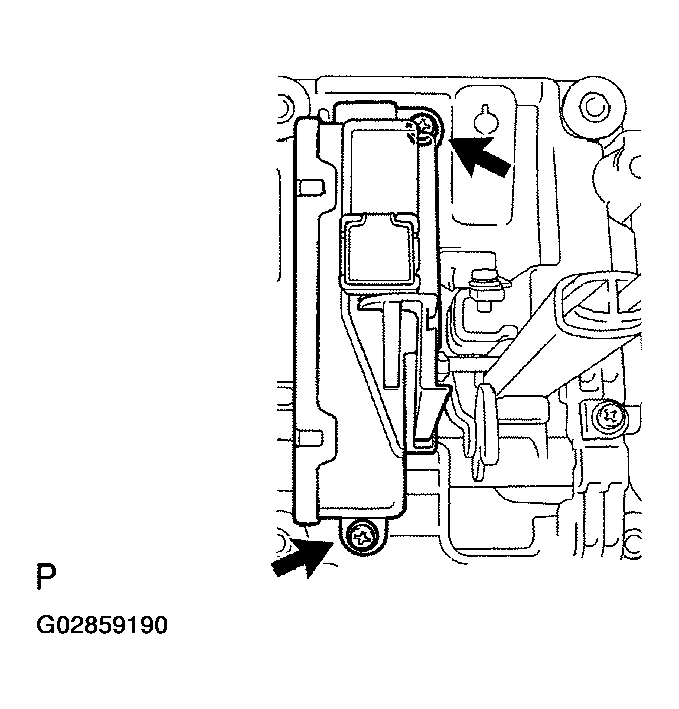

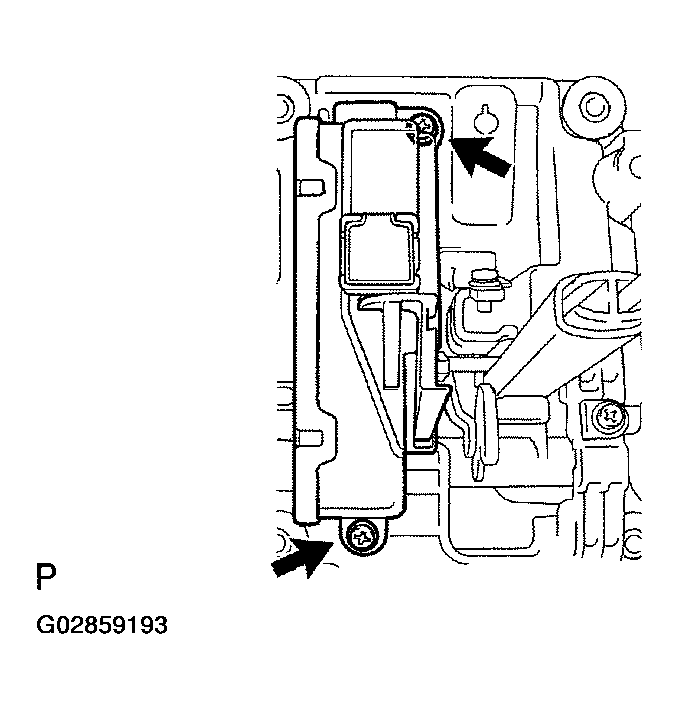

1. Remove the 2 screws and the shift lock control unit assy from the shift lever plate.

  Fig 17: Removing Shift Lock Control Unit Assy From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER KNOB SLEEVE
1. Remove the shift lever knob sleeve from the shift lever.

  Fig 18: Removing Shift Lever Knob Sleeve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER KNOB SLEEVE
1. Apply MP grease to the shown part of the shift lever knob sleeve and install it to the shift lever.

  Fig 19: Installing Shift Lever Knob Sleeve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK CONTROL UNIT ASSY
1. Install the shift lock control unit assy to the shift lever plate with 2 screws.

  Fig 20: Locating Screws For Shift Lock Control Unit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT SHIFT LEVER HOUSING SUB-ASSY
1. Install the shift lever housing to the shift lever plate with 4 bolts and nut.

  Fig 21: Locating Shift Lever Housing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.7 N.m (58 kgf.cm, 50 in.lbf)
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover to the position indicator housing lower.

  Fig 22: Installing Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PATTERN SELECT SWITCH ASSY NO. 1
1. Install the pattern select switch assy No. 1 to the position indicator housing lower.
NOTE: Fit the claws securely.

Fig 23: Installing Pattern Select Switch Assy No. 1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON

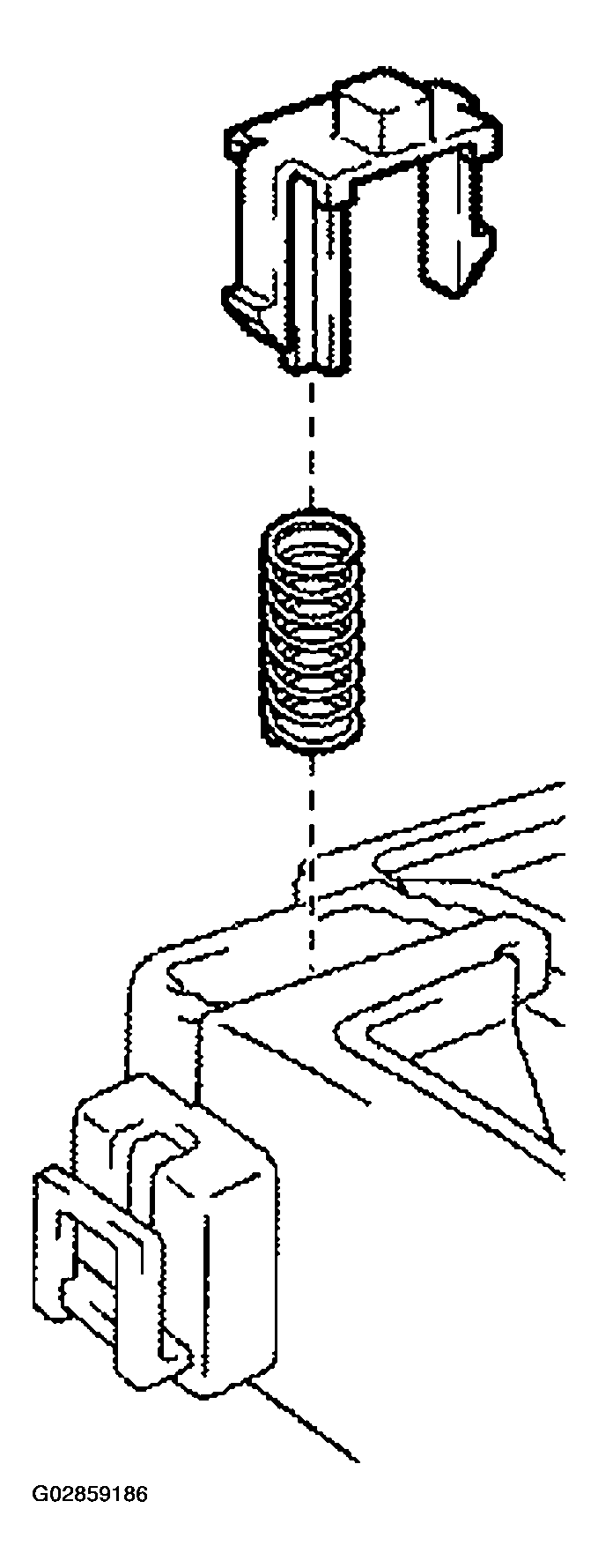

1. Install the shift lock release button and greased spring to the position indicator housing lower.
NOTE:
Fit the claws securely.
INSTALL POSITION INDICATOR HOUSING LOWER
1. Install the position indicator housing lower to the shift lever plate with 3 screws.

  Fig 25: Locating Screws For Installation Of Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONTROL POSITION INDICATOR PLATE
1. Install the control position indicator plate to the position indicator housing lower.

  Fig 26: Installing Control Position Indicator Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Fit the claws securely.
2. Install the shift lock release cover to the control position indicator plate.
INSTALL INDICATOR LAMP WIRE SUB-ASSY
1. Install the indicator lamp bulb and indicator lamp cap to the indicator lamp wire.

  Fig 27: Installing Indicator Lamp Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the indicator lamp wire to the position indicator housing lower.
INSTALL TRANSMISSION CONTROL SWITCH
1. Install the transmission control switch to the shift lever knob cover No. 1.

  Fig 28: Installing Transmission Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Fit the claws securely.
2. Install the shift lever knob cover No. 1 to the shift lever knob with a screw.

  Fig 29: Installing Shift Lever Knob Cover No. 1 To Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER KNOB BUTTON
1. Apply MP grease to the shift lever knob button and spring and install them to the shift lever knob.
INSTALL FLOOR SHIFT SHIFT LEVER KNOB COVER
1. Install the shift lever knob cover to the shift lever.
INSTALL FLOOR SHIFT SHIFT LEVER KNOB SUB-ASSY
1. Install the wire harness of the transmission control switch as shown in Fig 31.

  Fig 31: Installing Transmission Control Switch Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift lever knob to the shift lever with 2 screws.
3. Install the shift lever knob cover to shift lever knob.
4. Install the 2 wire harness of the transmission control switch.

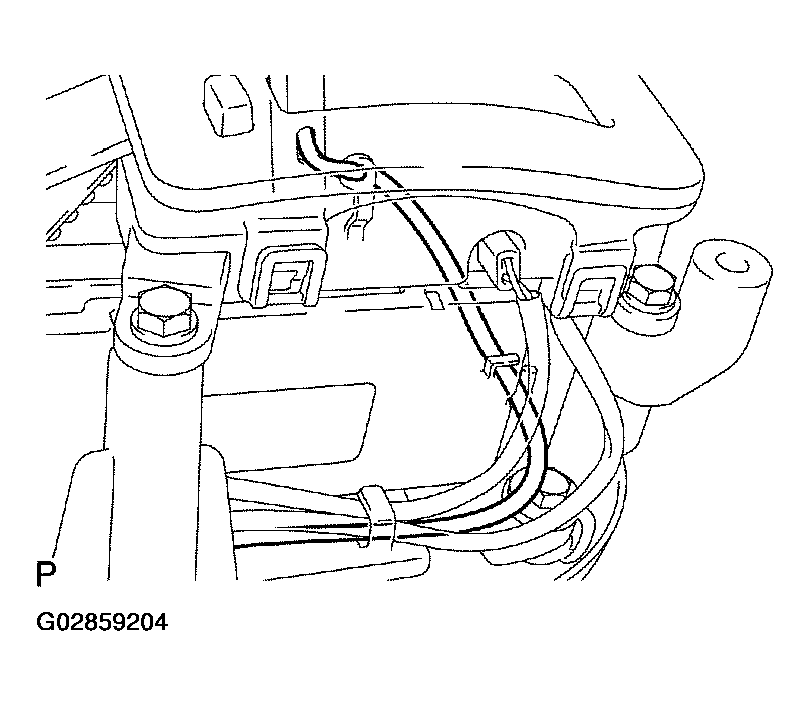

5. Install the indicator lamp wire harness and connector as shown in Fig 32.

  Fig 32: Installing Indicator Lamp Wire Harness And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT ASSY

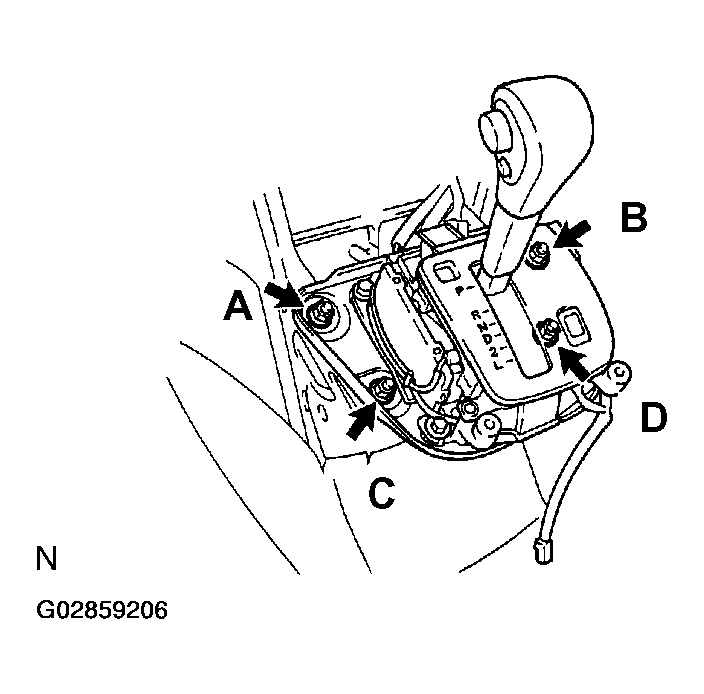

1. Install the floor shift assy to the vehicle with the 4 nuts.

  Fig 33: Installing Floor Shift Assy To Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11.8 N.m (122 kgf.cm, 9 ft.lbf)

  NOTE: Tighten them in the order, A, B, C and D.
2. Connect the 3 connectors.
INSTALL FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY
1. Connect the cable end to the floor shift assy.

  Fig 34: Connecting Cable End To Floor Shift Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Install it with the uneven surface facing up.
