Section 877 (Suspension Control System)
>>
System Description
>>
Suspension Control System
>>
System Diagram
System Diagram
WARNING:
This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

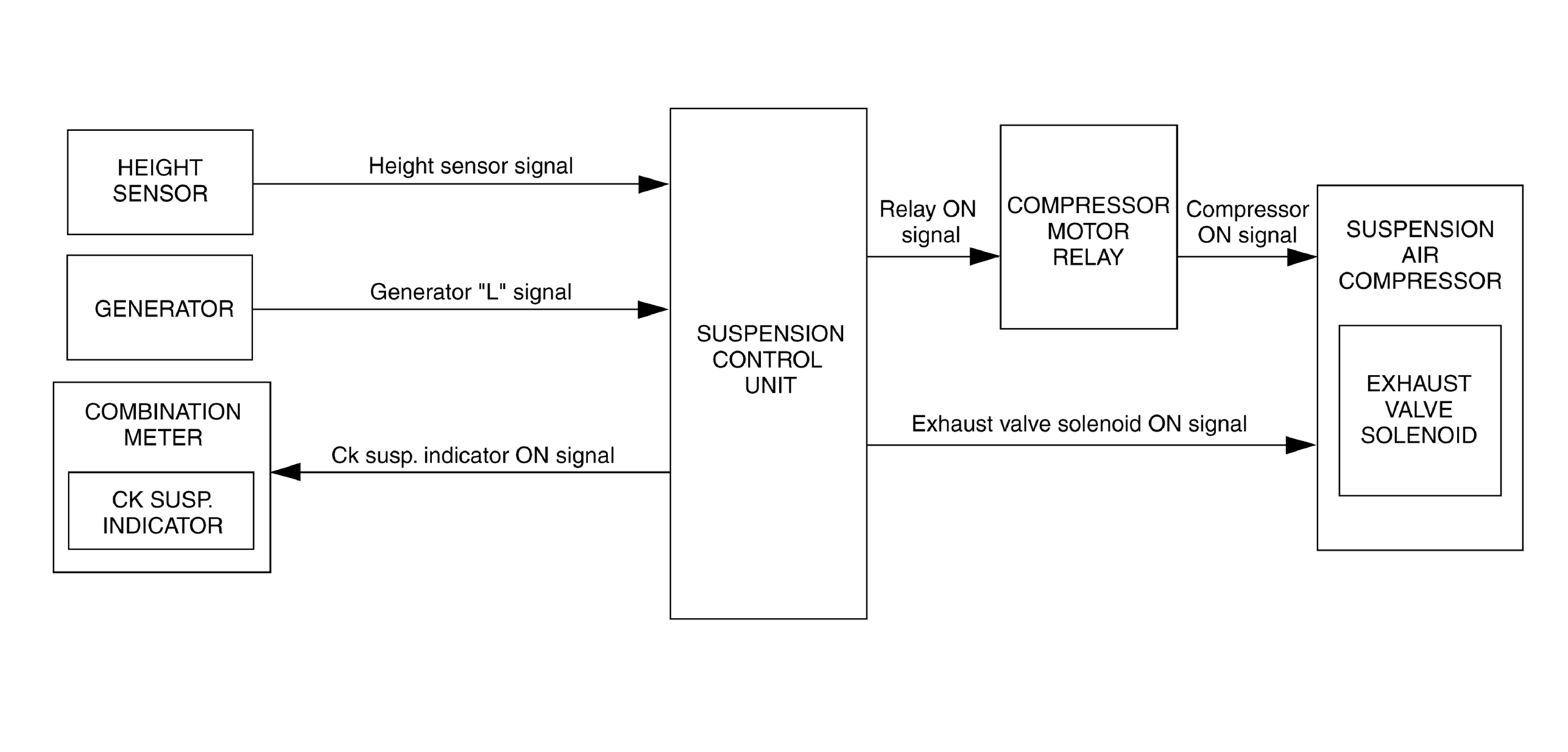

Fig 1: Suspension Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
