Section 624 (Cruise Control Main Switch): Replacement

WARNING: This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

PRECAUTION (SEE AIR BAG SAFETY PRECAUTIONS )
DISCONNECT BATTERY NEGATIVE TERMINAL (SEE AIR BAG SAFETY PRECAUTIONS )
REMOVE STEERING WHEEL COVER LOWER NO.2
REMOVE STEERING WHEEL COVER LOWER NO.3
REMOVE HORN BUTTON ASSY (SEE HORN )
REMOVE CRUISE CONTROL MAIN SWITCH
1. Disconnect the connectors.
2. Remove the 2 screws and cruise control main switch.

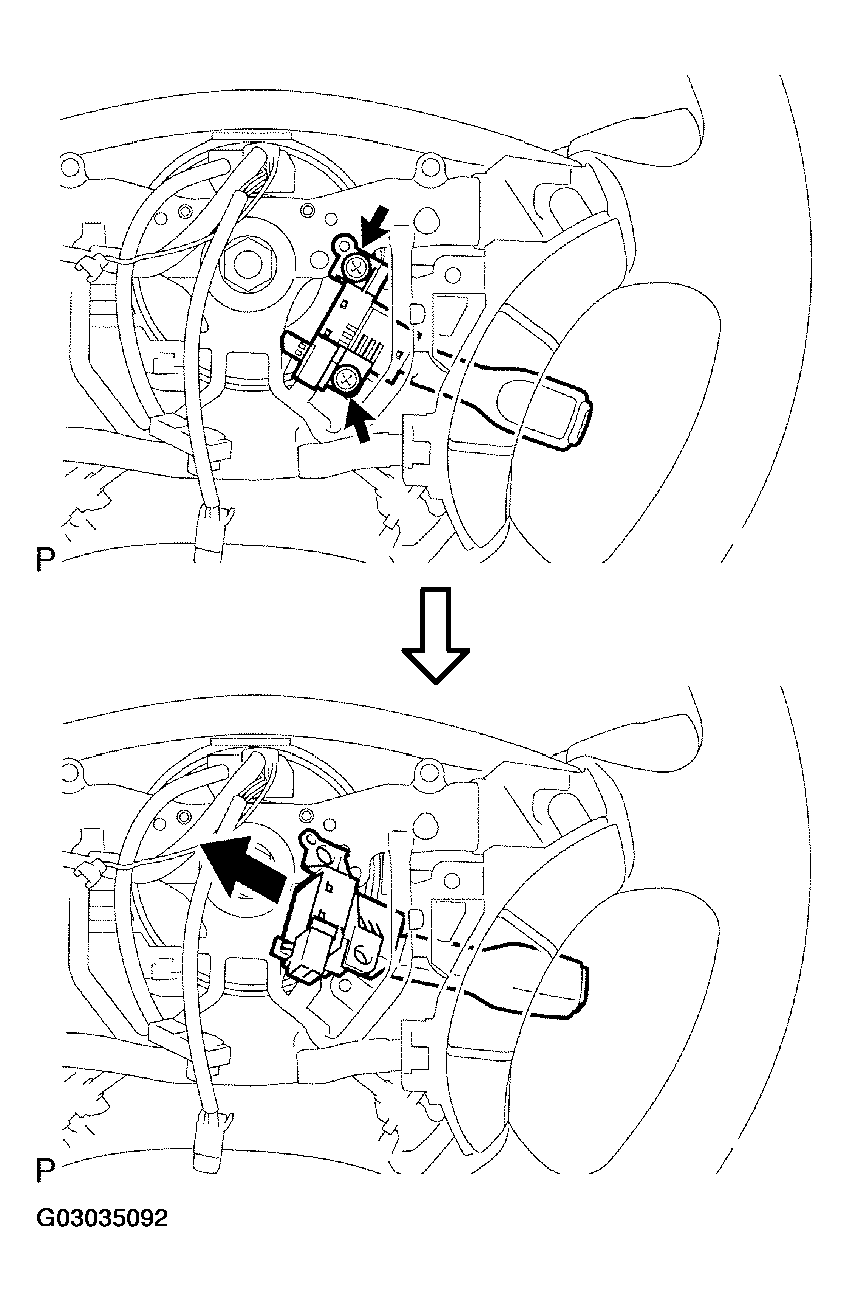

Fig 1: Removing Cruise Control Main Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HORN BUTTON ASSY (SEE HORN )
CONNECT BATTERY NEGATIVE TERMINAL
INSPECT HORN BUTTON ASSY (See HORN )
INSPECT SRS WARNING LIGHT (SEE AIR BAG WARNING LIGHT INTERMITTENT )
