Driver Power Window Does Not Operate: Wiring Diagram

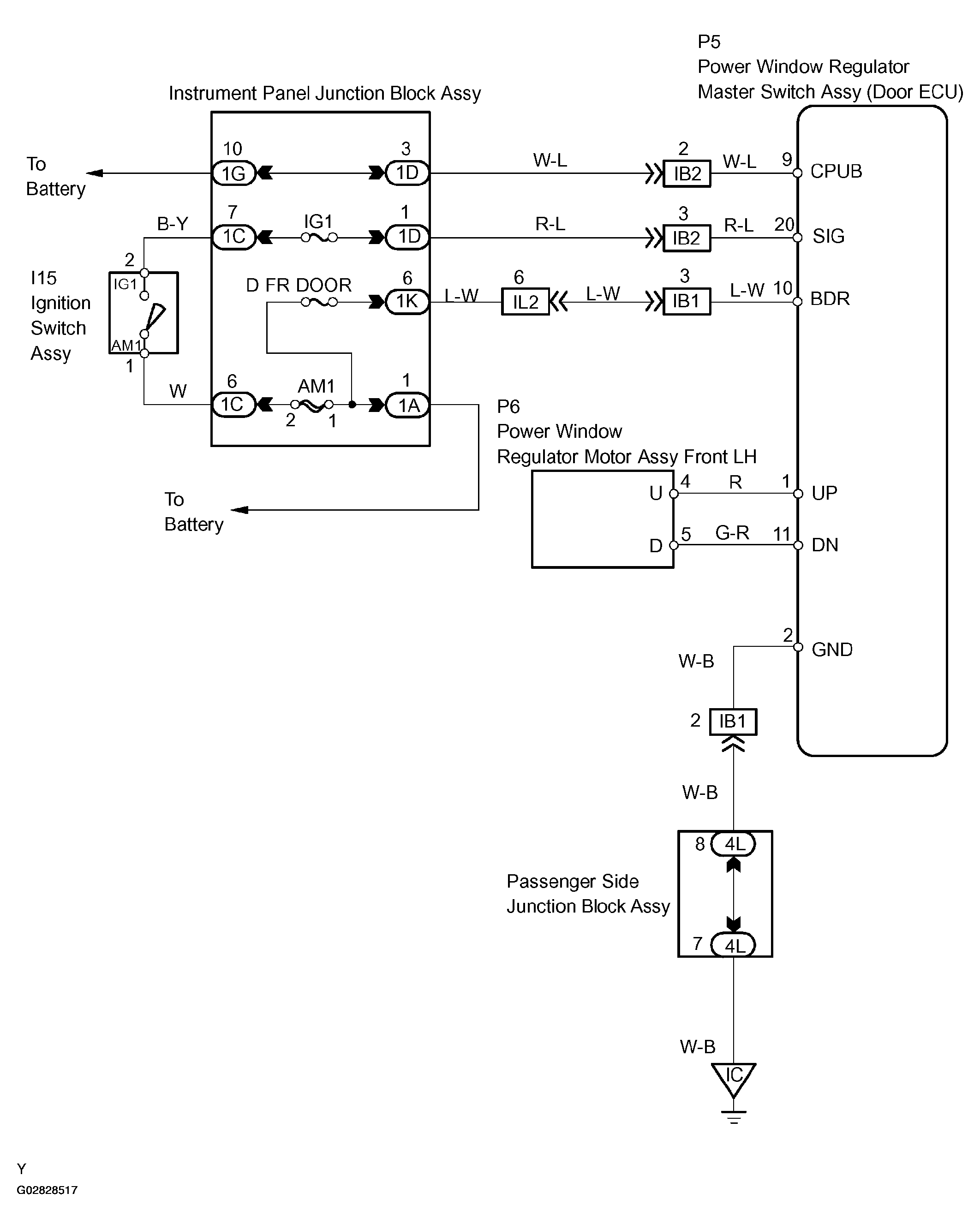

Fig 1: Driver Power Window - Wiring Diagram

G02828517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
