Section 14 (Transfer Case)
>>
Transfer (4WD)
>>
Components
Transfer (4WD): Components
WARNING:
This page is about a different variant/trim than selected.

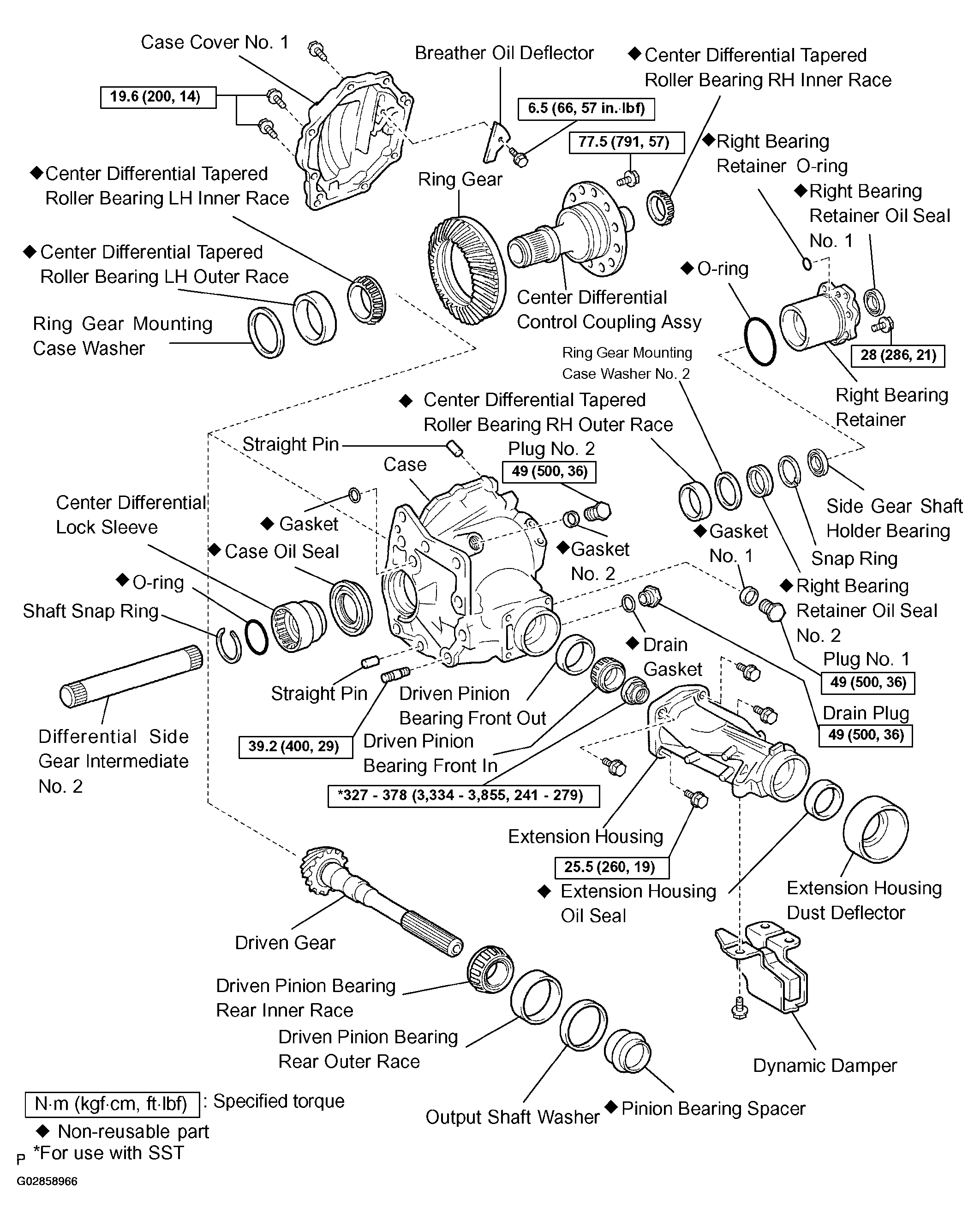

Fig 1: Exploded View Of Transfer (4WD) Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
