Home >> Toyota >> 2003 >> Highlander Base, 2.4 D, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Back Door Glass >> Components

Back Door Glass: Components

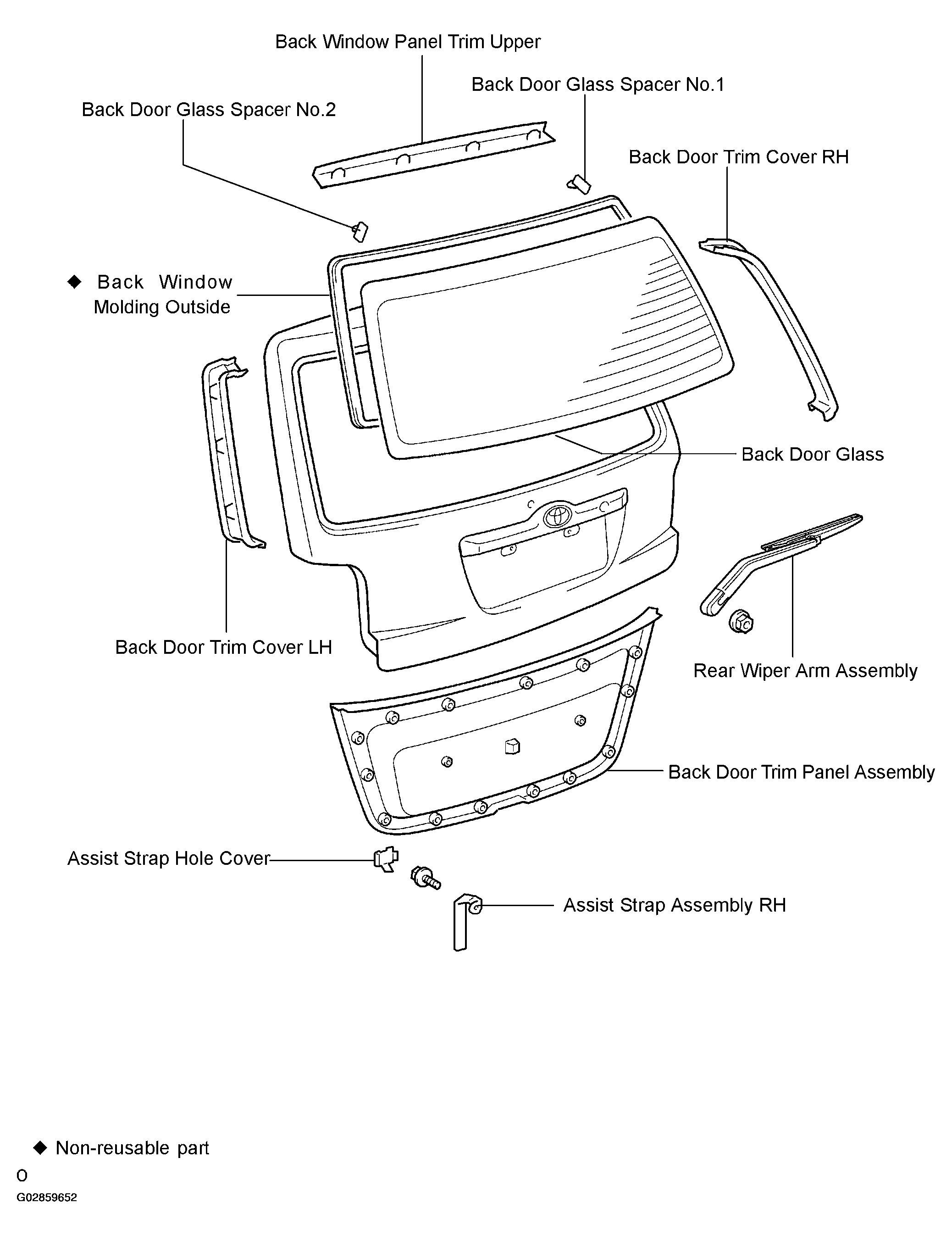

Fig 1: Identifying Back Door Glass Components

G02859652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
