Section 602 (Headlamp Dimmer Switch Assembly): Replacement

WARNING: This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

REMOVE STEERING COLUMN COVER LWR (See OVERHAUL )
REMOVE STEERING COLUMN COVER UPPER (See OVERHAUL )
REMOVE HEADLAMP DIMMER SWITCH ASSY
1. Disconnect the connector.
2. Using a screwdriver, disengage the claw, and remove the headlamp dimmer switch assy.
NOTE: Pressing the claw hard breaks the claw.

HINT:

Tape the screwdriver tip before use.

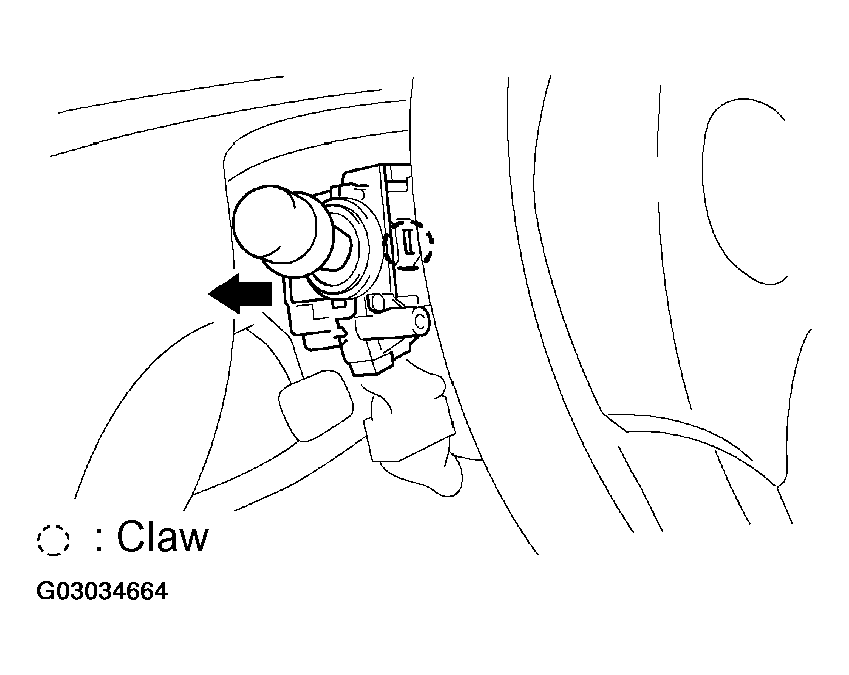

Fig 1: Removing Headlamp Dimmer Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
