Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

MULTI-DISPLAY ASSY:

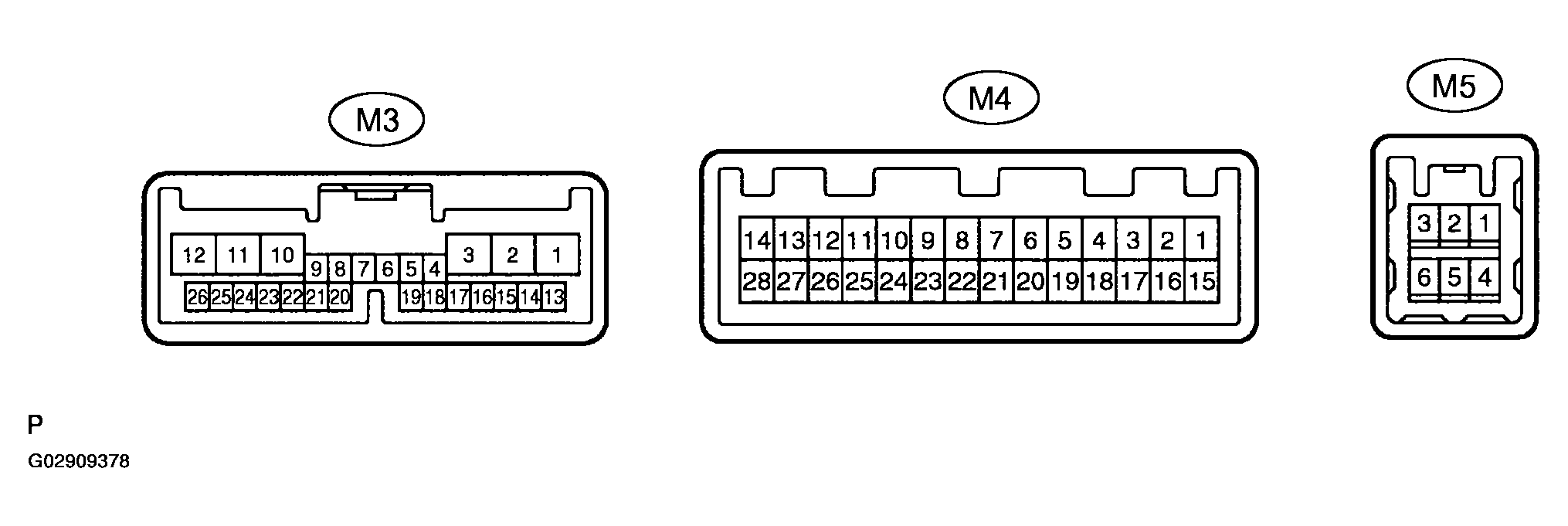

Fig 1: Identifying Terminals Of ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

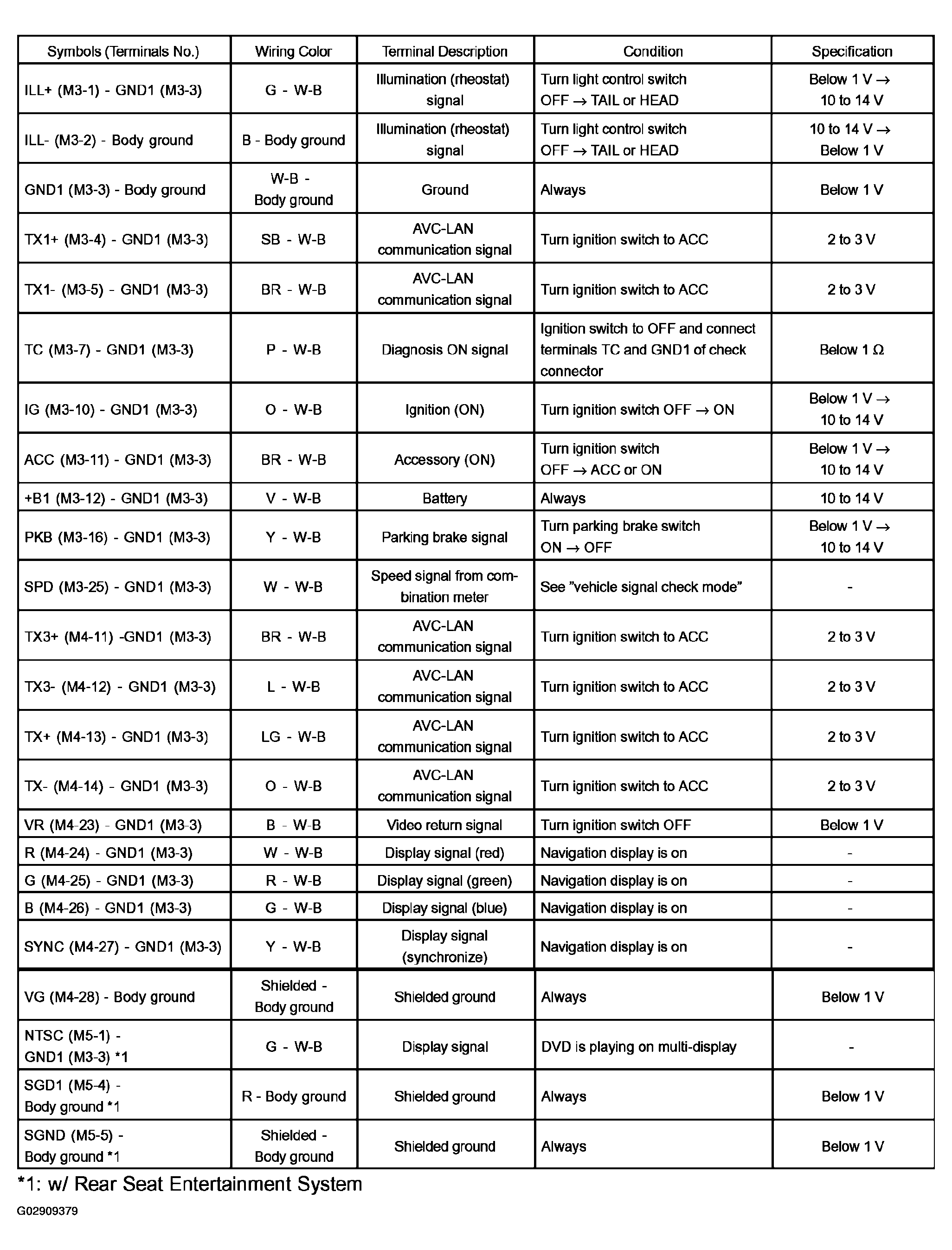

Fig 2: Terminals Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NAVIGATION ECU:

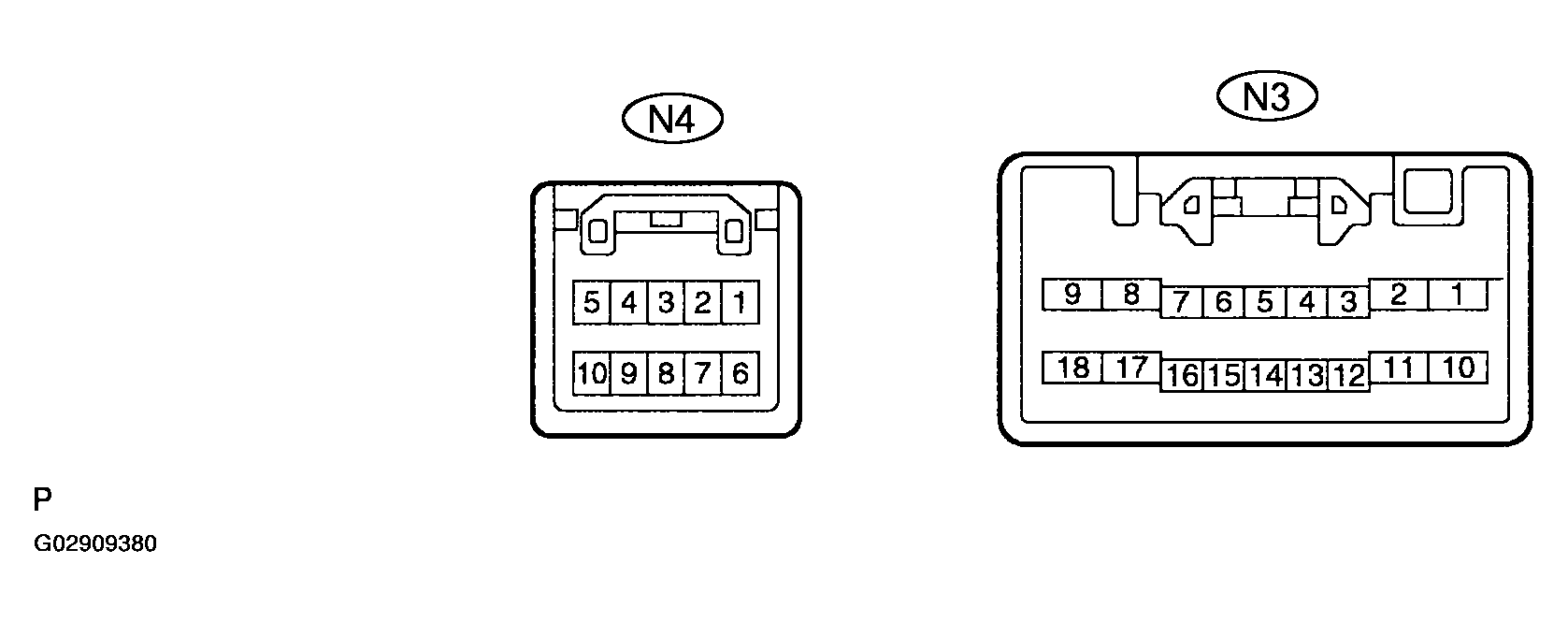

Fig 3: Identifying Navigation ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

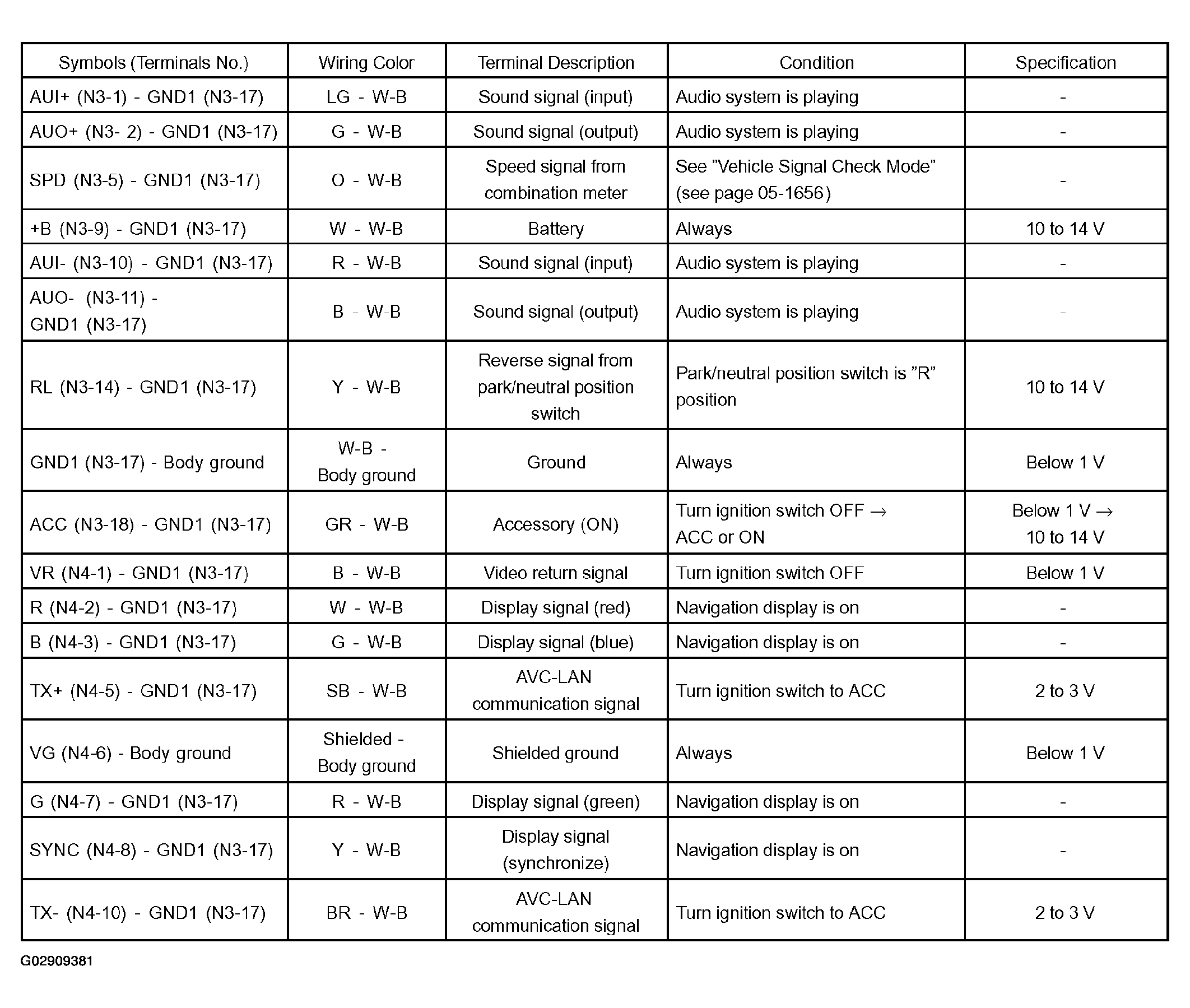

Fig 4: Terminals Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RADIO RECEIVER ASSY:

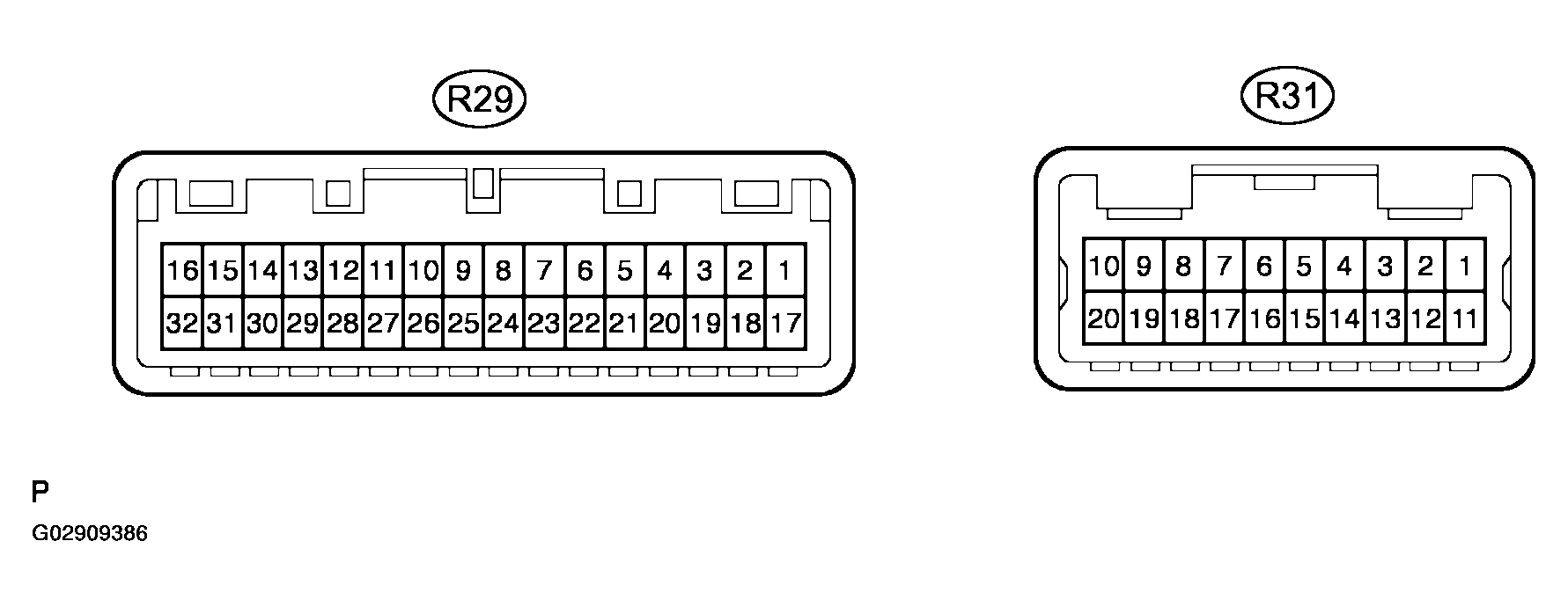

Fig 5: Identifying Radio Receiver Assy Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

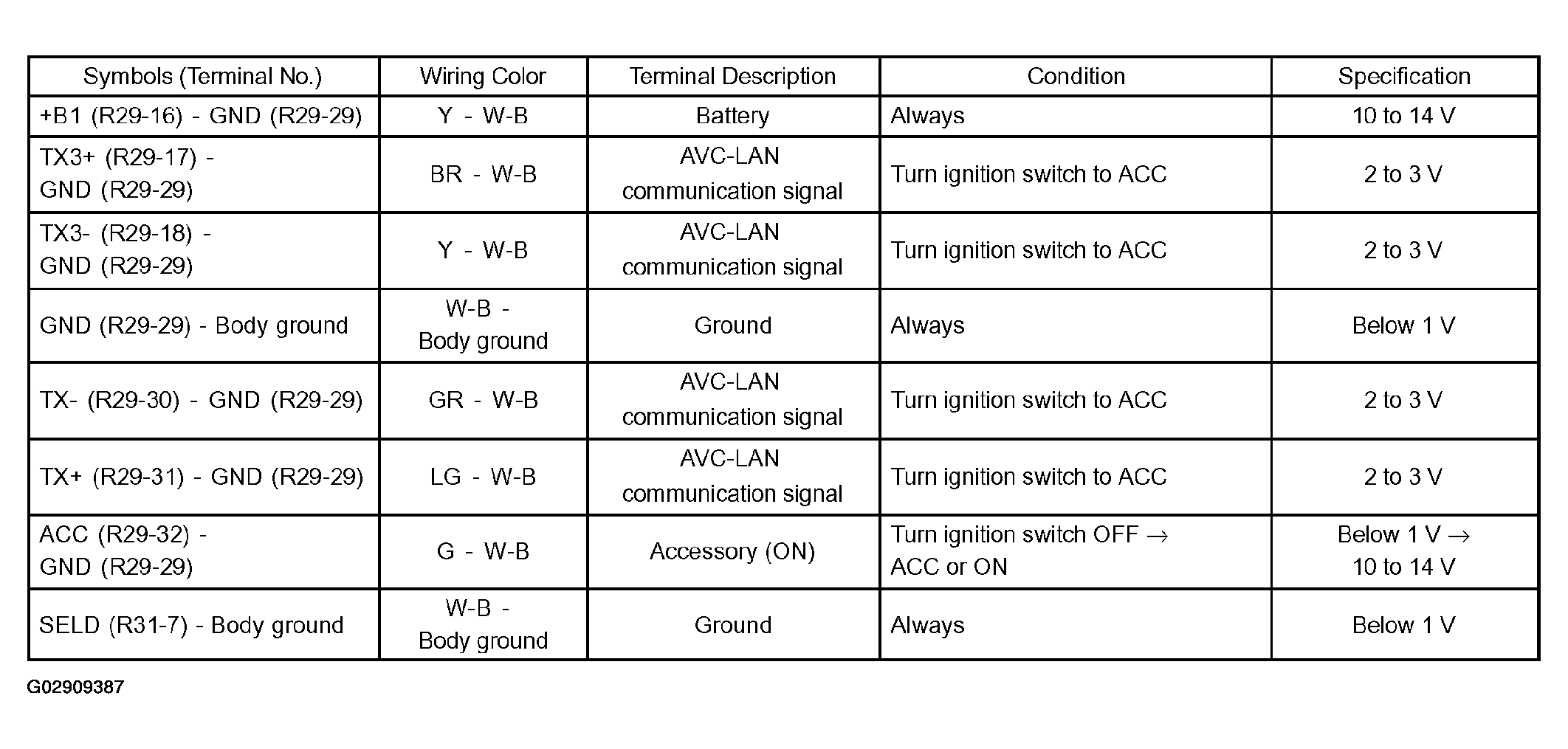

Fig 6: Terminals Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GATEWAY ECU

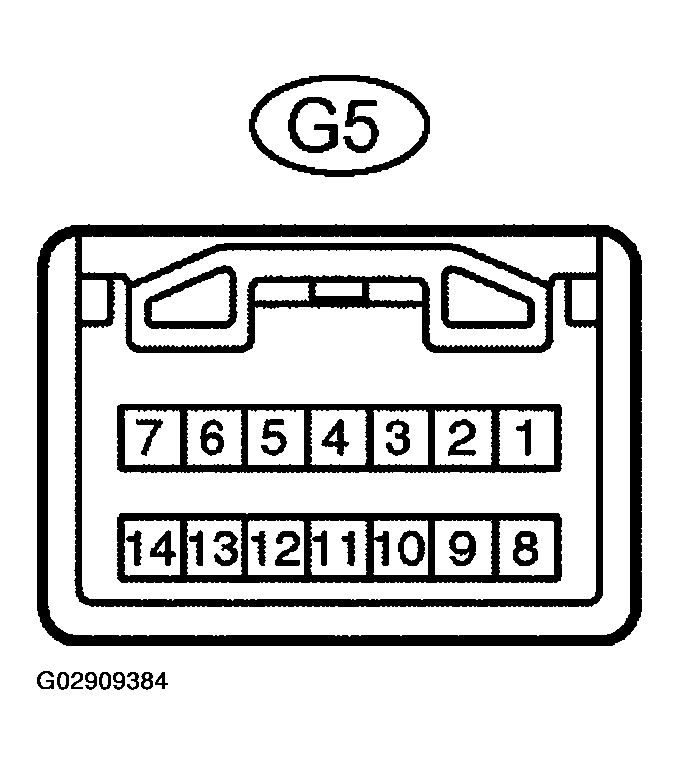

Fig 7: Identifying Gateway ECU Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

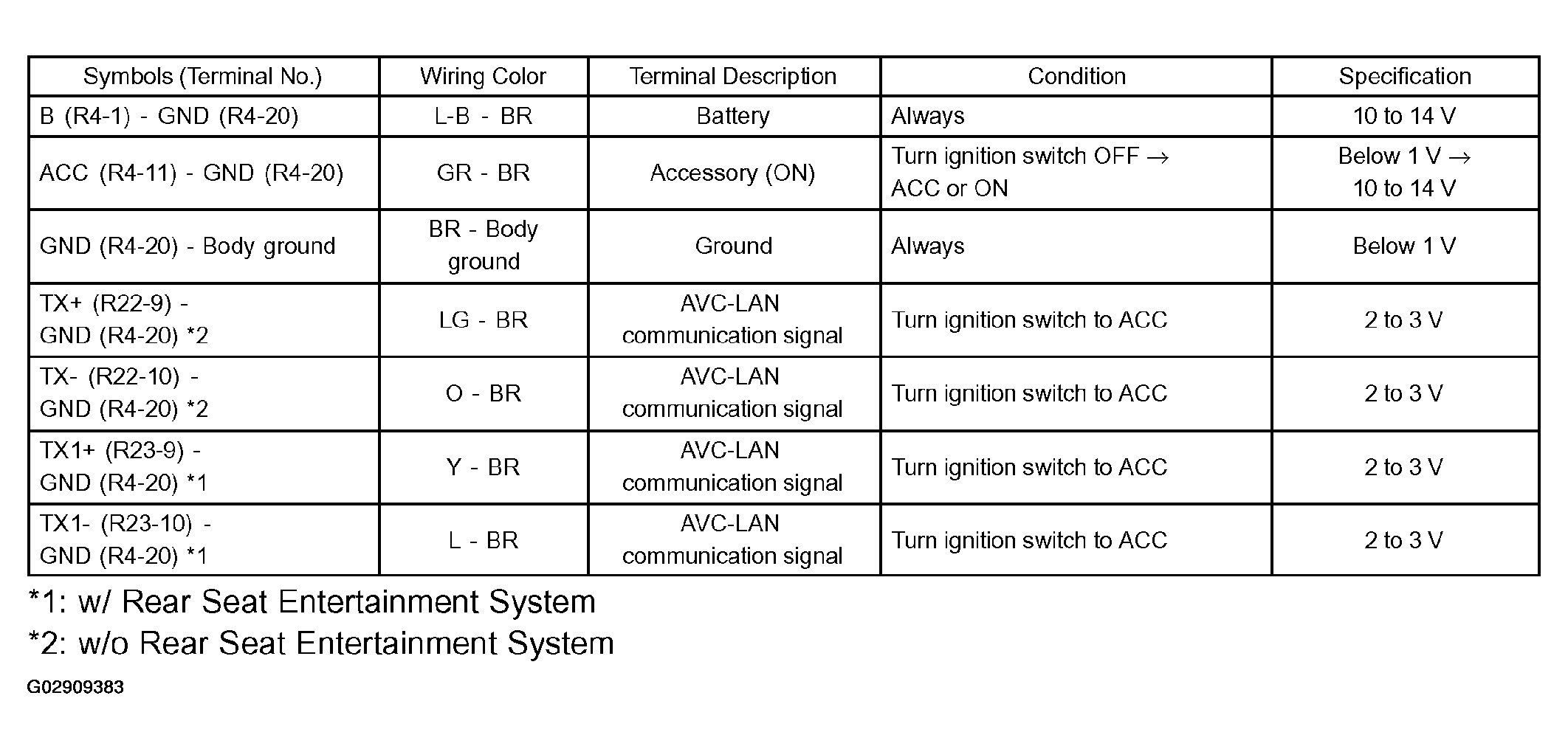

Fig 8: Terminals Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
MULTI DISPLAY CONTROLLER SUB-ASSY:

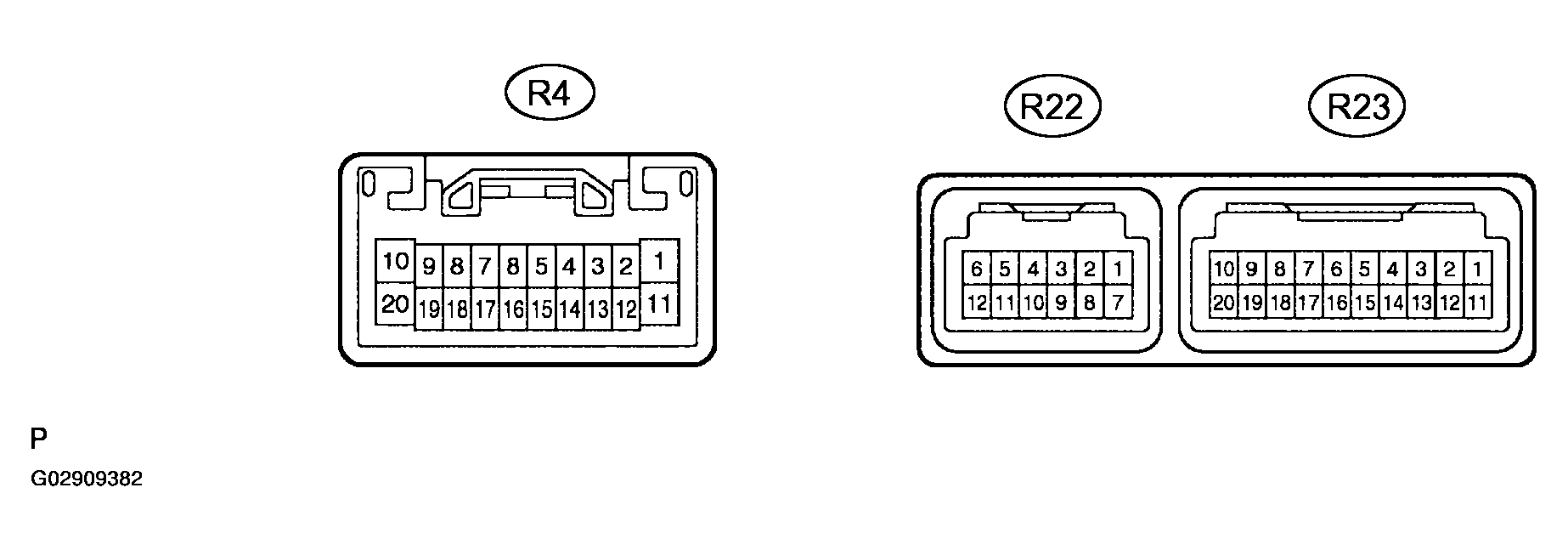

Fig 9: Identifying Multi Display Controller Sub-Assy Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

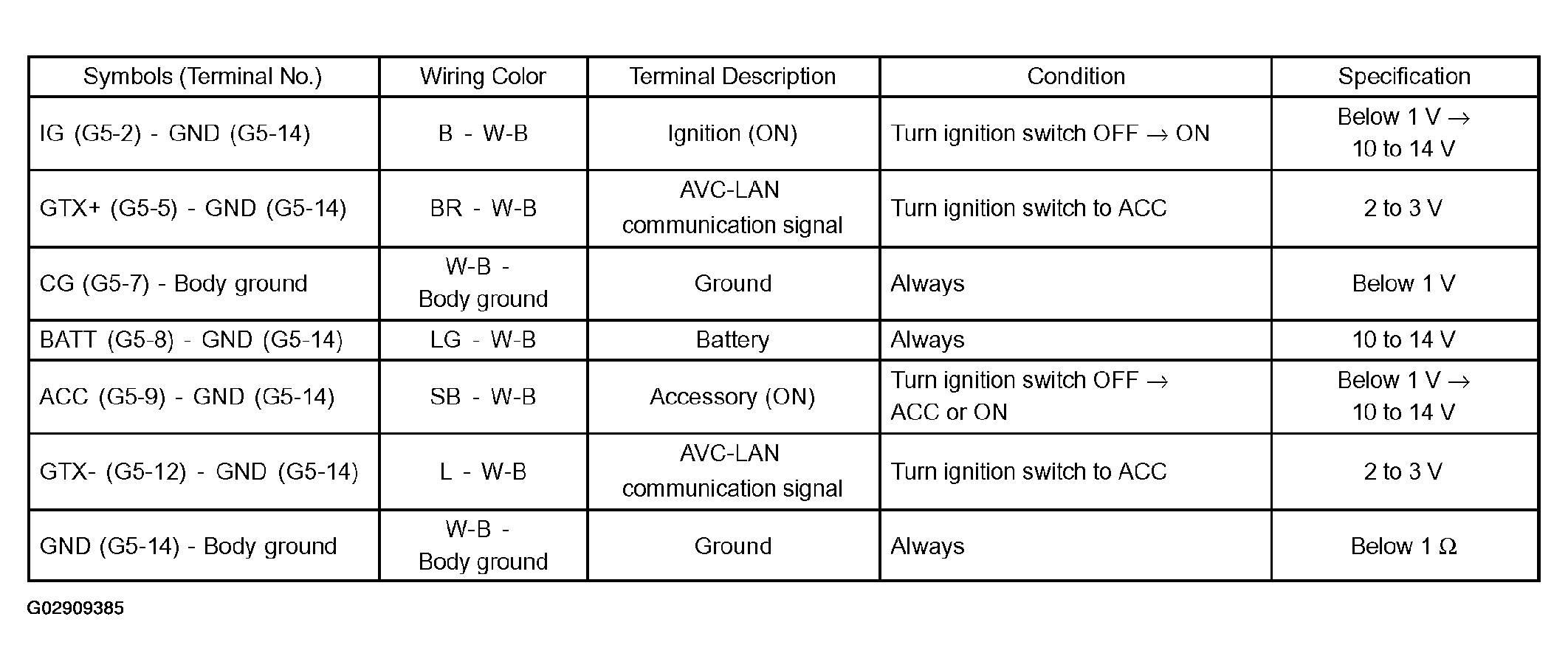

Fig 10: Terminals Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
