Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT GATEWAY ECU (BATT, ACC, IG, GND, CG)

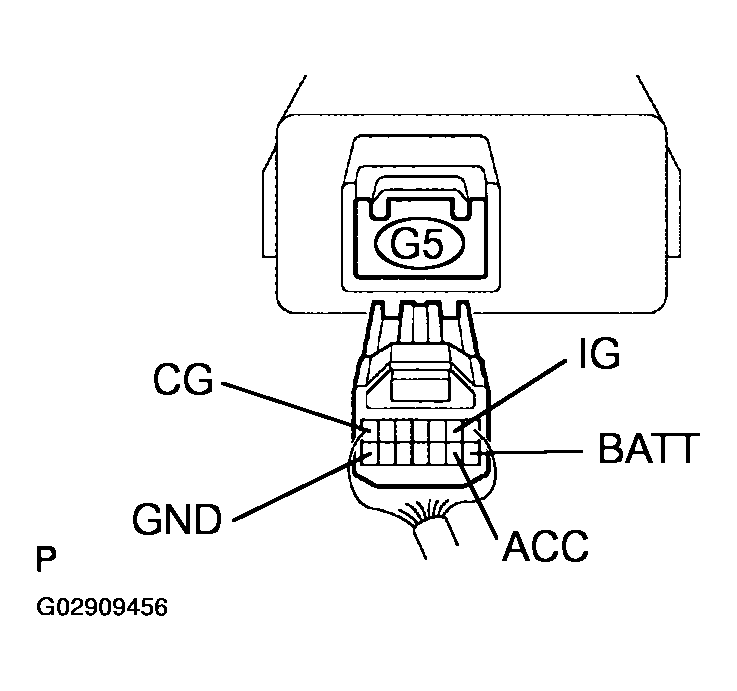

- Disconnect the gateway ECU connector G5.
- Measure the resistance according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition GND - Body ground Always Below 1 Ω CG - Body ground Always Below 1 Ω - Measure the voltage according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition BATT - GND or CG Always 10 to 14 V ACC - GND or CG Ignition SW ACC 10 to 14 V IG - GND or CG Ignition SW ON 10 to 14 V
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART (See DIAGNOSTIC TROUBLE CODE CHART )
