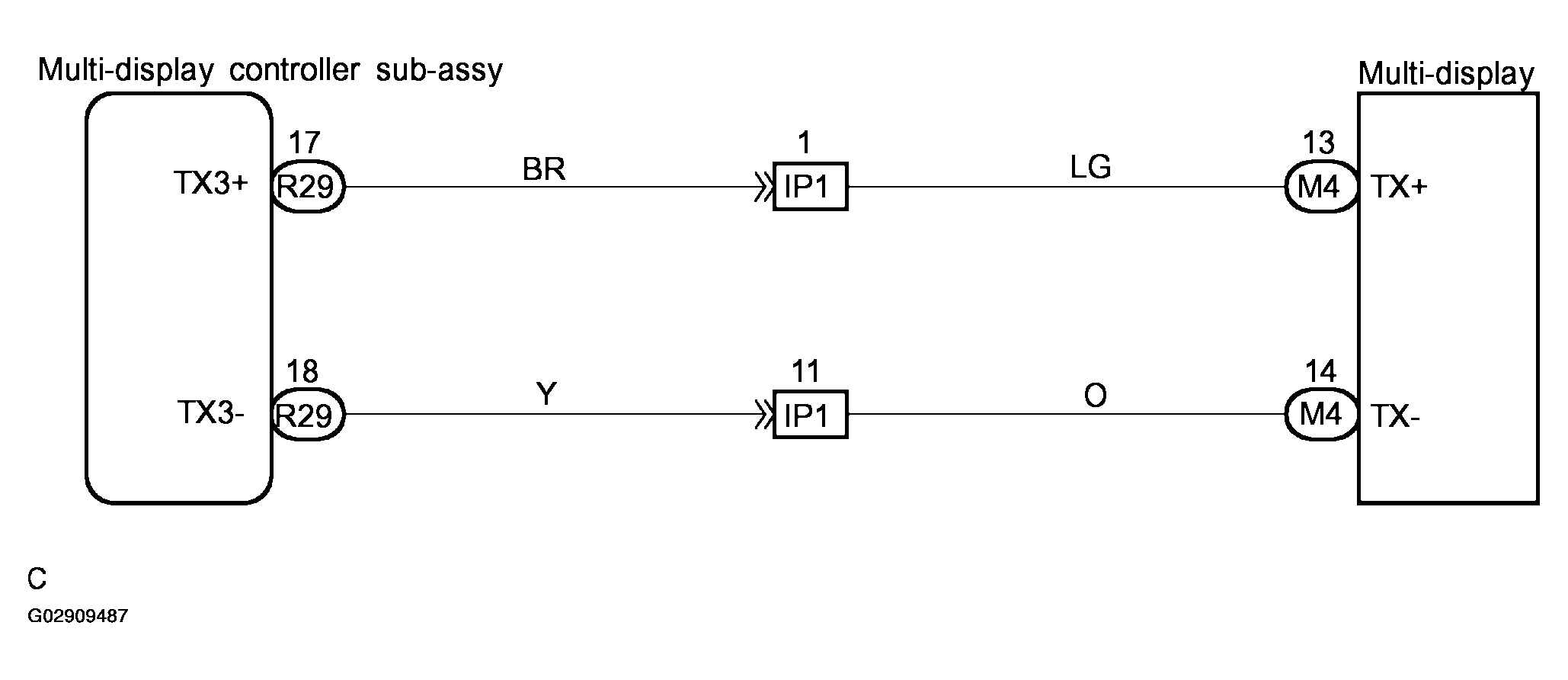

AVC-LAN Circuit (Multi-Display Controller Sub-ASSY - Multi-Display): Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
