Wireless Door Lock Control System: Location

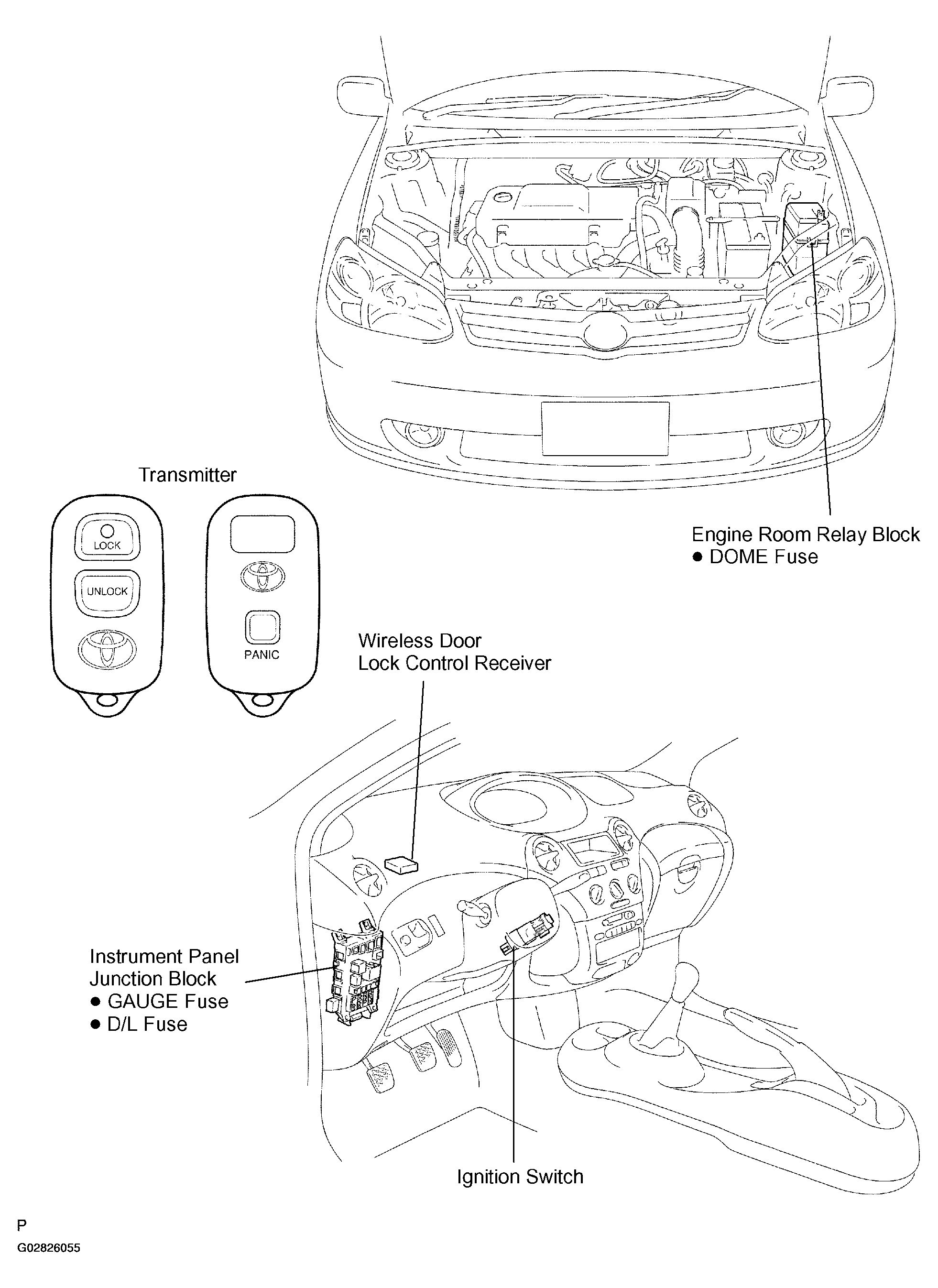

Fig 1: Wireless Door Lock Control System Components
G02826055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

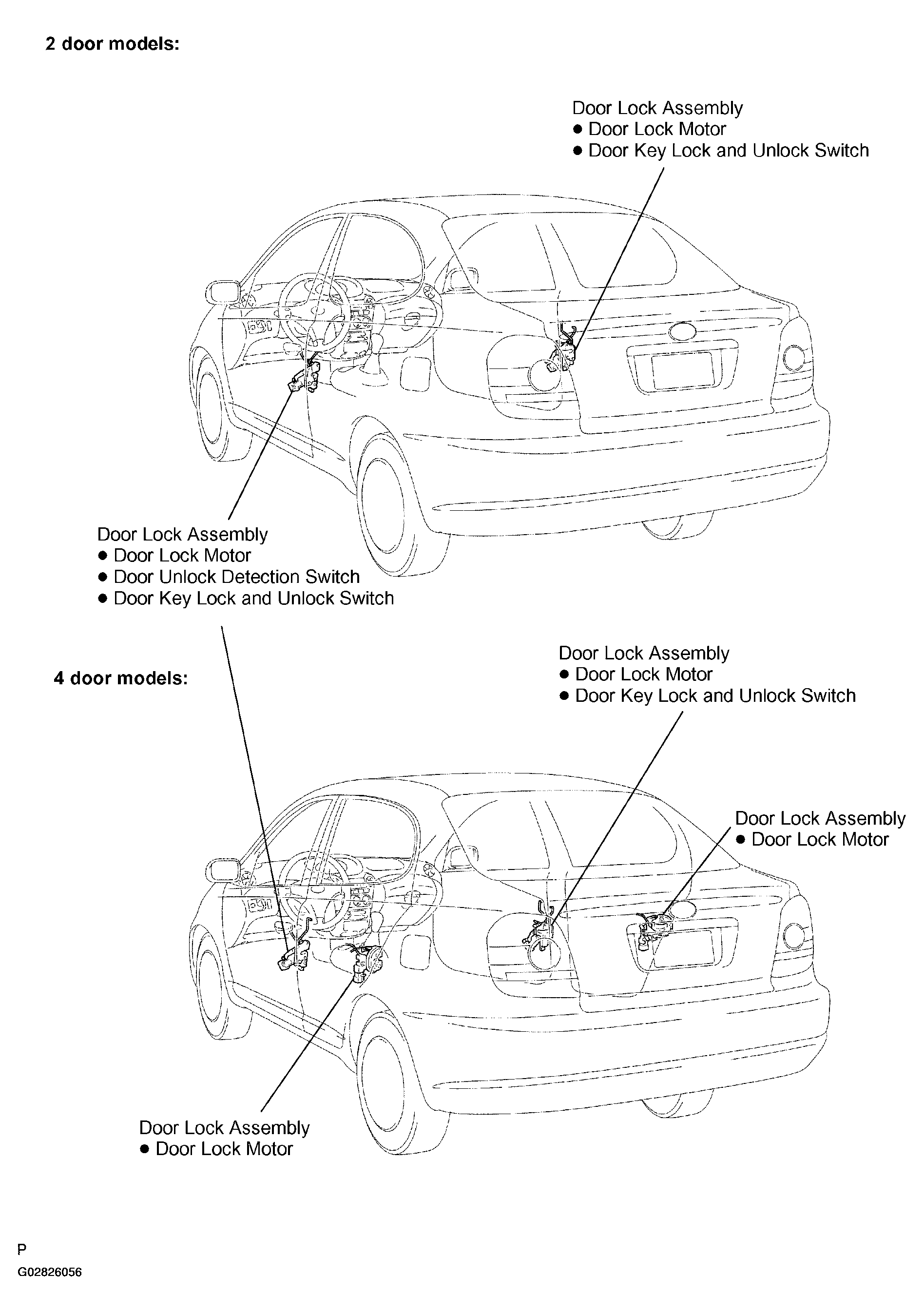

Fig 2: Wireless Door Lock Control System Components
G02826056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
