Repair and Diagnosis: Electrical: Gauges: Clock: Troubleshooting

HINT:

Troubleshoot the clock according to the table below.

+/- 1.5 seconds / day

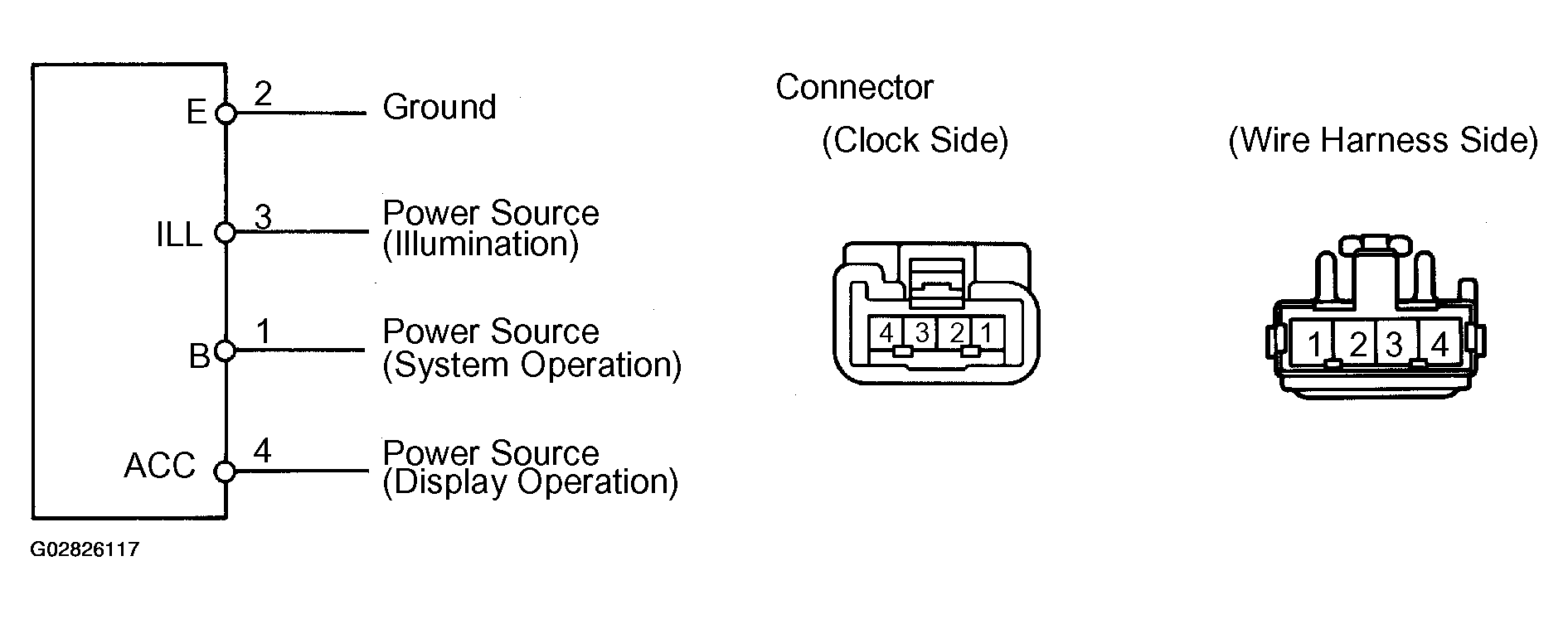

Fig 1: Locating Wiring Diagram Of Clock Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. CLOCK WILL NOT OPERATE
   1. Check that the battery positive voltage is 10 - 14 V. If voltage is not as specified, replace the battery.
   2. Check that the DOME fuse is not blown.

      If the fuse is blown, replace the fuse and check for short circuit.

   3. Troubleshoot the clock as follows.

   HINT:

   Inspect the connector on the wire harness side.

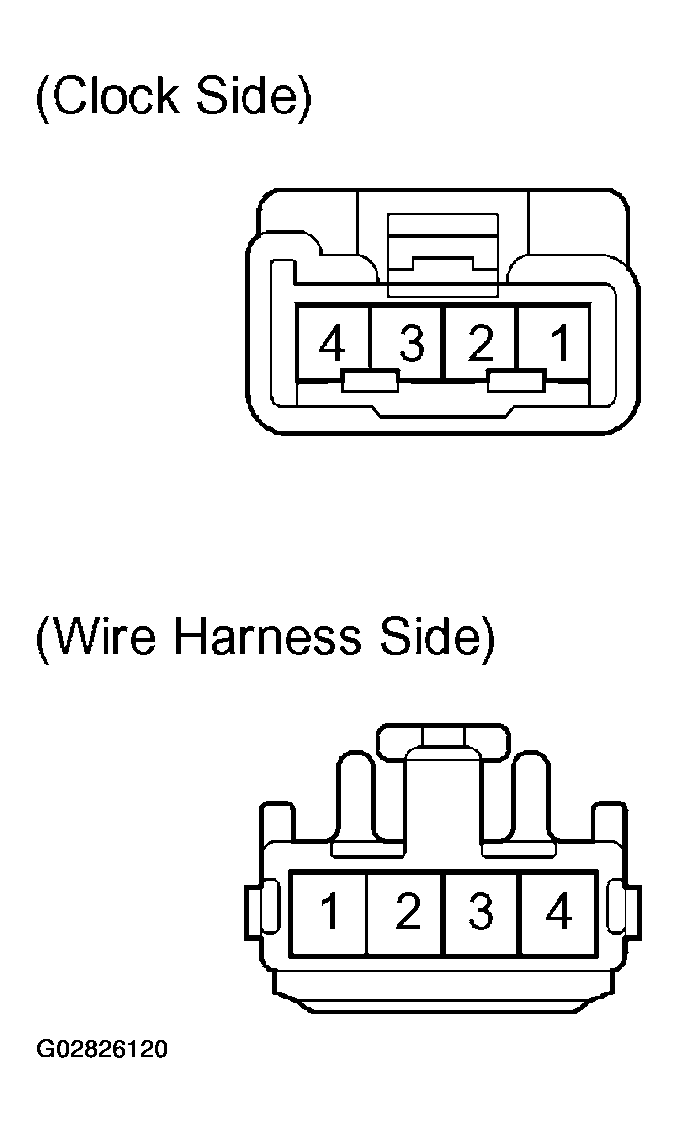

   Fig 2: Locating Connector Clock Side And Wire Harness Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

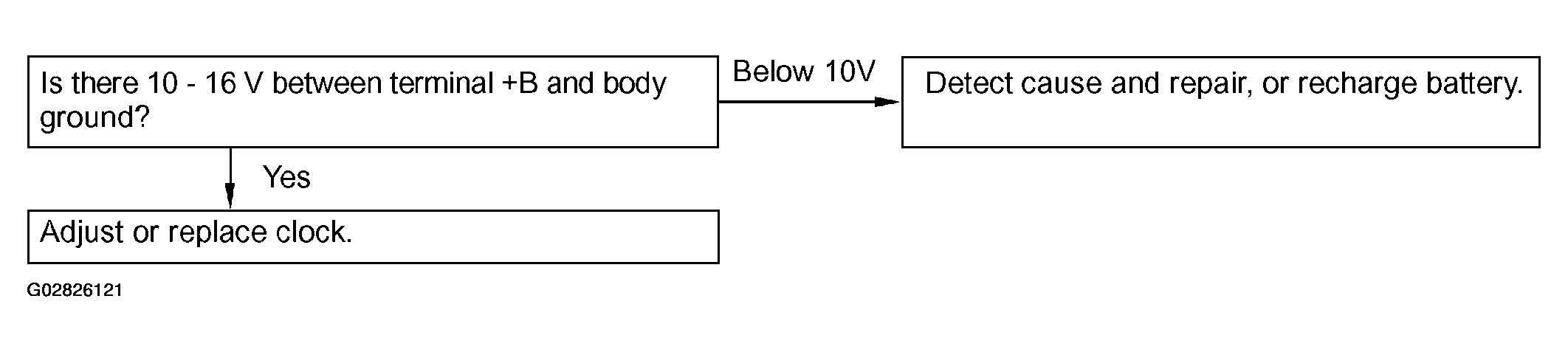

   Fig 3: Connector On Wire Harness Side Inspection Procedure

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. CLOCK LOSES OR GAINS TIME
   1. Check that the battery positive voltage is 10-16 V.

      If voltage is not as specified, replace the battery.

   2. Inspect the error of the clock.

      Allowable error (per day): +/- 1.5 sec.

      If the error exceeds the allowable error, replace the clock.

   3. Check that the clock adjusting button is caught in position, and does not return.

      If the button is not returned, repair or replace the clock.

   4. Troubleshoot the clock as follows.

   HINT:

   Inspect the connector on the wire harness side.

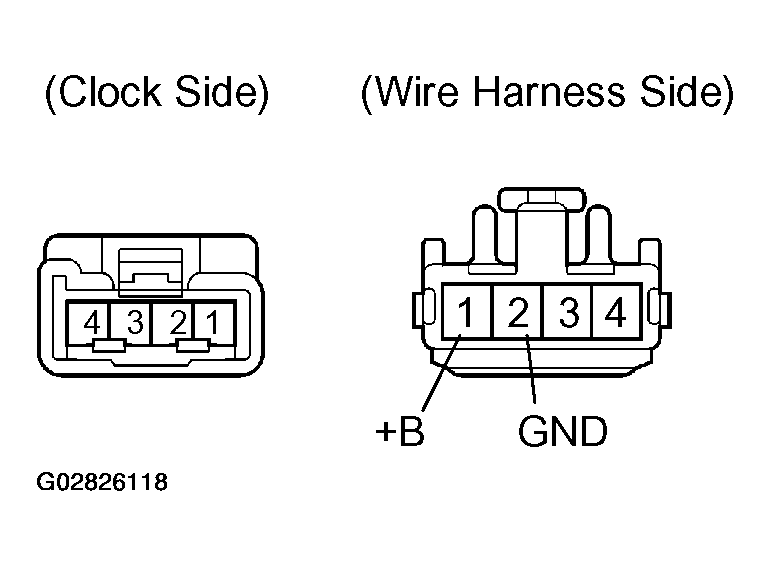

   Fig 4: Locating Connector Pinout Clock Side And Wire Harness Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

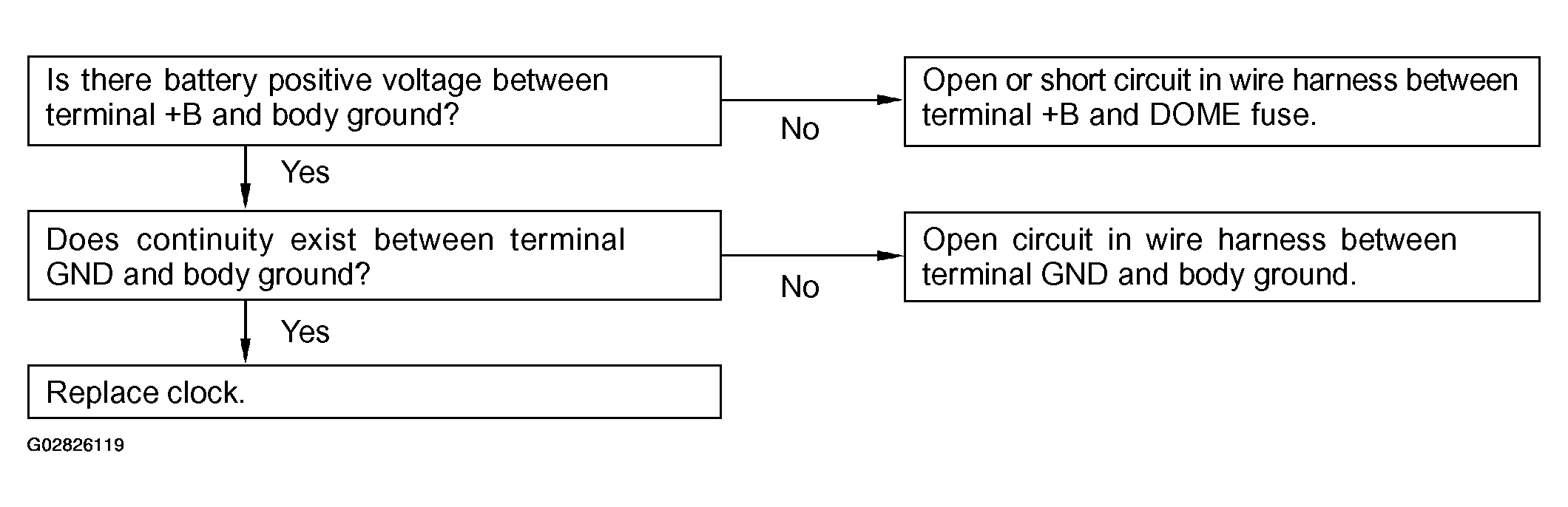

   Fig 5: Connector On Wire Harness Side Inspection Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
