Home >> Toyota >> 2003 >> ECHO 4D Sedan, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield >> Components

Body & Frame: Windows: Windshield: Components

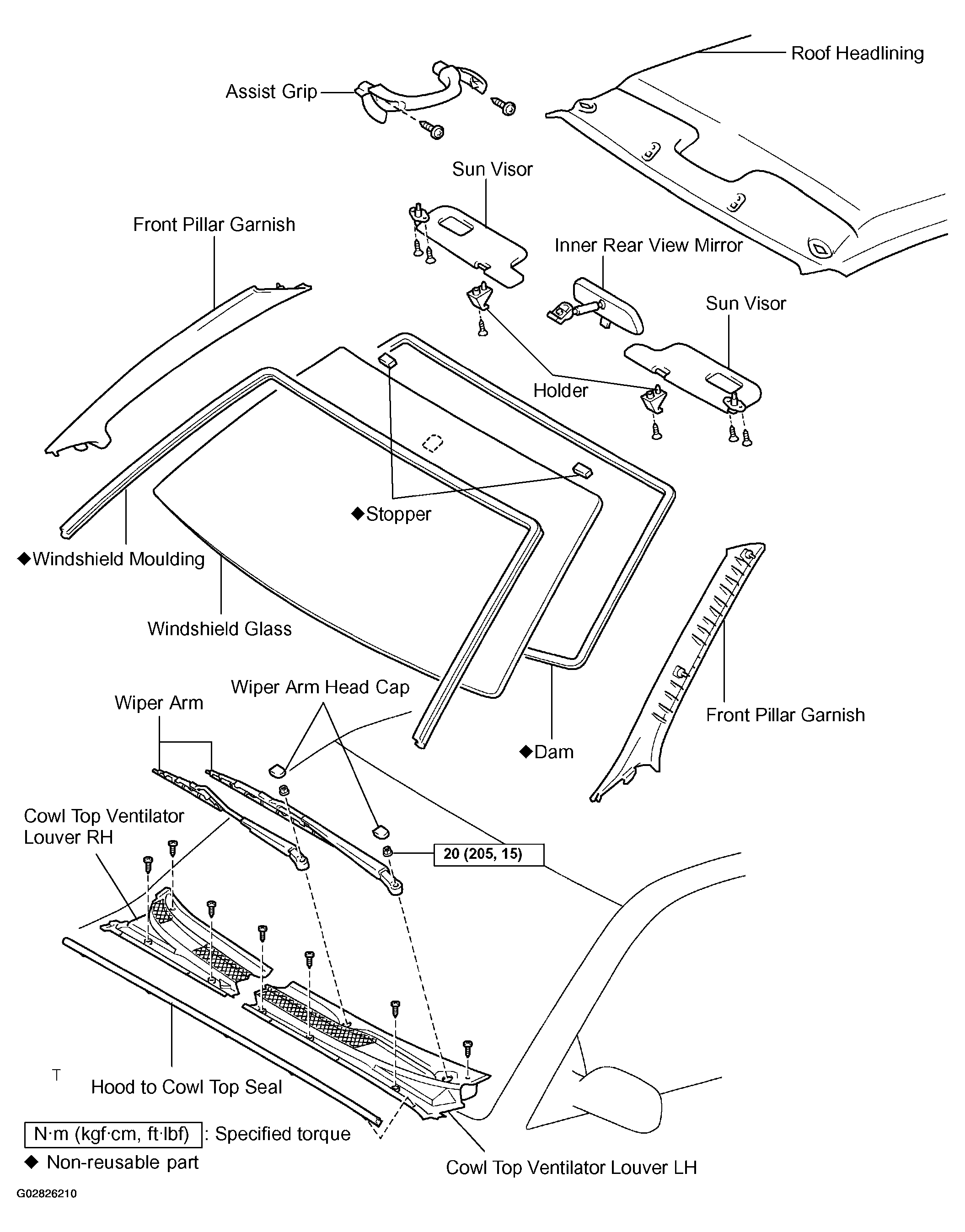

Fig 1: Windshield Components

G02826210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
